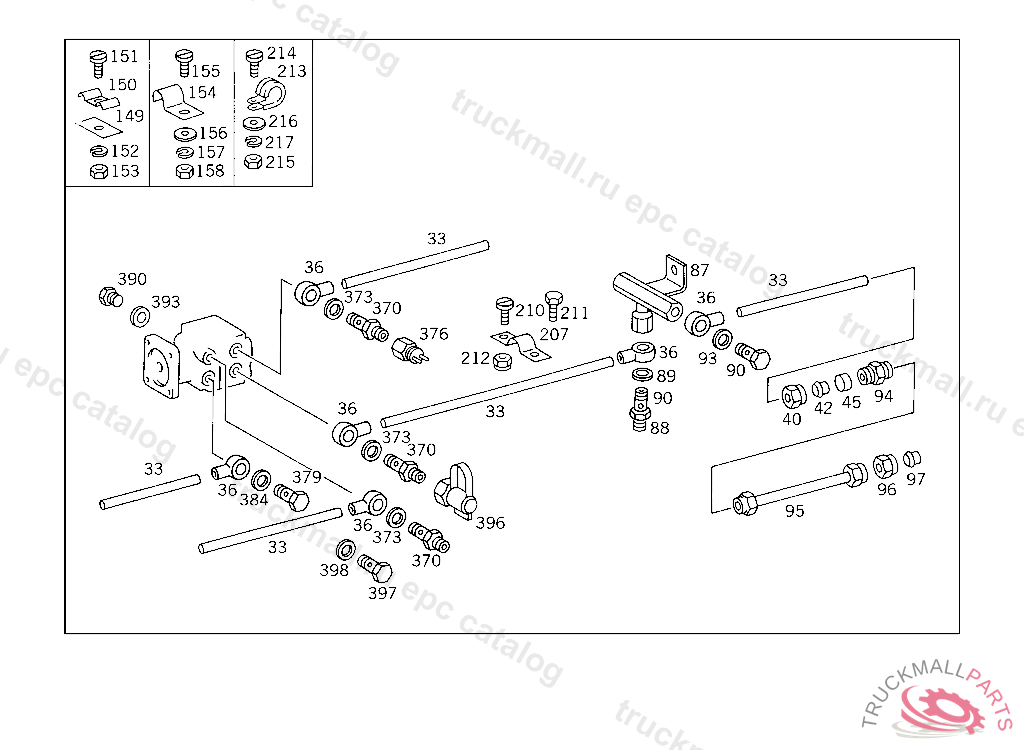

Поз.
Артикул
Описание
33
HOSE , Replaced By: A0009872827
33
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
36
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
40
UNION NUT LINE CONNECTION, Replaced By: N000000006239
42
GLAND , Replaced By: A0019901967
45
SLEEVE LINE CONNECTION
87
T-FITTING ,A 069205
88
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
89
SEAL RINGTO 006 997 00 72
90
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
93
SEAL RINGTO 006 997 00 72
94
CONNECTION FITTING , Replaced By: A0049971772
94
FITTING , Replaced By: A0029906171
95
LINE FROM DOUBLE FITTING TO BULKHEAD FITTING
96
UNION NUT LINE CONNECTION, Replaced By: N000000006239
97
GLAND , Replaced By: A0019901967
149
PLATE
150
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
151
SCREW BRAKE LINE TO SIDE AND CROSS MEMBERS M 5X10
152
LOCK WASHER LINE MOUNTING
153
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
154
CLAMP , Replaced By: A1109950401
155
SCREW PROTECTION PLATE TO BRACKET
156
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
157
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
158
NUT BALL PIVOT TO LEVER
207
CLAMP 3/2-WAY SOLENOID VALVE
210
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
211
SCREW , Replaced By: N304017006016
212
NUT , Replaced By: N913004006001
213
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
214
SCREW COMPRESSED AIR LINE TO SIDE MEMBER
215
NUT BALL PIVOT TO LEVER
216
WASHER A 6,4 DIN 9021. WASHER OIL LINE TO BRACKET,K 093236
217
LOCK WASHER CLAMP TO BRACKET
370
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
370
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
373
SEAL RINGTO 006 997 00 72
373
SEAL RINGTO 006 997 00 72
376
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
379
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
384
SEAL RINGTO 006 997 00 72
390
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
393
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
396
TEST CONNECTION
396
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
397
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
398
SEAL RINGTO 006 997 00 72
999
HOLLOW SCREW LINE TO OIL RADIATOR
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SCREW , Replaced By: N304017008034
999
ELBOW FITTING DISTRIBUTOR,CONNECTION: "3"
999
T-FITTING RELAY VALVE,CONNECTION "1",A 072935
999
LINE FROM PRESSURE REGULATOR TO FITTING, NOT USED
999
BRACKET RIGHT,DIAPHRAGM CYLINDER
999
BRACKET LEFT,DIAPHRAGM CYLINDER
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
HANDLETO 345 430 75 81
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
PINTO 345 430 75 81
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
