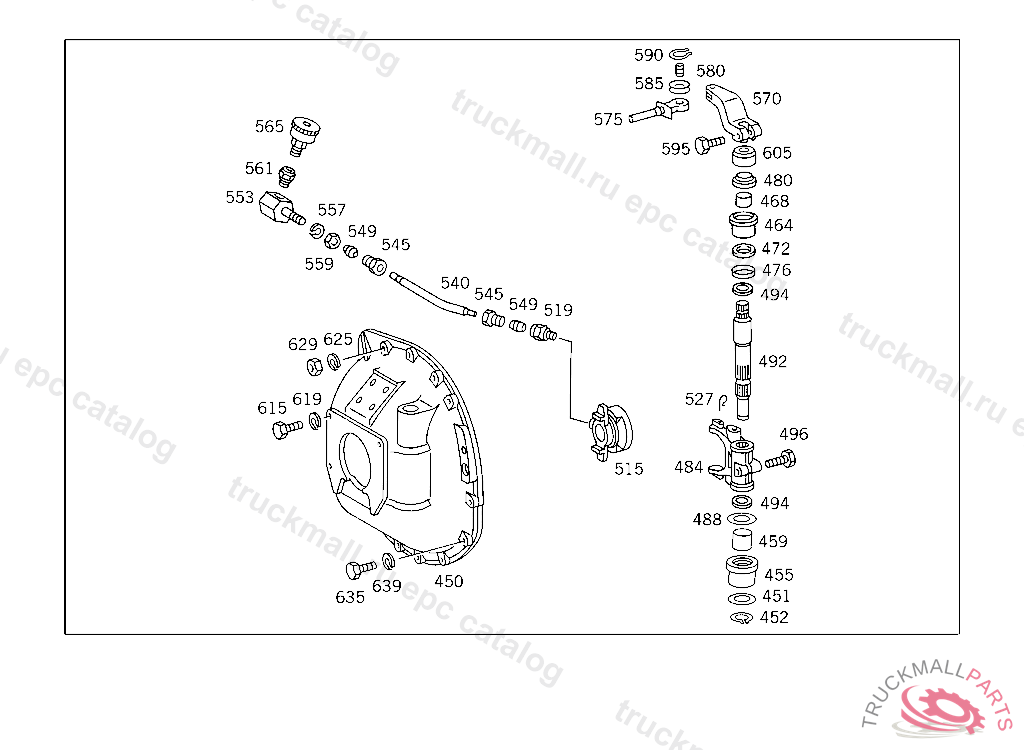

Поз.
Артикул
Описание
450
HOUSING
451
SPACER WASHER RELEASE SHAFT,BOTTOM
452
LOCK RING RELEASE YOKE TO SHAFT
455
BUSHING RELEASE SHAFT,BOTTOM
459
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
464
BUSHING RELEASE SHAFT,TOP
468
BUSHING RELEASE SHAFT,TOP 35X39 MM
472
SEAL RING RELEASE SHAFT,TOP
476
COVER PLATE RELEASE SHAFT,TOP
480
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
484
RELEASE YOKE
488
WASHER AS REQUIRED 1.00 MM
492
SHAFT
494
FELT RING
496
SCREW BRACKET TO TRANSMISSION,D 203092
515
RELEASE BEARING
519
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
527
SPRING RELEASE BEARING TO RELEASE LEVER
540
HOSE RELEASE BEARING LUBRICATION
540
HOSE RELEASE BEARING LUBRICATION
540
HOSE RELEASE BEARING LUBRICATION
545
UNION SCREW RELEASE COLLAR LUBRICATION
549
DOUBLE TAPER RING RELEASE BEARING LUBRICATION
553
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
557
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
559
NUT JOINT TO CONNECTOR
561
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
565
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
570
LEVER CLUTCH ACTUATION,B 988950
575
ROD END CLUTCH ACTUATION,C 066820
580
PIN CLUTCH ACTUATION
585
SEAL RING CLUTCH ACTUATION
590
LOCK RINGTO 000 553 37 01,000 553 39 01,
595
SCREW (ARTICULATED ROD)
605
COVER LEVER TO RELEASE SHAFT,B 988950
615
SCREW BELL HOUSING TO TRANSMISSION
619
LOCK WASHER BELL HOUSING TO TRANSMISSION
625
LOCK WASHERROCKINGER TYP 59 G140,59 G150
629
NUT SPRING SEAT AND BEARING BRACKET TO REAR AXLE
635
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
639
LOCK WASHER FITTING TO BRACKET
999
REPAIR KIT MINOR
999
RODTO A 000 295 21 18
999
PISTONTO A 000 295 21 18
