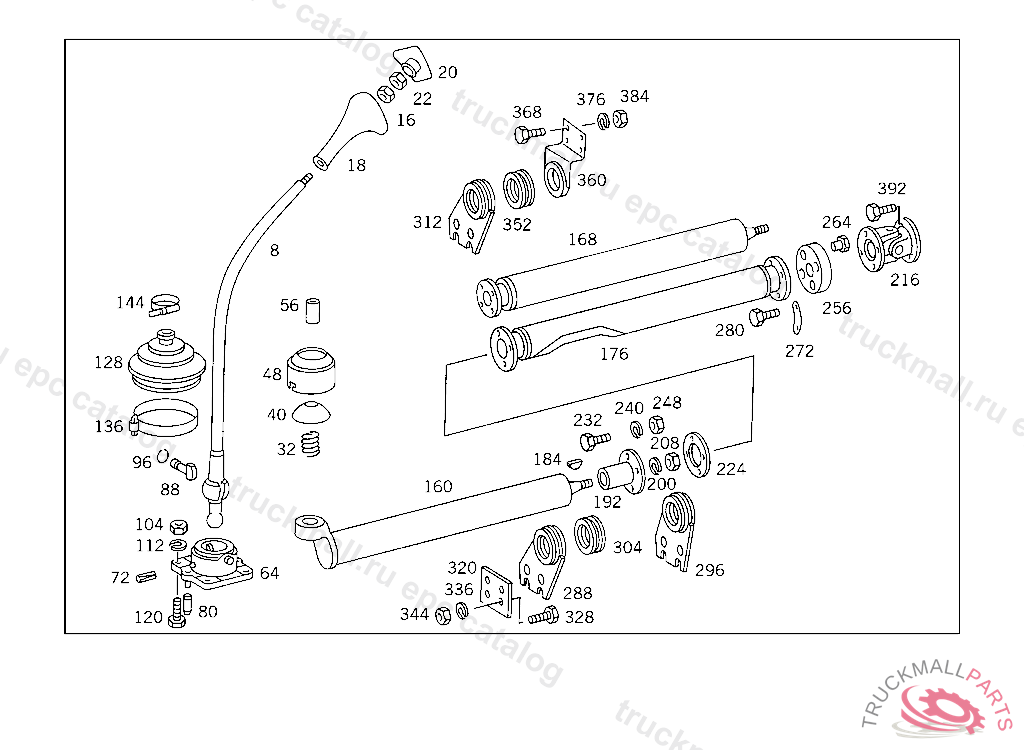

Поз.
Артикул
Описание
8
SHIFT LEVER
16
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
18
KNOB
18
SHIFT LEVER KNOB
20
COVER 6-SPEED,SHIFT LEVER KNOB
22
HEX. NUT. NUT SHIFT LEVER KNOB
32
SPRING SHIFT CASE,BOTTOM
40
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
48
COVER
48
COVER SHIFTING DOME TO TRANSMISSION CASE,TOP
56
HOSE
64
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
72
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
80
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
88
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
88
SLIDING BLOCK
96
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
104
NUT , Replaced By: N913004008001
112
LOCK WASHER
120
SCREW COMPRESSED AIR ELBOW
160
SHIFTING ROD FRONT
168
SHIFTING ROD CENTRAL
176
SHIFTING ROD REAR
184
WOODRUFF KEY STEERING WHEEL TO STEERING COLUMN
192
CONNECTOR FLANGE TO SHIFTING TUBE
200
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
208
NUT FUEL TANK TO CONSOLE
216
JOINT REAR SHIFTING ROD
216
JOINT REAR SHIFTING ROD
224
SPACER WASHER5 MM
224
SPACER WASHER2 MM
224
SPACER WASHER3 MM
232
SCREW SHIFTING TUBE TO TRANSMISSION
240
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
248
NUT LEVER TO SHIFTING SHAFT
256
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
264
BUSHING
272
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
280
SCREW SHIFTING ROD TO TRANSMISSION
288
GUIDE SHIFTING TUBE NO.I
296
GUIDE SHIFTING TUBE NO.III
296
GUIDE SHIFTING TUBE NO.II
304
BUSHING
312
GUIDE SHIFTING TUBE NO.II
320
BRACKET SHIFTING TUBE
328
SCREW , Replaced By: N304017008027
328
HEX. HEAD. SCREW ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
336
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
344
NUT TAIL LAMP TO BRACKET
352
BUSHING
360
BRACKET SHIFTING TUBE
368
SCREW COLD START SYSTEM TO BRACKET
376
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
384
NUT TAIL LAMP TO BRACKET
999
BOOT
