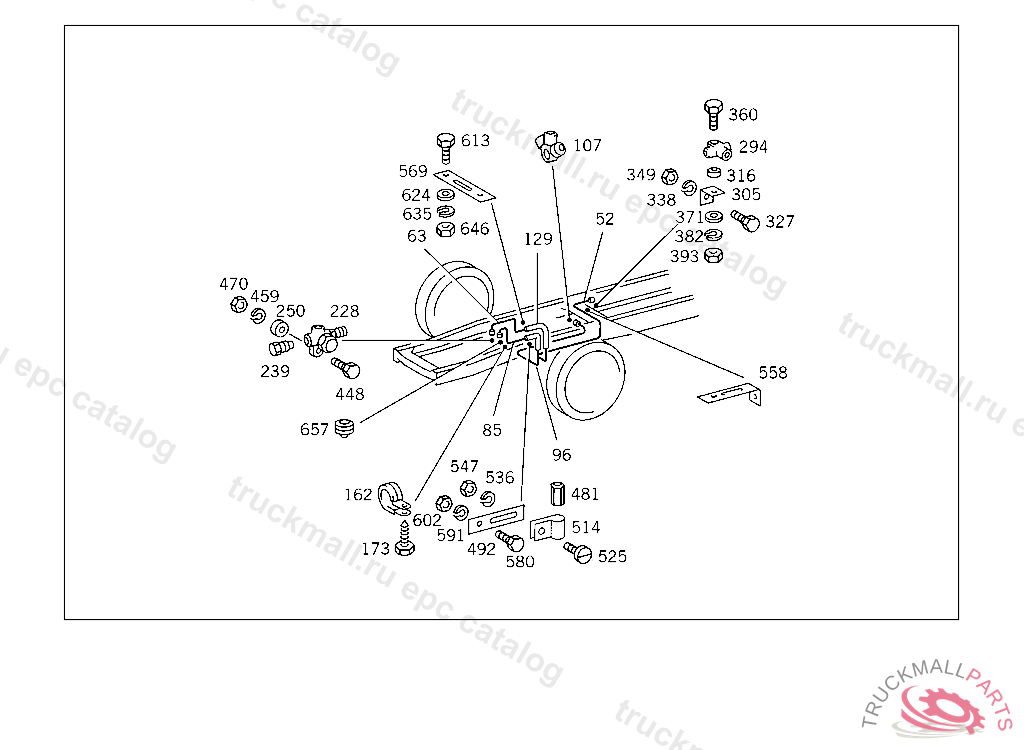

Поз.
Артикул
Описание
52
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
52
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
52
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 650 MM
52
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 650 MM
63
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
63
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
85
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 700 MM,4 644237
85
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 650 MM
96
LINE
96
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
96
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 1700 MM,4 478329
107
DISTRIBUTOR MASTER CYLINDER,CONNECTION "2"
129
BRAKE HOSE BETWEEN THE LINES
129
BRAKE HOSE BETWEEN THE LINES
129
BRAKE HOSE BETWEEN THE LINES
162
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
162
CLAMP ,K 147121, Replaced By: N000000000319
162
CLAMP , Replaced By: N916016008200
173
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
173
SHEET METAL SCREW , Replaced By: N914031005208
228
TEST CONNECTION
228
TEST CONNECTION
239
SCREW PLUG CONNECTION "1","2",4 478330
250
SPACER TUBE TEST CONNECTION TO SIDE MEMBER, 734559-815770
250
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
250
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
250
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
294
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
294
DISTRIBUTOR REAR AXLE,4 478330
305
BRACKET DISTRIBUTOR TO BRACKET, 815770
305
BRACKET DISTRIBUTOR TO BRACKET, 815770
316
SPACER TUBE DISTRIBUTOR TO FRAME SIDE MEMBER, 815770
316
SPACER TUBE , Replaced By: A4082910153
316
SPACER TUBE
316
SPACER TUBE
327
SCREW , Replaced By: N304017008027
327
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
327
SCREW , Replaced By: N000933008134
327
SCREW FRONT AXLE REGULATING SOLENOID VALVE
327
SCREW , Replaced By: N304017008018
327
SCREW SUPPORT TO FENDER
327
SCREW BRACKET TO SIDE MEMBER, 815770
327
SCREW VALVE TO BRACKET
327
SCREW VALVE TO BRACKET
338
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
338
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
338
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
349
NUT
349
NUT
349
NUT
360
SCREW CONNECTOR
360
SCREW CONNECTOR
371
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
371
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
382
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
382
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
393
NUT BALL PIVOT TO LEVER
393
NUT BALL PIVOT TO LEVER
448
SCREW , Replaced By: N304017008016
448
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
448
SCREW , Replaced By: N304017008018
448
SCREW SUPPORT TO FENDER
448
SCREW BUFFER TO BRACKET M 8X30
448
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
459
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
470
NUT
481
CONNECTOR , Replaced By: A0004292736
481
CONNECTOR OIL DELIVERY LINE
481
CONNECTOR OIL DELIVERY LINE
492
BRACKET CONNECTOR, UP TO CHASSIS 734559
492
BRACKET CONNECTOR, UP TO CHASSIS 734559
514
CLAMP FEED LINE TO THERMOSTAT
525
SCREW PROTECTION PLATE TO BRACKET
536
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
547
NUT BALL PIVOT TO LEVER
558
BRACKET , Replaced By: A3184280240
558
BRACKET LINE MOUNTING
558
BRACKET LINE MOUNTING
569
BRACKET OIL LINE MOUNTING
580
SCREW , Replaced By: N304017008034
580
SCREW BRACKET TO CROSS CONNECTION STRUT
591
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
602
NUT
613
SCREW PUMP TO BRACKET M 6X20
613
SCREW , Replaced By: N304017006016
613
SCREW PUMP TO BRACKET
624
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
635
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
635
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
646
NUT BALL PIVOT TO LEVER
646
NUT BALL PIVOT TO LEVER
657
GROMMET BRAKE LINE THRU CAB FLOOR
