Поз.
Артикул
Описание

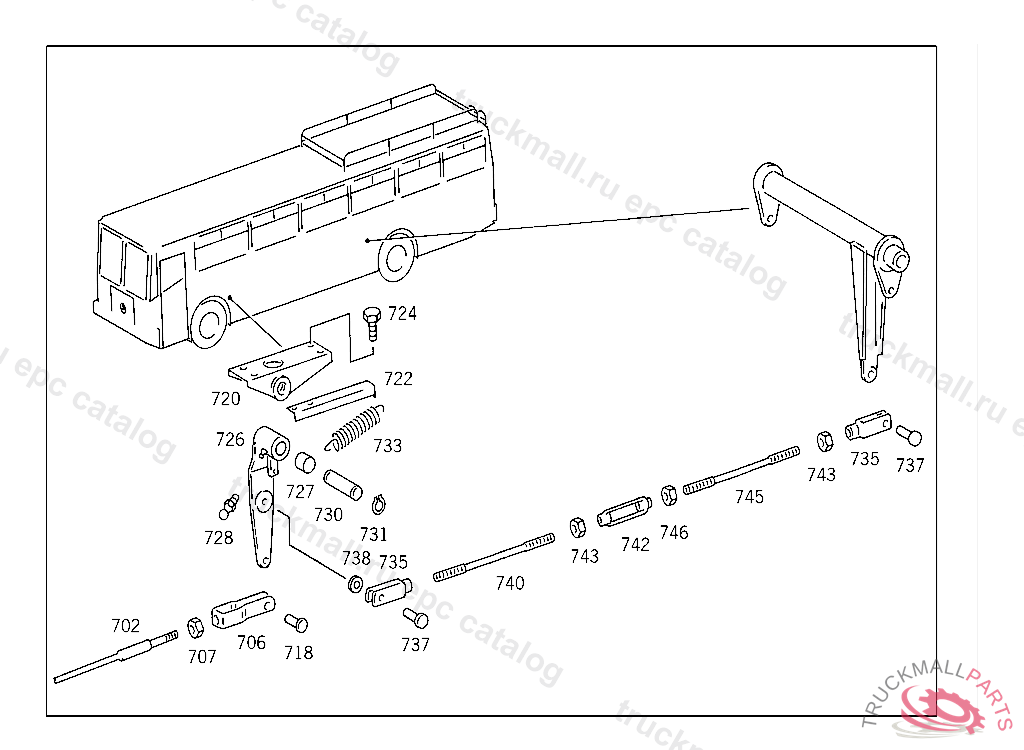

706
END PIECE
707
NUT BATTERY CABLE
707
NUT BRACKET TO SUPPORT AND TO END PIECE
718
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
720
BEARING BRACKET
722
BRACKET INTERMEDIATE LEVER
724
SCREW END PIECE TO EXHAUST PIPE M 10X25
726
LEVER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
727
BUSHING LEVER
728
GREASE NIPPLE PROTECTIVE TUBE
730
PIN
731
LOCK RING22X1.2,TO 001 431 71 14
733
SPRING LEVER
735
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
737
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
738
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
738
WASHER , Replaced By: N000433013010
742
NUT FROM BRAKE SHAFT TO BRAKE LEVER
742
TURNBUCKLE , Replaced By: A3859960034
743
NUT STRAP TO SUPPORT,5 149419
745
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
746
NUT PULL ROD
999
SCREW PLUG , Replaced By: A0004315433
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP , Replaced By: A3454237020
999
PROTECTIVE CAP ,5 962906
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
THRUST PINTEVES
999
THRUST PIN SEE FIG. NO.: 080,FB330168
999
CUP , UP TO IDENT NO 910369 EXCEPT FOR 501415-599999,FROM IDENT NO 910370 ALSO INSTALLED ON 501415-599999,SEE 744.4 UNIT SPARE PARTSLIST
999
PISTON , UP TO IDENT NO 910369 EXCEPT FOR 501415-599999,FROM IDENT NO 910370 ALSO INSTALLED ON 501415-599999,SEE 744.4 UNIT SPARE PARTSLIST
999
PROTECTIVE CAP , Replaced By: A3454237087
999
SPRING , UP TO IDENT NO 910369 EXCEPT FOR 501415-599999,FROM IDENT NO 910370 ALSO INSTALLED ON 501415-599999,SEE 744.4 UNIT SPARE PARTSLIST
999
BRACKET. LOCK , Replaced By: A6525040038
999
DIAPHRAGMTO 344 429 73 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
DISTRIBUTOR ,4 342862
999
VALVE
999
VALVE
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
PISTON REPAIR KIT TO 002 430 88 01,002 430 82 01
999
REPAIR KITTO 003 429 02 44
999
REPAIR KIT SEAL RING BOSCH,209
999
BANJO UNIONKUGELFISCHER
999
ANSCHLUSSSTUCK. THREADED UNION
999
SLIDETO 000 431 50 14,000 431 24 14
999
FILTER BOTTOMTO 000 431 24 14
999
GASKETTO 000 431 77 14,KNORR
999
SCREW PLUG , TO TANDEM BRAKE MASTER CYLINDERS 002 430 89 01
999
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
999
PROTECTIVE CAP VALVE, 674067
999
CUP , Replaced By: A0004319186
999
CUP , Replaced By: A0015864342
999
PISTONTO 000 431 21 14,BOSCH
999
PROTECTIVE CAPTO 000 431 24 14
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RINGTO 002 430 69 01
999
CUP , WITH BOSCH CHARACTERISTIC NUMBER 723, Replaced By: A0004312786, +001A0004318583
999
SEAL RINGTO 002 430 72 01,SCHAEFER
999
SEAL RINGTO 002 430 69 01
999
CUPTO 000 431 76 14
999
CUPTO 000 431 77 14,KNORR
999
VALVE , Replaced By: A0004320807
999
REPAIR KIT WHEEL CYLINDER
999
REPAIR KIT , Replaced By: A0004303083
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
RUBBER STRIP
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
HOLLOW SCREWKUGELFISCHER
999
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SPRINGTO 002 430 69 01
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
FITTING , Replaced By: A0019970172
999
SCREW. UNION SCREW LINE CONNECTION
999
VALVE (OVERFLOW VALVE) BOSCH
999
VALVE (OVERFLOW VALVE) GRAU
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
CUP , Replaced By: A0004312786
999
SEAL RINGTO 000 431 77 14,KNORR,4 415092
999
REPAIR KITTO 001 429 52 44
999
REPAIR KIT , Replaced By: A0004301107
999
FITTING , Replaced By: A0009970171
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
FITTING , Replaced By: N915059004001
999
FITTING , Replaced By: N915059004000
999
FITTING
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FITTING , TO TANDEM BRAKE MASTER CYLINDERS 002 430 88 01
999
WHEEL BRAKE CYLINDER , Replaced By: A0024207718
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207918
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207918
999
WHEEL BRAKE CYLINDER , Replaced By: A0034208018
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207818
999
WHEEL BRAKE CYLINDER , Replaced By: A3454207418
999
BRAKE HOSE600 MM
999
VALVE
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
BRAKE MASTER CYLINDER , UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
999
BRAKE MASTER CYLINDER , Replaced By: A0024308201
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KIT , FROM 626
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING
999
SEAL RING42X21.5 MM
999
FITTING AT DISTRIBUTOR,4 481289
999
SEAL RINGTO 000 431 24 14
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 000 431 77 14,KNORR
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
999
WASHER FRONT AXLE, NOT USED
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
BRAKE SHOE , Replaced By: A3024203319
999
BRAKE ANCHOR PLATE , Replaced By: A3024201316
999
THRUST SHACKLE , UP TO REAR AXLE029311, Replaced By: A3024201419, +001A3024230874, +001A3024940109, +001N000933008106, +001N912004008102
999
ADJUSTER , Replaced By: A3025860442
999
BRAKE ANCHOR PLATE ,796990, 10/20, 790758, 50/60
999
BRAKE ANCHOR PLATE , Replaced By: A3024204317
999
BRAKE ANCHOR PLATE , Replaced By: A3024204417
999
BRAKE SHOE LESS LINING,FB330168 WITH TWO-SPEED REAR AXLE USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185 UP TO CHASSIS FB588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIST 743.0
999
BRAKE ANCHOR PLATE RIGHT
999
REPAIR KIT BRAKE READJUSTMENT
999
BRAKE SHOE LESS LINING
999
BRAKE ANCHOR PLATE RIGHT
999
BRAKE ANCHOR PLATE LEFT
999
SPACER WASHER
999
ADJUSTING LEVER RIGHT
999
HEXAGONAL PIECE BRAKE ANCHOR PLATE TO REAR AXLE TUBE
999
BRAKE CAMSHAFT ,100570
999
REPAIR KIT , Replaced By: A3024203138
999
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
999
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
999
VALVE CLUTCH SLAVE CYLINDER
999
PAWL , Replaced By: A3145860142
999
RESERVOIR
999
PLATE , Replaced By: A3145860142
999
CONSOLE AT BRAKE CYLINDER, 674067
999
BRACKET POS. CABLE,XB209706
999
BRACKET LINE MOUNTING
999
BRAKE CABLE , 674067
999
CABLE PULLEY , Replaced By: A3224200293
999
SHIM RESERVOIR
999
RUBBER STRIP , Replaced By: A3604750020
999
CABLE PULLEY , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
PAWL , 656999
999
BRACKET , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
BRACKET BRAKE HOSE,REAR
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
999
STRAP AIR RESERVOIR TO CONSOLE
999
CONSOLE AIR RESERVOIR TO FRAME 20 L
999
CONSOLE AIR RESERVOIR TO SUPPORT
999
PLATE CONSOLE TO SIDE MEMBER
999
BRAKE SHOE , Replaced By: A3384200219
999
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN
999
BRAKE SHOE LESS LINING
999
BEARING BRACKET INTERMEDIATE LEVER TO BEARING BRACKET
999
LINE
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1",4 478495
999
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 1200 MM
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR 1650 MM, 734559
999
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR, 734559
999
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
999
LINE FROM CONNECTOR TO TEST CONNECTION 3400 MM,4 478330
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 4000 MM,4 478329
999
PIN
999
PIN
999
REPAIR KIT , Replaced By: A3585860242
999
SCREW , Replaced By: A3029900804
999
SCREW , Replaced By: A3029900204
999
PLATE ,5 317650
999
BRAKE SHOE , Replaced By: A3384200019, +002A3524230310, +016A3079900197
999
BRACKET
999
BRAKE SHOE , Replaced By: A3384200019, +002A3524230410, +016A3079900197
999
BRAKE SHOE , Replaced By: A3534200019, +002A3534232810, +016A3079900197
999
BRAKE INTERMEDIATE SHAFT , Replaced By: A3524201080
999
BRAKE CABLE , 674067
999
RATCHET ROD , 602849
999
BEARING BRACKET , 600704
999
BRAKE INTERMEDIATE SHAFT REAR
999
BRAKE LEVER , 602849 UP TO CHASSIS 600703 RANGE OF DELIVERY INCLUDES: 1X352 427 08 41
999
ROD , Replaced By: A3604200474, +001A3604200774, +001A3859960034, +001N000934012000, +001N000934012002
999
BRACKET , 674067
999
BRACKET , 674067
999
BRACKET , 656999
999
LEVER , Replaced By: A3604260711
999
STOP , 000134
999
BRACKET INTERMEDIATE LEVER
999
PIN
999
LINE , Replaced By: A0004290401
999
LINE , Replaced By: A0004290401
