Поз.
Артикул
Описание

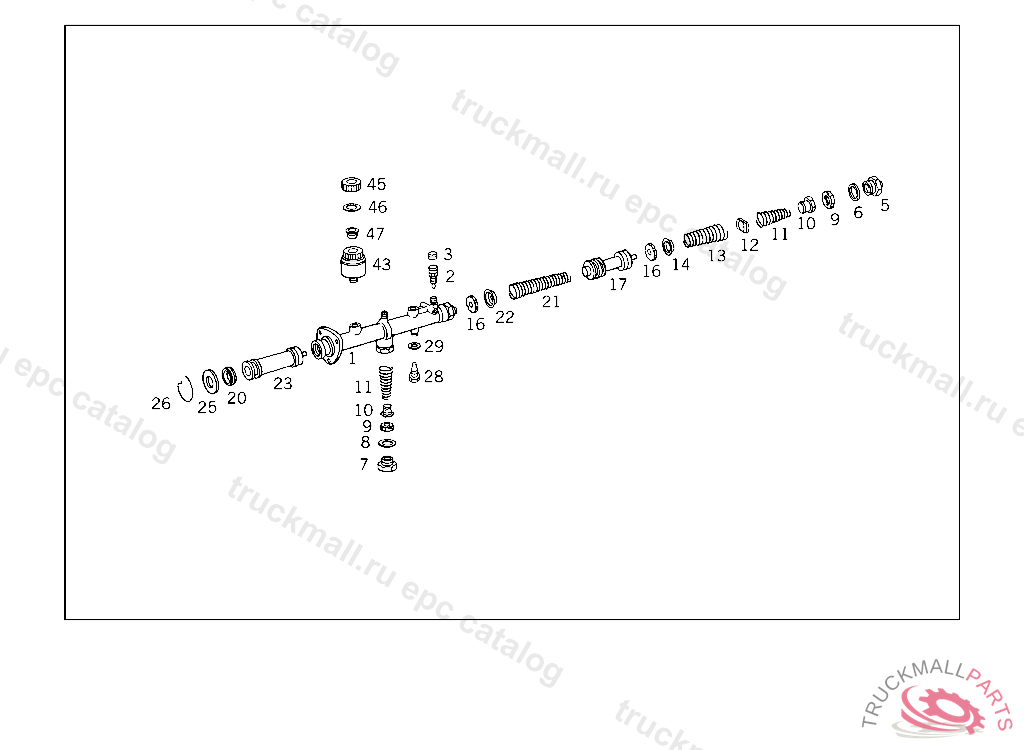

1
BRAKE MASTER CYLINDER
1
BRAKE MASTER CYLINDER (TANDEM BRAKE MASTER CYLINDER) TEVES, 734559
1
BRAKE MASTER CYLINDER , UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
2
VALVE CLUTCH SLAVE CYLINDER
2
VALVE CLUTCH SLAVE CYLINDER
2
VALVE , Replaced By: A3075530107
3
PROTECTIVE CAP ,5 962906
3
PROTECTIVE CAP ,5 962906
3
PROTECTIVE CAP , Replaced By: A0004217187
3
PROTECTIVE CAP , Replaced By: A0004210887
5
COVER. THREADED UNION
5
COVER. THREADED UNION
6
SEAL RINGTO 002 430 41 01
6
SEAL RINGTO 002 430 41 01
7
ANSCHLUSSSTUCK. THREADED UNION
7
ANSCHLUSSSTUCK. THREADED UNION
8
SEAL RING
8
SEAL RING
9
REPAIR KITTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
9
BOTTOM VALVE. VALVE , Replaced By: A0015861543
9
DICHTSCHEIBE. SEAL RING
10
REPAIR KITTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
10
REPAIR KITTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
10
BOTTOM VALVE. VALVE , Replaced By: A0015861543
10
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
11
SPRING
11
SPRING
12
WASHER BRAKE MASTER CYLINDER
12
WASHER BRAKE MASTER CYLINDER
13
SPRING BRAKE MASTER CYLINDER
13
SPRING BRAKE MASTER CYLINDER
13
SPRING BRAKE MASTER CYLINDER
14
SPRING RETAINER
16
CUP BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
16
CUP
16
CUP BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
17
PISTON BRAKE MASTER CYLINDER
17
PISTON
17
PISTON BRAKE MASTER CYLINDER
20
SEAL RING BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
20
SEAL RING
20
SEAL RING BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
21
SPRING BRAKE MASTER CYLINDER
21
SPRING
21
SPRING BRAKE MASTER CYLINDER
22
SPRING RETAINER
23
PISTON BRAKE MASTER CYLINDER
23
PISTON BRAKE MASTER CYLINDER
23
PISTON BRAKE MASTER CYLINDER
25
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
25
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
26
LOCK
26
LOCK
28
SCREW BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
28
SCREW BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
29
SEAL RING SCREW PLUG
29
SEAL RING SCREW PLUG
43
RESERVOIRTO 344 430 79 01
45
FILLER CAP BUTTRESS THREAD
45
FILLER CAP , Replaced By: A0004315433
45
FILLER CAP , Replaced By: A0004315133
46
SEAL RING42X21.5 MM
46
SEAL RING
47
STRAINER
47
STRAINER , Replaced By: A0004314334
999
SCREW PLUG , Replaced By: A0004315433
999
RESERVOIR , Replaced By: A0004311602
999
PISTON REPAIR KIT TO 002 430 88 01,002 430 82 01
999
STRAINERTO 002 430 31 01
999
WASHER , Replaced By: A0004311176
999
FILLER RING
999
SPRING RETAINER BRAKE MASTER CYLINDER
999
FILLER RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
FILLER CAPTO 000 431 16 02
999
INSTRUCTION PLATE IN GERMAN
999
REPAIR KIT (TANDEM BRAKE MASTER CYLINDER)
999
REPAIR KITTO 001 430 68 01,002 430 19 01
999
REPAIR KIT , Replaced By: A0004303083
999
BRAKE MASTER CYLINDER , Replaced By: A0024301901
999
HOSE
999
LINE , Replaced By: A3404203129
999
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 700 MM,4 644237
999
LINE
999
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1400 MM
999
LINE1450 MM
999
LINE FROM VALVE TO BRAKE HOSE 1500 MM
999
LINE FROM VALVE TO BRAKE HOSE 1600 MM
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR 1650 MM, 734559
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 1700 MM,4 478329
999
LINE1750 MM, UP TO IDENT NO. 721608 EXCEPT FOR:500001-599999
999
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
999
LINE FROM PRESSURE CONTROL VALVE TO FRONT AXLE BRAKE HOSE,LEFT
999
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR, 734559
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
999
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
999
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
999
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
999
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
999
LINE FROM CONNECTOR TO TEST CONNECTION 3400 MM,4 478330
999
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
999
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 4000 MM,4 478329
999
LINE FROM MASTER CYLINDER TO CONNECTOR 4400 MM
999
LINE FROM DISTRIBUTOR TO VALVE 4800 MM
999
LINE FROM DISTRIBUTOR TO VALVE 5000 MM
999
LINE FROM DISTRIBUTOR TO VALVE 5200 MM
999
LINE FROM DISTRIBUTOR TO CONTROL VALVE
999
LINE , LP1213/1313 UP TO CHASSIS601535,LP1216/1317 UP TO CHASSIS600774,LP810/911B UP TO CHASSIS601115,LP1013/1113 UP TO CHASSIS 60346 8
999
LINE FROM MASTER CYLINDER TO REAR AXLE, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
999
LINE FROM FLUID RESERVOIR TO CYLINDER 1400 MM, 845437
999
LINE , Replaced By: A3404202429
999
LINE
999
LINE
999
LINE
