Поз.
Артикул
Описание
2

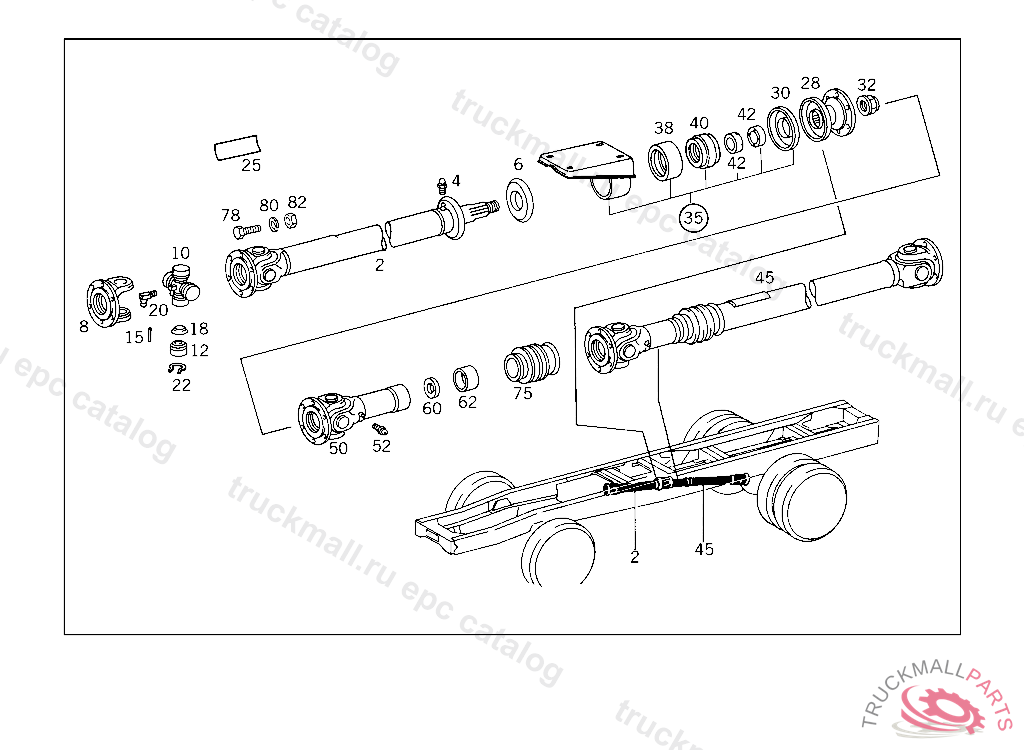

PROPELLER SHAFT FROM TRANSMISSION TO PROPELLER SHAFT BEARING 816 MM
4
GREASE NIPPLE , Replaced By: N071412008102
4
GREASE NIPPLE
6
PROTECTIVE CAP
8
DRIVE FLANGE
10
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
10
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
12
BEARING BUSHING , Replaced By: A3224100542
12
BEARING BUSHING
15
NEEDLE , Replaced By: A0009815087
15
NEEDLE , Replaced By: A3189810287
15
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
18
EXPANSION PLUG
20
GREASE NIPPLE
22
GREASE NIPPLE
22
SNAP RING2.550 MM
22
SNAP RING2.600 MM
22
SNAP RING2.650 MM
22
SNAP RING2.700 MM
22
SNAP RING2.750 MM
25
BALANCING PLATE AS REQUIRED 20 MM
28
CENTERING FLANGE PROPELLER SHAFT BEARING
30
PROTECTIVE CAP
32
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
35
BRACKET INTERMEDIATE SHAFT BEARING
35
REPAIR KIT , Replaced By: A3524100010
35
REPAIR KIT INTERMEDIATE SHAFT BEARING TO 318 410 03 01
38
RUBBER MOUNTING PROPELLER SHAFT BEARING
40
BALL BEARING PROPELLER SHAFT BEARING
42
BEARING RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
45
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE L1265 MM
50
UNIVERSAL JOINT YOKE
52
GREASE NIPPLE , Replaced By: N071412008102
52
GREASE NIPPLE
60
SEAL RING , PROPELLER SHAFT WITH BOOT
62
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
75
BOOT , Replaced By: A3524100080
75
BOOT
78
SCREW , Replaced By: A3539900001
78
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
82
NUT FROM PROPELLER SHAFT TO FRONT AXLE
999
BALL BEARING , Replaced By: A3524100051
999
SNAP RING2.500 MM
999
BRACKET , Replaced By: A3525860041
999
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE L1291 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
WIRE RING , WITH BOOT
999
BALL BEARING , Replaced By: A3524100051
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
LOOM TIE ALTERNATOR BREATHING
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
999
NUT BRACKET TO CROSS MEMBER
999
CLAMP , WITH BOOT
