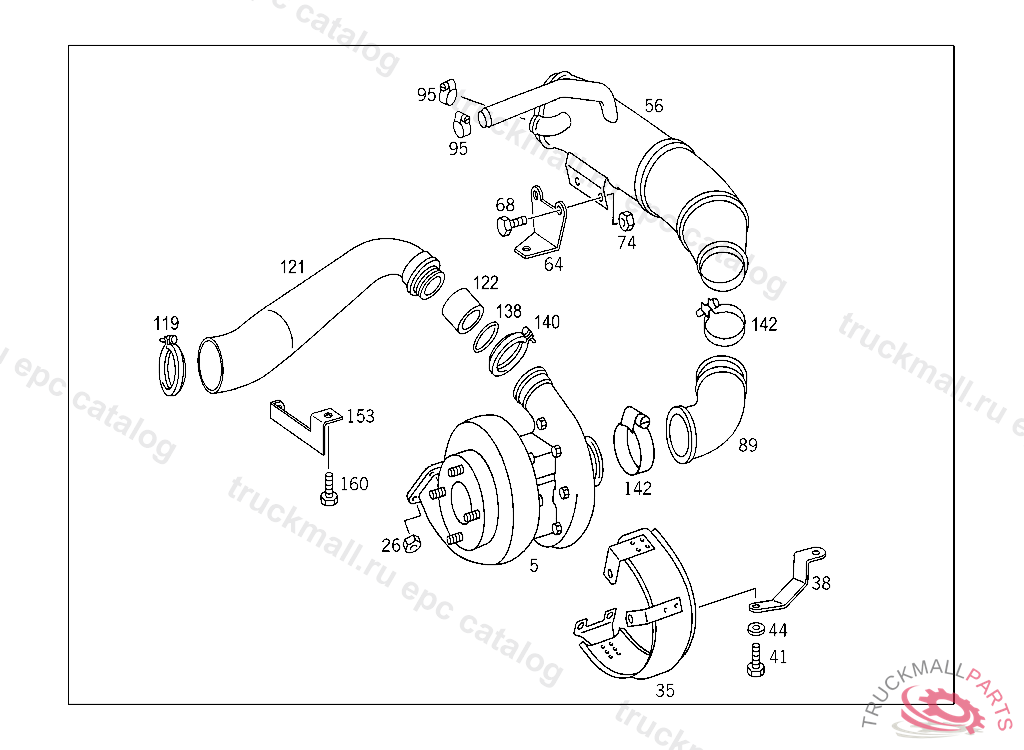

Поз.
Артикул
Описание
5
TURBOCHARGERGARRETT
5
TURBOCHARGERGARRETT
26
NUT END PIECE TO EXHAUST PIPE
35
SCREENING PLATE TURBOCHARGER SCREENING
38
BRACKET SCREENING PLATE TO OIL RETURN LINE FLANGE
41
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
44
WASHER , Replaced By: N000125008443
56
AIR INTAKE PIPE
64
BRACKET , Replaced By: A3660983139
68
SCREWM 8X18
74
NUT
89
HOSE (MOLDED HOSE),AIR INTAKE
95
CLAMP25-40X13 MM
119
LOOM TIE. CLAMP
119
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
121
ELBOW (COMPRESSED AIR ELBOW),TURBOCHARGER
122
BUSHING
138
SEAL RING PIPE ELBOW TO TURBOCHARGER
140
CLAMP PIPE ELBOW TO TURBOCHARGER
140
CLAMP CHARGING AIR LINE TO TURBOCHARGER
142
CLAMP HOSE 70-90X13 MM
153
BRACKET COMPRESSED AIR ELBOW
160
SCREW PIPE CLAMP
