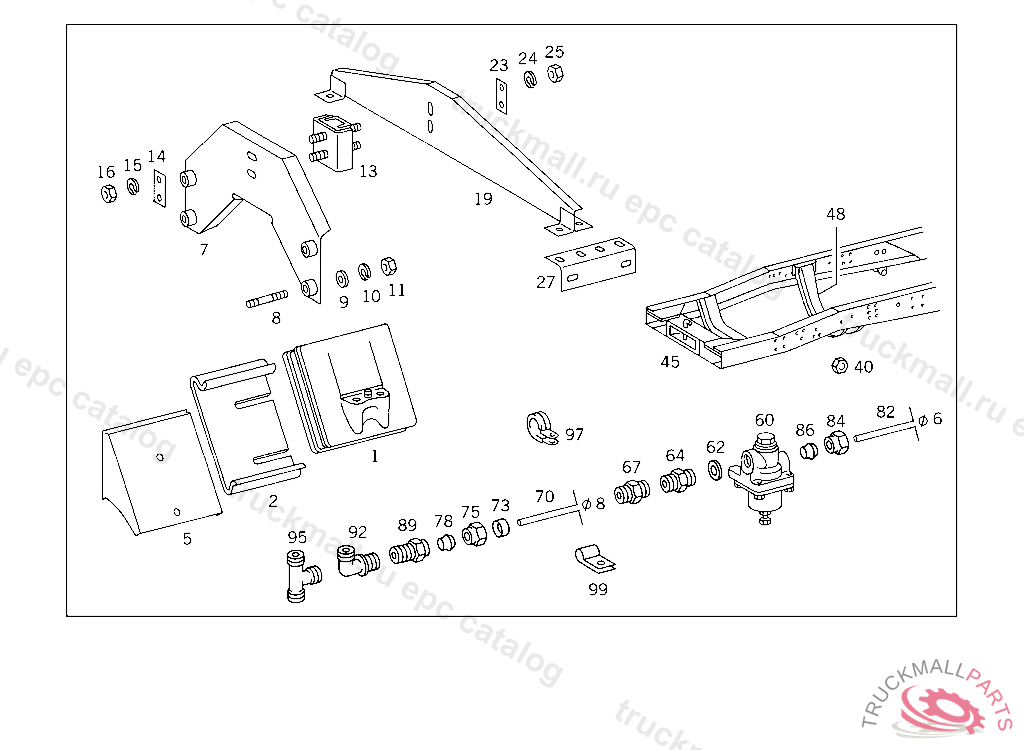

Поз.
Артикул
Описание
1
RUBBER MOUNTING ENGINE REAR MOUNTING
2
ENGINE STAY RUBBER MOUNTING TO ENGINE CROSS MEMBER
5
ENGINE STAY RUBBER MOUNTING TO ENGINE CROSS MEMBER
7
BRACKET TRANSMISSION
8
STUD BRACKET TO TRANSMISSION
9
WASHER
10
LOCK WASHER FITTING TO BRACKET
11
NUT STRAP TO SUPPORT
13
RUBBER MOUNTING TRANSMISSION
14
SHIM RUBBER MOUNTING TO BRACKET
15
LOCK WASHER FITTING TO BRACKET
16
NUT STRAP TO SUPPORT
19
SUPPORT TRANSMISSION
23
SHIM RUBBER MOUNTING TO BRACKET
24
LOCK WASHER FITTING TO BRACKET
25
NUT STRAP TO SUPPORT
27
SUPPORT LEFT AND RIGHT
40
NUT BRACKET TO SUPPORT AND TO END PIECE
40
NUT BRACKET TO SUPPORT AND TO END PIECE
40
NUT BRACKET TO SUPPORT AND TO END PIECE
45
FRAME
48
CROSS MEMBER ENGINE REAR MOUNTING
60
VALVE (PRESSURE RELIEF VALVE)
62
SEAL RING LINE CONNECTION
64
ADAPTER FITTING , Replaced By: N074313008101
64
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
67
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
70
HOSE , Replaced By: A0089979082
70
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
73
SLEEVE , Replaced By: N915062006000
73
SLEEVE LINE CONNECTION
75
UNION NUT LINE CONNECTION
78
GLAND LINE CONNECTION
82
HOSE FROM FIRE WALL TO INSTRUMENT CLUSTER, ORDER BY THE METER
82
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
84
UNION NUT
86
GLAND , Replaced By: A0019901667
86
SEAL CONE
89
FITTING , Replaced By: A0039978972
89
FITTING , Replaced By: A0029905971
89
FITTING (PARTS KIT),LINE RUPTURE
92
ELBOW FITTING BETWEEN THE LINES,K 130132
95
T-FITTING
97
CLAMP , Replaced By: A3604300143
97
CLAMP , Replaced By: N916016008200
97
CLAMP ,K 147121, Replaced By: N000000000319
97
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
99
CLAMP , Replaced By: A6739950001
99
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
NUT AT CROSS MEMBER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
999
SCREW , Replaced By: N308676012011
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
CONNECTION FITTING ,880809
999
SCREW , Replaced By: N308676014014
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N000961014158
999
SCREW , Replaced By: N308676012031
999
NUT BALL PIVOT TO LEVER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017006018
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW COMPRESSED AIR LINE TO FRAME M 6X25
999
CLAMP LINE MOUNTING
999
REAR EXHAUST PIPE , Replaced By: A3604922405
999
BRACKET , Replaced By: A3814923841
999
SPACER TUBE CLAMP TO BRACKET
999
SPACER TUBE AIR INTAKE
999
SCREW PLATE TO SIDE MEMBER
999
SCREW REAR SPRING BRACKET TO SIDE MEMBER
999
FRONT EXHAUST PIPE AT MUFFLER, 872789
999
FRONT EXHAUST PIPE AT MUFFLER, 872788
999
REAR EXHAUST PIPE , Replaced By: A3604922405
999
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
999
FRAME
999
FRONT EXHAUST PIPE FRONT,SECOND PART, 872788
999
EXHAUST PIPE FRONT, FIRST PART,5 207015
999
CROSS MEMBER ENGINE REAR MOUNTING
999
RUBBER MOUNTING ENGINE REAR SUSPENSION,4 118569
999
SCREW SPRING BRACKET TO SIDE MEMBER, 751475
999
SCREWM 14X14X27X45
999
WASHER
999
RUBBER BUFFER BRACKET TO SUPPORT
999
ADAPTER FITTING , Replaced By: A0039972072
