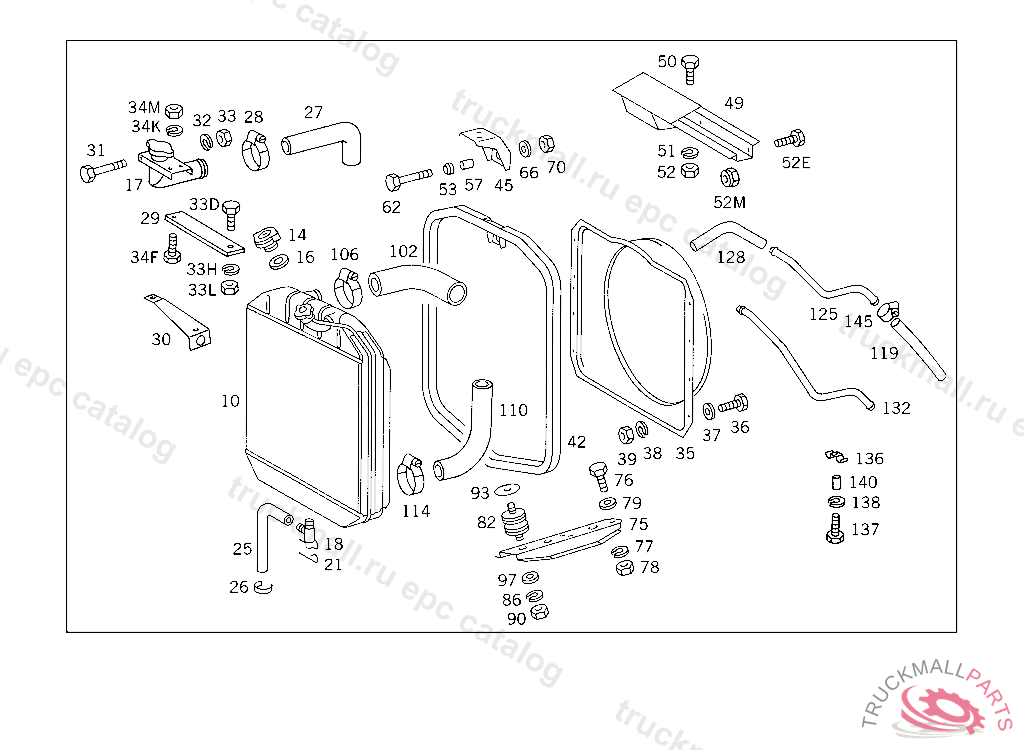

Поз.
Артикул
Описание
10
RADIATOR ,4 400466
10
RADIATOR , Replaced By: A3525012701
14
RADIATOR FILLER CAP. RADIATOR CAP
14
RADIATOR CAP WITH PRESSURE RELIEF VALVE
14
RADIATOR CAPTO 335 500 12 03
16
GASKET O.D., 37 MM
17
T-FITTING
18
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
18
VALVE ,4 263013
21
SPRING ,4 263013
25
HOSE , ELIMINATED NO LONGER REQUIRED
25
HOSE , Replaced By: A3049972582
25
HOSE
26
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
27
HOSE BRAKE VALVE,CONNECTION: "30"
27
HOSE FILLER NECK, 10 FROM CHASSIS 4 406817,20 FROM CHASSIS 4 382732,50/60 FROM CHASSIS 4 413644
28
CLAMP , Replaced By: N000000000671
28
CLAMP
29
BRACKET FILLER NECK,4 400466
31
SCREW FILLER NECK,4 400466
32
LOCK WASHER T-FITTING TO BRACKET
33
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
35
FAN SHROUD
36
SCREW , Replaced By: N304017008021
36
SCREW PIPE CLAMP
37
WASHER BRACKET TO CROSS MEMBER
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
39
NUT
42
SUPPORT
45
BRACKET
49
SUPPORT RADIATOR BRACING,TOP,5 018509
49
SUPPORT RADIATOR BRACING,TOP,5 018509
50
SCREW , Replaced By: N304017008016
50
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SCREW , Replaced By: N304017008053
50
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
51
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
52
NUT
53
RUBBER RING SHOCK ABSORBER MOUNTING
57
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
62
SCREW SPRING CLAMP TO SPRING LEAF NO.2
62
SCREW , Replaced By: N304014010015
62
SCREW DUMPER SHAFT,5 515436
66
WASHER , Replaced By: N009021010209
66
WASHER BRACKET TO COVERING
70
NUT BRACKET TO SUPPORT AND TO END PIECE
70
NUT BATTERY CABLE
75
SUPPORT
76
SCREW , Replaced By: N304017010028
76
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
77
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
78
NUT BRACKET TO SUPPORT AND TO END PIECE
78
NUT BATTERY CABLE
79
WASHER RADIATOR TO RUBBER MOUNTING
82
RUBBER MOUNTING , Replaced By: A3605040012
82
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
82
RUBBER MOUNTING RADIATOR
86
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
90
NUT BRACKET TO SUPPORT AND TO END PIECE
90
NUT BATTERY CABLE
93
WASHER RUBBER BUFFER TO BASE FRAME AND TO CONSOLE
97
WASHER , Replaced By: N000125010532
97
WASHER RADIATOR TO RUBBER MOUNTING
102
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
106
LOOM TIE , Replaced By: N916017040000
106
CLAMP
106
CLAMP , Replaced By: N000000000671
106
LOOM TIE , Replaced By: N916017040000
110
HOSE FROM RADIATOR OUTLET TO WATER PUMP
114
LOOM TIE , Replaced By: N916017040000
114
CLAMP , Replaced By: N000000000671
114
CLAMP
119
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
119
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
119
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
125
PIPE HEATING WATER FEED LINE
128
HOSE ENGINE BREATHING
132
PIPE , Replaced By: A3525060760
132
PIPE HEATING WATER RETURN LINE, UP TO CAB 082693,FROM CAB 082694 SEE CAB SPARE PARTS LIST
136
CLAMP LINE MOUNTING
137
SCREW CAB FLOOR COVERING M 6X25
138
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
140
SPACER TUBE , Replaced By: A4082910153
140
SPACER TUBE
145
CLAMP , Replaced By: N000000000667
145
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
NUT , Replaced By: N910113010000
999
LOCK WASHER FITTING TO BRACKET
999
NUT STRAP TO BRACKET
999
HOSE CLAMP. LOOM TIE FUEL LINE, TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
999
NUT ALTERNATOR CONNECTION
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW COVER PLATE TO BRACKET
999
LOOM TIE , Replaced By: N916017020000
999
LOOM TIE
