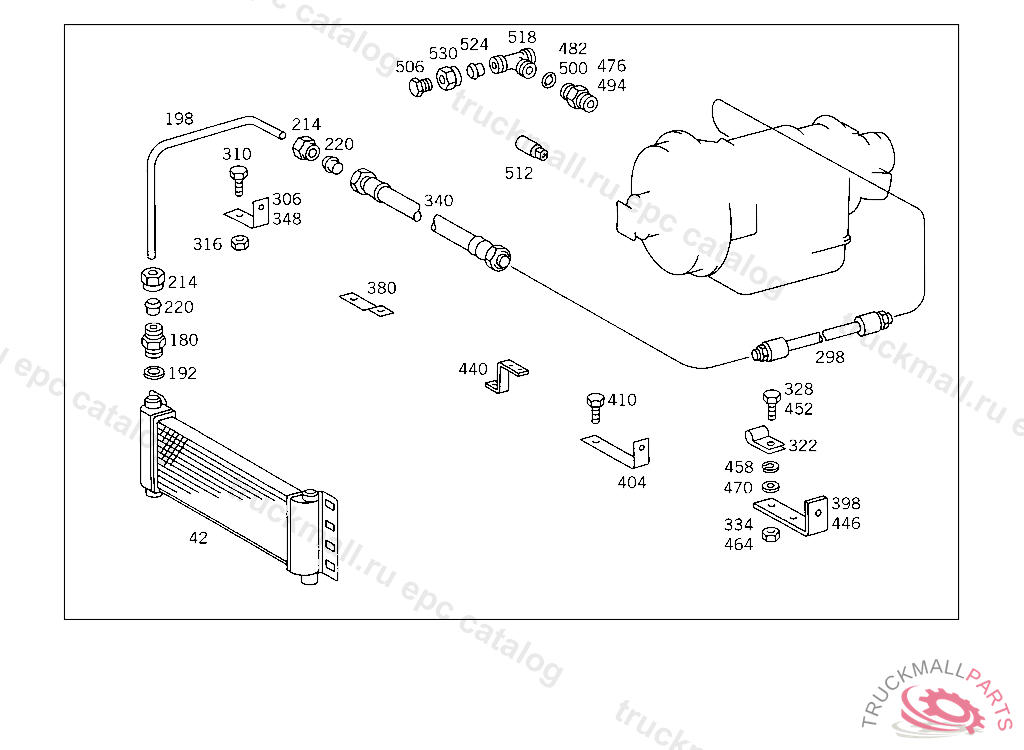

Поз.
Артикул
Описание
42
RADIATOR OIL,5 360279
180
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
180
FITTING OIL LINE TO RADIATOR
192
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
198
OIL PIPE FEED 2560 MM
198
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
214
UNION NUT LINE MOUNTING
214
UNION NUT LINE MOUNTING,4 811388
220
SEAL CONE LINE MOUNTING
220
GLAND , Replaced By: A0019901167
298
HOSE OIL LINE CONNECTION
298
HOSE OIL LINE CONNECTION
298
HOSE OIL LINE CONNECTION
298
HOSE OIL LINE CONNECTION
306
ANGLE LINE MOUNTING
310
SCREW EXHAUST PIPE TO BRACKET
310
SCREW , Replaced By: A4609900601
316
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
316
NUT , Replaced By: N913004008001
322
CLAMP FEED LINE TO THERMOSTAT
328
SCREW PUMP TO BRACKET M 6X20
334
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
348
BRACKET FUEL LINES TO TRANSMISSION
348
BRACKET FUEL LINES TO TRANSMISSION
348
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
380
BRACKET LINE TO SIDE MEMBER,4 811389
380
BRACKET LINE TO SIDE MEMBER,4 811389
398
BRACKET LINE TO SIDE MEMBER
398
BRACKET LINE TO SIDE MEMBER,5 121290
404
BRACKET FUEL TANK TO FRAME,4 967508
410
SCREW BRACKET TO TRANSMISSION
410
SCREW BRACKET TO TRANSMISSION
410
SCREW , Replaced By: N308676012038
410
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
440
BRACKET LINE TO SIDE MEMBER,4 811389
440
BRACKET LINE TO SIDE MEMBER,4 811389
440
BRACKET LINE TO SIDE MEMBER,4 811389
440
BRACKET LINE TO SIDE MEMBER,4 811389
446
BRACKET LINE TO SIDE MEMBER
446
BRACKET LINE TO SIDE MEMBER,5 121290
452
SCREW , Replaced By: N304017008034
452
SCREW , Replaced By: N304017008034
452
SCREW , Replaced By: N304017008034
458
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
464
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
464
NUT , Replaced By: N913004008001
464
NUT
464
NUT
464
NUT
470
WASHER EXHAUST MUFFLER TO STRAP
470
WASHER EXHAUST MUFFLER TO STRAP
470
WASHER , Replaced By: N000125008443
476
FITTING OIL LINES TO TRANSMISSION
476
FITTING OIL LINE TO TRANSMISSION
476
FITTING OIL LINE TO TRANSMISSION
476
FITTING OIL LINE TO TRANSMISSION
482
SEAL RING FITTING TO TRANSMISSION
482
SEAL RING FITTING TO TRANSMISSION
494
FITTING OIL LINES TO TRANSMISSION
500
SEAL RING FITTING TO TRANSMISSION
506
FITTING FROM TRANSMISSION TO FEED HOSE
512
FITTING OIL LINES TO TRANSMISSION
518
FITTING OIL TEMPERATURE REGULATOR
518
FITTING VALVE
518
FITTING VALVE, Replaced By: N000000006453
524
SEAL CONE LINE CONNECTION
524
GLAND , Replaced By: A0019901267
524
SEAL CONE LINE MOUNTING
524
GLAND , Replaced By: A0019901167
530
NUT LINE CONNECTION
530
UNION NUT LINE CONNECTION, Replaced By: N000000006243
530
UNION NUT LINE MOUNTING
999
LINE , Replaced By: A0005516456
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
RADIATOR CAPTO 309 500 17 02
999
HOSE BRAKE VALVE,CONNECTION: "30"
999
BRACKET , Replaced By: A3464296040
999
PIPE RETURN
999
PIPE FEED
999
PIPE FEED AND RETURN
999
PIPE FEED
999
RADIATOR
999
RADIATOR ,4 400466
999
BRACKET LINE TO SIDE MEMBER,4 967508
999
PIPE , Replaced By: A3952571466
999
PIPE , Replaced By: A0004291601
999
RADIATORBEHR, NOT USED
999
RADIATOR , Replaced By: A3555010901
999
RADIATOR , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 908891, Replaced By: A3555011301
999
RADIATOR
999
HOSE , Replaced By: A3559970782
999
HOSE FEED AND RETURN
999
HOSE HOSE TO OIL FILTER
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
FILTER OIL FILTER
999
ELBOW FITTING RETURN LINE TO TRANSMISSION
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3914290140
999
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
FITTING HIGH PRESSURE LINE TO STEERING
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: N000000000671
