Поз.
Артикул
Описание

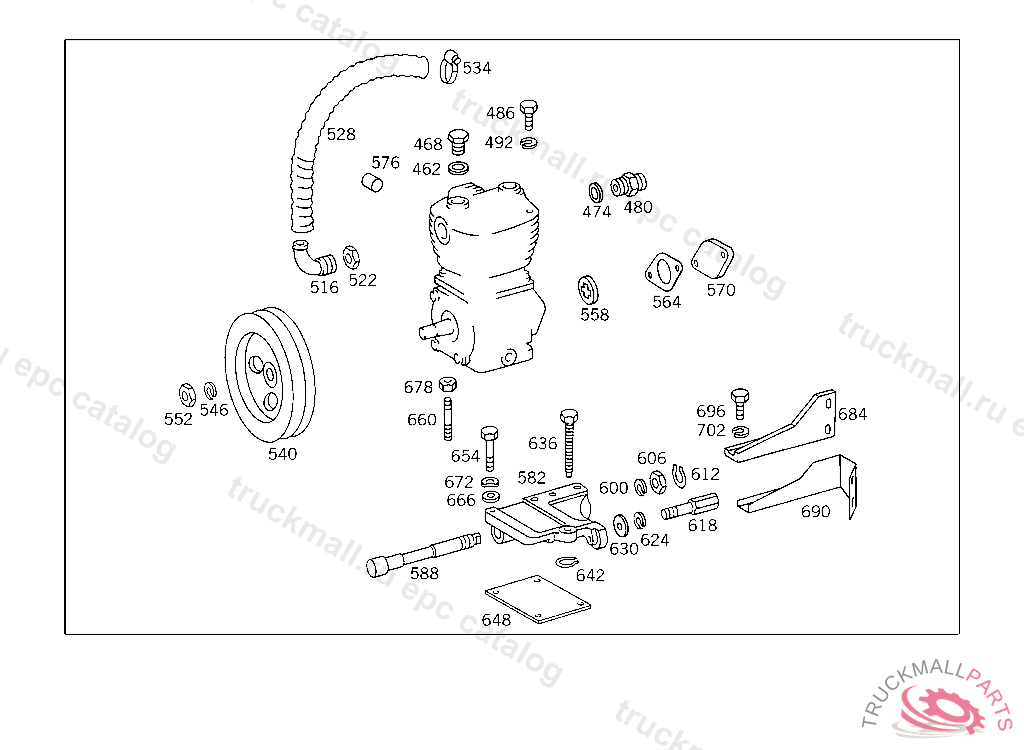

486
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
486
SCREW , Replaced By: N304017010055
486
SCREW , Replaced By: N304017010050
486
SCREW VALVE TO BRACKET, Replaced By: N304014008002
486
SCREW PLATE TO TRANSMISSION CASE M 8 X 70
486
SCREW VALVE TO BRACKET
492
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
516
PIPE BEND ENGINE BREATHING
522
NUT SUCTION LINE TO OIL PUMP
534
CLAMP25-40X13 MM
534
CLAMP , Replaced By: A0069970490
534
LOOM TIE , Replaced By: N000000000668
540
PULLEY
546
LOCK WASHER BELL HOUSING TO TRANSMISSION
552
NUT VIBRATION ABSORBER TO CONSOLE
552
NUTTO 376 131 74 01
558
FOLLOWER POWER STEERING PUMP AT ENGINE
582
SUPPORT AIR COMPRESSOR
588
PIN AIR COMPRESSOR SUPPORT TO BEARING BODY
600
LOCK WASHER SPARE WHEEL TO BRACKET
606
NUT ARTICULATED ROD TO LEVER
612
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
618
SCREW AIR COMPRESSOR SUPPORT TO BEARING HOUSING
624
LOCK WASHER FITTING TO BRACKET
630
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
630
WASHER , Replaced By: N007349013005
636
SCREW (CLAMPING BOLT)
642
LOCK RING TO PULL OFF CONSOLE
654
SCREW CLAMP ON BRACKET
654
SCREW , Replaced By: N910105008014
666
WASHER , Replaced By: N000125008443
666
WASHER EXHAUST MUFFLER TO STRAP
672
SPRING WASHER , Replaced By: N000137008212
672
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
684
BRACKET AIR-COMPRESSOR DELIVERY LINE
696
SCREW PIPE CLAMP
696
SCREW , Replaced By: N304017008021
702
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SPACER WASHER
999
WASHERTO 001 131 52 01
999
COMPRESSORBOSCH
999
COMPRESSOR , Replaced By: A0031315901
