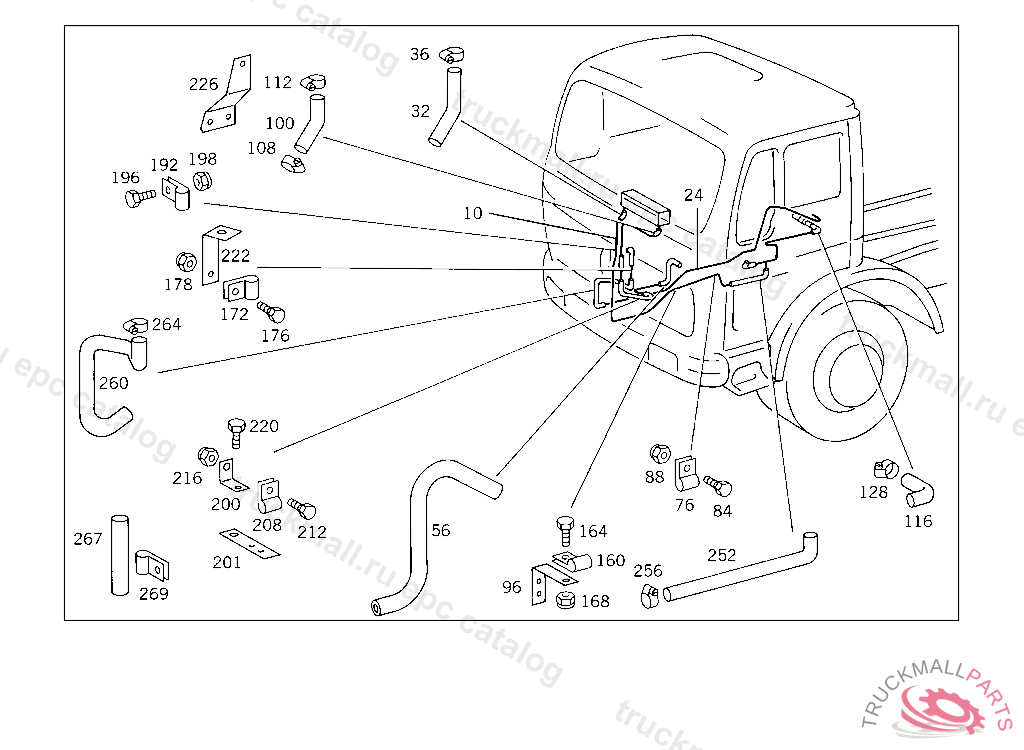

Поз.
Артикул
Описание
10
BREATHER PIPE FROM CHECK VALVE TO HEATING PIPE 1550 MM
10
BREATHER PIPE FROM CHECK VALVE TO HEATING PIPE 1660 MM
24
BREATHER PIPE FROM HEATER UNIT TO PIPE LINE
24
BREATHER PIPE FROM HEATER UNIT TO PIPE LINE 2210 MM
24
BREATHER PIPE FROM HEATER UNIT TO PIPE LINE 2030 MM
32
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
32
HOSE HEATING PIPE
36
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
36
CLAMP HOSE TO FITTING AND TO OIL TANK
56
HOSE FROM HEATING LINE TO HEATING LINE
56
HOSE , Replaced By: A3635060035
56
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
76
CLAMP , Replaced By: A6739950001
76
CLAMP DELIVERY AND SUCTION LINES TO STEERING
84
SCREW , Replaced By: N304017006016
84
SCREW , Replaced By: N304017006020
84
SCREW LICENSE PLATE TO BRACKET
84
SCREW PUMP TO BRACKET
88
NUT PUMP TO BRACKET
88
NUT , Replaced By: N913004006001
96
BRACKET HEATING WATER LINE
100
HOSE EXPANSION TANK
108
CLAMP HOSE TO FITTING AND TO OIL TANK
108
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
112
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
112
CLAMP , Replaced By: N000000000667
116
HOSE HEATING PIPE
128
CLAMP HOSE TO FITTING AND TO OIL TANK
128
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
128
LINE HEATING PIPE
160
CLAMP , Replaced By: A6739950001
160
CLAMP LINE MOUNTING
160
CLAMP DELIVERY AND SUCTION LINES TO STEERING
164
SCREW PUMP TO BRACKET
164
SCREW , Replaced By: N304017006016
168
NUT , Replaced By: N913004006001
168
NUT PUMP TO BRACKET
172
CLAMP AT BRACKET
172
CLAMP , Replaced By: N916016011202
176
SCREW BRACKET TO SIDE MEMBER
176
SCREW , Replaced By: N304017008034
178
NUT STRAP TO BRACKET
178
NUT , Replaced By: N910113010000
192
CLAMP , Replaced By: N916016011202
192
CLAMP AT BRACKET
192
CLAMP DELIVERY AND SUCTION LINES TO STEERING
196
SCREW PUMP TO BRACKET
196
SCREW , Replaced By: N304017006016
196
SCREW , Replaced By: N304017008034
198
NUT , Replaced By: N913004008001
198
NUT , Replaced By: N913004006001
198
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
198
NUT PUMP TO BRACKET
200
BRACKET CABLE HARNESS MOUNTING
200
BRACKET , Replaced By: A3873020140
200
BRACKET LINE MOUNTING
201
BRACKET HEATING WATER LINE
208
CLAMP DELIVERY AND SUCTION LINES TO STEERING
208
CLAMP , Replaced By: A6739950001
208
CLAMP LINE MOUNTING
212
SCREW , Replaced By: N304017006016
212
SCREW PUMP TO BRACKET
216
NUT , Replaced By: N913004006001
216
NUT PUMP TO BRACKET
220
SCREW HEATING WATER LINE TO SIDE MEMBER, 380.0/1,381.0/1,383.0/1,385.0/1 UP TO CHASSIS 4 661119,380.2,381.2/3,385.2 UP TO CHASSIS 4 661211
222
BRACKET HEATING WATER LINE
226
BRACKET HEATING WATER LINE
252
HOSE , Replaced By: A3465015382
252
HOSE HEATING PIPE
256
CLAMP HOSE TO FITTING AND TO OIL TANK
256
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
260
HOSE HEATING WATER LINE
264
CLAMP HOSE TO FITTING AND TO OIL TANK
264
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
267
HOSE HEATING PIPE
269
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A3609950210
999
LINE HEATING PIPE, NOT USED
999
BREATHER PIPE WATER DRAIN
999
LINE HEATING,MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER, 415 5 014668 416 5 000515 417 4 972023
999
BREATHER PIPE , NOT USED
999
HOSE , NOT USED
999
HOSE , NOT USED
999
BREATHER PIPE , NOT USED
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 550 MM, NOT FOR USE WITH MERCEDES-BENZ CAB4 367398
999
BREATHER PIPE , NOT USED
999
LINE , NOT USED
999
LINE HEATING, TO CAB,4 829878
999
HOSE , Replaced By: A3835060035
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
ANGLE LINE MOUNTING
999
HOSE , Replaced By: A3465015382
999
HOSE , Replaced By: A3018320523
999
BRACKET , Replaced By: A3184280240
999
BRACKET , Replaced By: A3124761535
