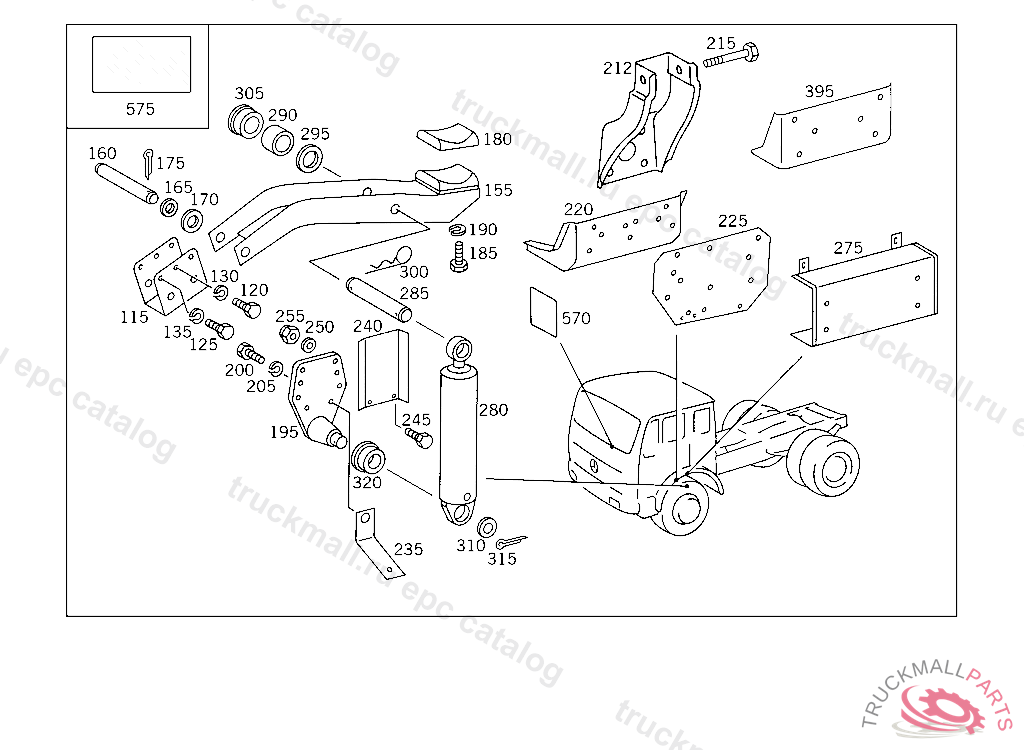

Поз.
Артикул
Описание
115
MOUNTING HYDRAULIC SYSTEM USED FOR CAB TILTING
120
SCREW CONSOLE TO SIDE MEMBER
125
SCREW BRACKET TO SIDE MEMBER
125
SCREW , Replaced By: N304017010002
130
LOCK WASHER FITTING TO BRACKET
135
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
155
LEVER HYDRAULIC CYLINDER
155
LEVER HYDRAULIC CYLINDER
160
PIN LEVER TO BEARING
165
WASHER , Replaced By: A3143220276
165
WASHER , Replaced By: A3143220176
165
WASHER BEARING BRACKET ON BEARING BRACKET FOR LONGITUDINAL CONTROL ARM,K 103912
170
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
175
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
180
MOUNTING CAB SUSPENSION,REAR
185
SCREW PIPE CLAMP
185
SCREW , Replaced By: N304017008021
190
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
195
BEARING BRACKET HYDRAULIC CYLINDER TO CAB
200
SCREW , Replaced By: N910105014010
200
SCREW , Replaced By: N308676014003
200
SCREW , Replaced By: N308676014008
200
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
200
SCREW MOUNTING TO CONSOLE M 14X35
200
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
200
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X65
200
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
205
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
212
BRACKET RIGHT SHOCK ABSORBER
212
BRACKET SHOCK ABSORBER
215
SCREW BRACKET TO CAB CONSOLE,K 035197
220
CONSOLE ENGINE RIGHT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
220
CONSOLE , Replaced By: A3812400106
220
CONSOLE ENGINE LEFT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
225
REINFORCEMENT CONSOLE TO SIDE MEMBER
235
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE
240
COVER PLATE BEARING BRACKET
245
SCREW REAR EXHAUST PIPE TO MUFFLER
250
WASHER RADIATOR TO RUBBER MOUNTING
250
WASHER , Replaced By: N000125010532
255
NUT , Replaced By: N910113010000
255
NUT STRAP TO BRACKET
275
PROTECTIVE PLATE AT FRAME
275
PROTECTIVE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 034723, Replaced By: A3854201744
280
CYLINDER HYDRAULIC CYLINDER,K 301549
280
CYLINDER HYDRAULIC CYLINDER,K 301548
285
PIN CYLINDER TO LEVER
290
SPACER TUBE CYLINDER TO LEVER
295
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
295
WASHER , Replaced By: N000125025008
300
SPRING RETAINING PIN CYLINDER TO LEVER
305
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
310
WASHER HYDRAULIC CYLINDER TO CAB
315
COTTER PIN6.3X63 MM
320
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
395
SUPPORT REAR LEFT, NOT USED
570
GUIDE SIGN IN DUTCH
570
GUIDE SIGN IN SPANISH
570
GUIDE SIGN IN DANISH
570
GUIDE SIGN , Replaced By: A3805843421
570
GUIDE SIGN , Replaced By: A3805843421
570
GUIDE SIGN , Replaced By: A3805843321
575
ADHESIVE FOIL GUIDE SIGN
999
PIN PULL TO FASTENER
999
BUSHING LEVER TO CAB
999
ROD CENTRAL LOCK
999
SEAL ROD THRU CAB
999
BRACKET ROD THRU CAB
999
CONSOLE ADDITIONAL WORK ON FRAME
999
HANDLE CAB LOCKING MECHANISM
999
LEVER CAB LOCKING MECHANISM
999
SUPPORT
999
SHIM BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N304017008034
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP LINE MOUNTING
