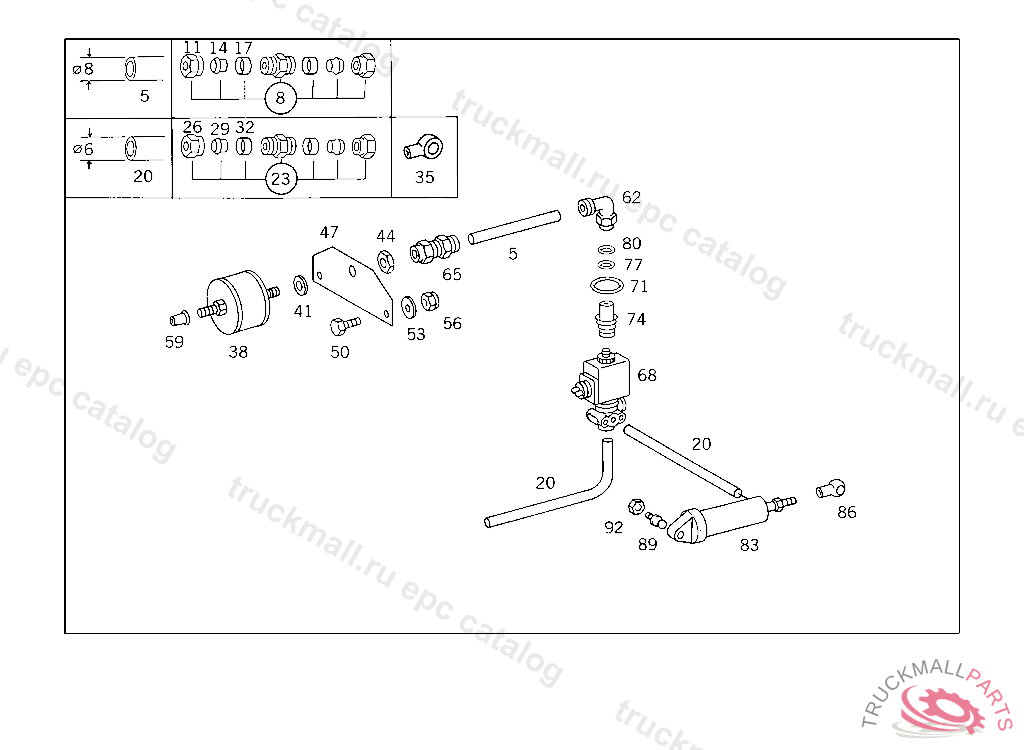

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
PLASTIC PIPE RISING PIPE 4X6 MM
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
26
UNION NUT
29
GLAND , Replaced By: A0019901667
32
SLEEVE LEAK LINE
35
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
38
RESERVOIR 3/2-WAY VALVE BREATHING
41
WASHER , Replaced By: N000125015019
41
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
44
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
47
50
SCREW PIPE CLAMP
50
SCREW , Replaced By: N304017008021
53
WASHER , Replaced By: N009021008213
53
WASHER BRACKET TO LEFT SIDE MEMBER
56
NUT , Replaced By: N913004008001
59
NOZZLE
62
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
65
FITTING FITTING TO BRACKET
68
VALVE (3/2-WAY SOLENOID VALVE) WABCO
71
SEAL RINGWABCO
74
VALVE PARTWABCO
77
SEAL RINGWABCO
80
SEAL RINGWABCO
83
CYLINDER CONTROL
86
JOINT
89
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
89
BALL PIVOT ACCELERATOR PEDAL,4 859026
89
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
92
NUT , Replaced By: N304035008001
92
NUT
999
JOINT PULL ROD
999
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
NUT BALL PIVOT TO LEVER
999
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
NUT , Replaced By: A0009906350
