Mercedes A0004290527 - КОЛЬЦО ПРОСТАВОЧНОЕ

O 405 NH-G 357.488

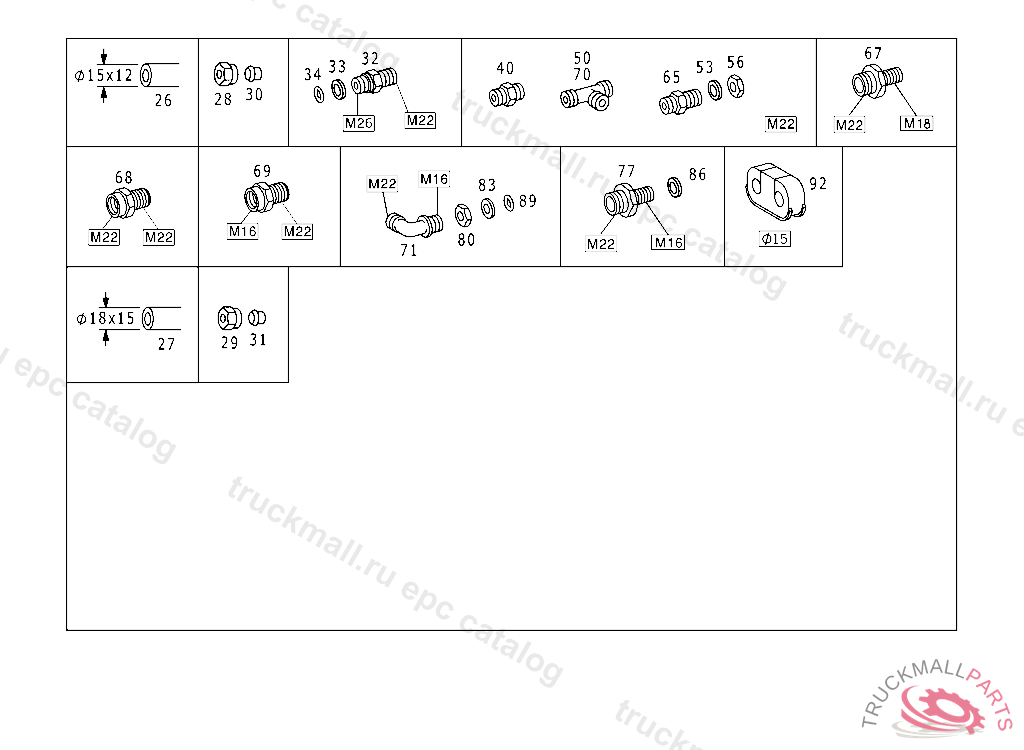

42 BRAKES - 050 16-MM/15-MM COMPRESSED AIR LINES IL. 2

Поз.
Артикул
Описание
26
A0004291401
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
27
A0004291501
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
28
N915017015100
UNION NUT LINE CONNECTION
29
N915017018100
UNION NUT LINE MOUNTING
30
N003861015004
GLAND LINE CONNECTION
31
A0019901167
SEAL CONE LINE MOUNTING
31
N003861018003
GLAND , Replaced By: A0019901167
33
A0004290527
THRUST RING SUCTION LINE TO OIL PUMP
34
A0039973848
SEAL RING LINE CONNECTION
