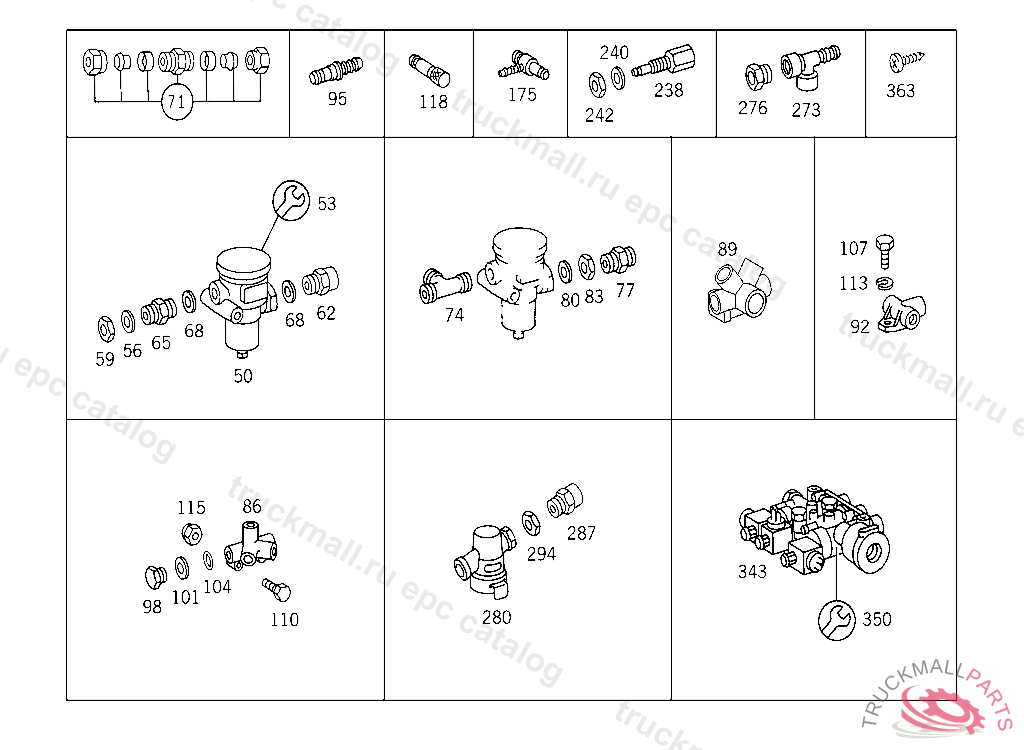

Поз.
Артикул
Описание
50
VALVE PRESSURE RELIEF
53
REPAIR KIT PRESSURE RELIEF VALVE
56
WASHER
59
NUT CHECK VALVE TO AIR RESERVOIR
62
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
65
FITTING TWO-WAY VALVE
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
FITTING (PARTS KIT),LINE RUPTURE
74
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
77
BULKHEAD FITTING BRAKE LINE COUPLING TO BRACKET
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
89
DISTRIBUTOR CENTRAL AXLE
92
DISTRIBUTOR REAR AXLE
92
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT,5 411349
95
CONNECTOR , Replaced By: A0029905478
98
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SCREW PUMP TO BRACKET
107
SCREW , Replaced By: N304017008021
107
SCREW , Replaced By: N304017006016
110
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
110
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
113
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
115
NUT , Replaced By: N913004008001
115
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
115
NUT , Replaced By: N913004006001
115
NUT PUMP TO BRACKET
118
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
175
T-FITTING
238
COUPLING MUFFLER TO SUBSTRUCTURE
240
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
242
NUT BRACKET TO SIDE MEMBER
273
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
276
SCREW. UNION SCREW LINE CONNECTION
280
AIR CLEANER COMPRESSED AIR LINE
287
FITTING LINE CONNECTION
294
NUT CHECK VALVE TO AIR RESERVOIR
343
VALVE REAR AXLE SELF-LEVELLING DEVICE
350
REPAIR KIT ,5 760168K 154651
363
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
BALL SOCKET LINK TO RIGHT SIDE MEMBER, NOT USED
999
COVERING AT RESERVOIR,TOP
999
T-FITTING PRESSURE REGULATOR ON GAS MIXER
999
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
999
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
999
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
999
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
