Поз.
Артикул
Описание

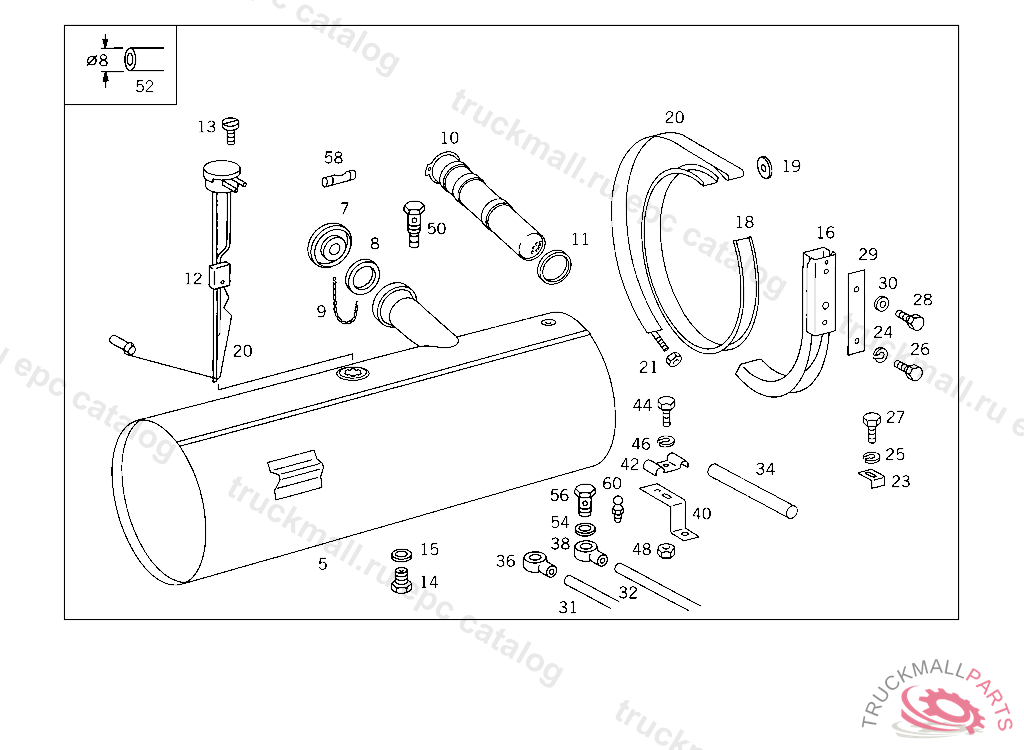

5
FUEL TANK , Replaced By: A3804700201
5
FUEL TANK , Replaced By: A3804700101
5
FUEL TANK
5
FUEL TANK , Replaced By: A3874701301
5
FUEL TANK , Replaced By: A3554700101
5
FUEL TANK200 L
5
FUEL TANK200 L, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
5
FUEL TANK200 L
5
FUEL TANK200 L
5
FUEL TANK
5
FUEL TANK200 L
7
FILLER CAP
7
FILLER CAP , Replaced By: A3094700005
7
FILLER CAP , Replaced By: A3094700005
8
SEAL RING
8
SEAL RING
8
CHAIN FILLER CAP
9
CHAIN FILLER CAP
10
FUEL STRAINER AT TANK
10
FUEL STRAINER FUEL TANK
11
SEAL RING FUEL STRAINER SCREEN
12
SENDER UNIT , Replaced By: A0085428017
12
SENDER UNIT FUEL GAUGE
12
SENDER UNIT FUEL GAUGE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
12
SENDER UNIT FUEL GAUGE
13
SCREW , Replaced By: N007985005175
13
SCREW HOOK TO BRACKET
13
SCREW FUEL GAUGE SENDER UNIT TO FUEL TANK, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
13
SCREW FUEL GAUGE SENDER UNIT TO FUEL TANK
14
SCREW PLUG , Replaced By: N007604014110
14
SCREW PLUG FUEL TANK
15
SEAL RING FUEL LINE TO FEED PUMP
16
SUPPORT FRONT
16
SUPPORT REAR
16
SUPPORT FRONT TANK
16
SUPPORT FRONT TANK
16
SUPPORT , Replaced By: A3854700042
16
SUPPORT FRONT
16
SUPPORT FUEL TANK,REAR
16
SUPPORT FRONT AND REAR,5 193594
16
SUPPORT REAR
16
SUPPORT , Replaced By: A3854700042
16
SUPPORT , Replaced By: A3854700042
16
SUPPORT REAR
18
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
18
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
18
RUBBER SECTION RESERVOIR, ORDER BY THE METER
18
RUBBER SECTION , Replaced By: A3634750320
18
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
19
WASHER
20
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
20
STRAP FUEL TANK TO CONSOLE,5 149420
20
STRAP FUEL TANK,4 492432
20
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
21
NUT STRAP TO SUPPORT,5 149419
21
NUT STRAP TO SUPPORT
21
NUT STRAP TO SUPPORT,5 149419
23
STOP ,969088-4 492432
24
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
24
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
24
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
25
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
26
SCREW , Replaced By: N308676014012
26
SCREW SUPPORT TO SIDE MEMBER M 14X45
26
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
26
SCREW , Replaced By: N308676014020
26
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
27
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
27
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
27
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
28
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
28
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
28
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
28
SCREW , Replaced By: N308676014012
28
SCREW SUPPORT TO SIDE MEMBER M 14X45
28
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
28
SCREW BRACKET TO CAB CONSOLE,K 035197
28
SCREW BRACKET TO SIDE MEMBER
29
SHIM BEARING BRACKET TO FRAME
29
SHIM SUPPORT TO SIDE MEMBER
29
SHIM SUPPORT TO SIDE MEMBER
30
WASHER BRACKET TO SIDE MEMBER,5 703114
30
WASHER CROSS MEMBER TO REINFORCEMENT
30
WASHER BRACKET TO SIDE MEMBER,5 703114
31
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
31
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
32
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
32
PLASTIC PIPE RISING PIPE 4X6 MM
32
PLASTIC PIPE RISING PIPE 4X6 MM
34
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
34
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
36
BANJO UNION , Replaced By: N000000000363
38
BANJO UNION , Replaced By: N915052004007
38
BANJO UNION , Replaced By: N000000000364
38
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
40
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
40
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
40
BRACKET OIL LINE MOUNTING
40
BRACKET FUEL LINE
42
CLAMP
44
SCREW COVER PLATE TO BRACKET
46
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
48
NUT BALL PIVOT TO LEVER
50
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
50
RISING PIPE , Replaced By: A3609900263
50
HOLLOW SCREW , Replaced By: A3609900263
50
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
50
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
52
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
52
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
52
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
52
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
54
SEAL RING FUEL LINE TO FEED PUMP
54
SEAL RING FUEL LINE TO FEED PUMP
56
HOLLOW SCREW FUEL LINE TO FEED PUMP
56
HOLLOW SCREW FUEL LINE TO FEED PUMP
56
HOLLOW SCREW , Replaced By: N915036010108
58
CABLE CONNECTOR1.0-2.6 MM2
60
GREASE NIPPLE
999
CABLE CONNECTOR BRANCH-OFF TO FUEL GAUGE SENDER UNIT
999
SENDER UNIT FUEL GAUGE
999
SENDER UNIT FUEL GAUGE SENDER UNIT TO FUEL TANK,4 495577
999
SENDER UNIT FUEL GAUGE,4 316250
999
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
999
SUPPORT ,4 690101, Replaced By: A3834701442, +001A6174700440, +002A3859900551
999
SUPPORT ,734560-4 669106 ALSO INSTALLED ON 500001-599999, Replaced By: A3834701542, +001A6174700340, +002A3859900551
999
SUPPORT ,4 669106 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3834701442, +001A6174700440, +002A3859900551
999
SUPPORT , Replaced By: A3524704142
999
SUPPORT
999
RISING PIPE , 635655
999
STRAP , Replaced By: A3834700340
999
RISING PIPE , Replaced By: A3609900263
999
STRAP FUEL TANK TO SUPPORT
999
FUEL TANK , Replaced By: A6734701201
999
FUEL TANK , Replaced By: A6734701001
999
FUEL TANK135 LTR.
999
FUEL TANK , Replaced By: A3834701101, +001N007603014302, +001N007604014106
999
SUPPORT , Replaced By: A3854700842
999
STRAP AIR RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
