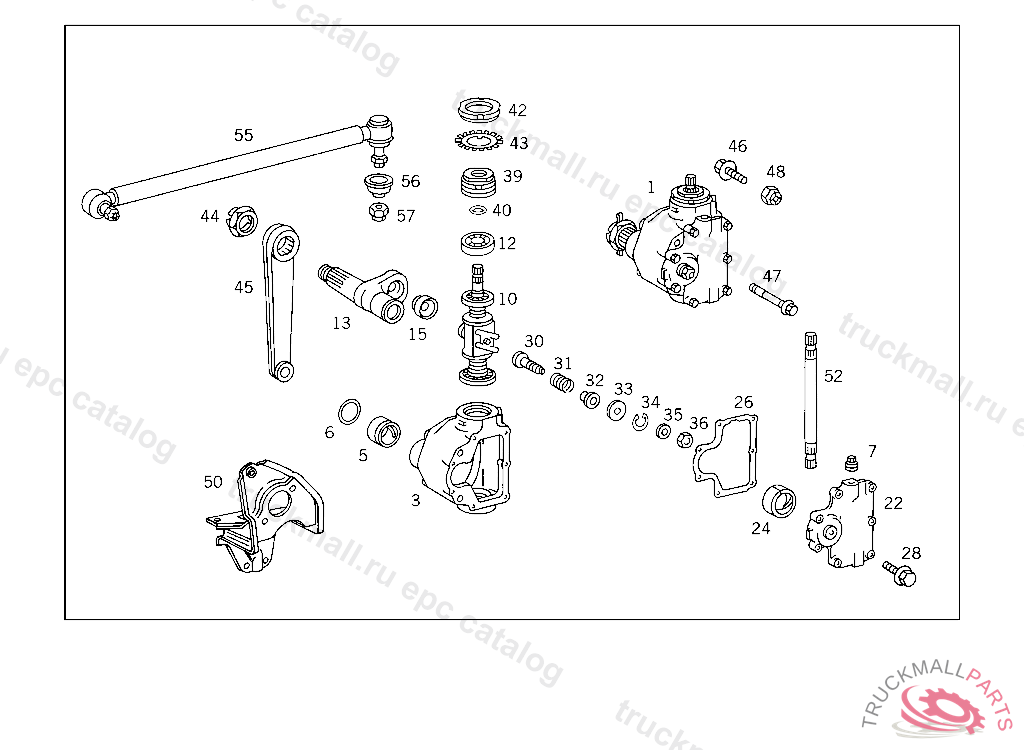

Поз.
Артикул
Описание
1
STEERING BOX ASSEMBLY , Replaced By: A3444601201
1
STEERING BOX ASSEMBLY , FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
3
STEERING BOX
5
BUSHING47.1 MM
6
SEAL RING
6
SEAL RING
7
SCREW PLUG
10
STEERING NUT , Replaced By: A4064600218
10
STEERING NUT
10
STEERING NUT
12
BARREL-TYPE BEARING , Replaced By: A3459817006
12
BARREL-TYPE BEARING STEERING WORM, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
12
BARREL-TYPE BEARING
13
STEERG. WORM SECTOR SHAFT
15
BALL CUP
22
STEERING BOX COVER
22
STEERING BOX COVER STEERING BOX
24
BUSHING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
26
GASKET , Replaced By: A3524610180
26
GASKET
28
SCREW , Replaced By: N000931008049
30
SCREW
31
SPRING
32
THRUST PIECE
33
THRUST WASHER
34
LOCK
35
SEAL RING
36
NUT
39
RING
40
SEAL RING
42
NUT , Replaced By: A6743560226
42
GROOVED NUT
43
LOCK
44
NUT
45
PITMAN ARM
45
PITMAN ARM
46
SCREW STEERING TO STEERING BRACKET
47
SCREW STEERING TO STEERING BRACKET
48
NUT STEERING TO STEERING BRACKET TO 327 990 01 14,322 990 09 14
50
BRACKET
50
BRACKET
52
STEERING SHAFT BOTTOM, FROM IDENT NO. 709913 ALSO INSTALLED ON 500001-599999
55
DRAG LINKEHRENREICH
55
DRAG LINKLEMFOERDER
55
DRAG LINKEHRENREICH
55
DRAG LINKLEMFOERDER
55
DRAG LINK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 034559, Replaced By: A3524603105
56
BOOT FIXED PART OF JOINT
56
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
57
NUT DRAG LINK TO LEVER,4 215305
999
RIVET , Replaced By: N910005012001
999
PLUG , Replaced By: N000906016000
999
STEERING BOX ASSEMBLY , FOR BREAK-DOWN,SEE UNIT MICROFICHE,MODEL: 762.002 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
STEERING BOX ASSEMBLY , Replaced By: A3084600001
999
BUSHING REPAIR SIZE I 47.6 MM
999
NUT ,297463
999
PART NAME MISSING , Replaced By: A3214600414, +001A0029900251
999
STEERING BOX WITH BEARING BUSHING
999
STEERING BOX COVER ,297463, Replaced By: A3214600514, +001A0029900251
999
DRAG LINK , FIRST EXHAUST STOCK OF OLD PART NUMBERS UP TO IDENT NO.5 034559, Replaced By: A3524603105
999
STEERING BOX , UP TO STEERING 036694, Replaced By: A3604602802, +001A3604602214
999
STEERING BOX , UP TO STEERING 042411, Replaced By: A3604602902, +001A3604602314
999
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
STEERING SHAFT BOTTOM, 709913
999
STEERING SHAFT BOTTOM, FROM IDENT NO. 709913 ALSO INSTALLED ON 500001-599999
999
PITMAN ARM
999
PITMAN ARM
999
COTTER PIN SHIFT LEVER TO CASE
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN , UP TO IDENT NO.: 414221,FROM IDENT-NO.: 414222 SEE SPARE PARTS 766.1
999
SEAL RING OIL FILLING AND OIL DRAIN
999
SCREW PLUG STEERING BOX
999
SCREW PLUG OIL FILLING
999
SNAP RING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
999
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
