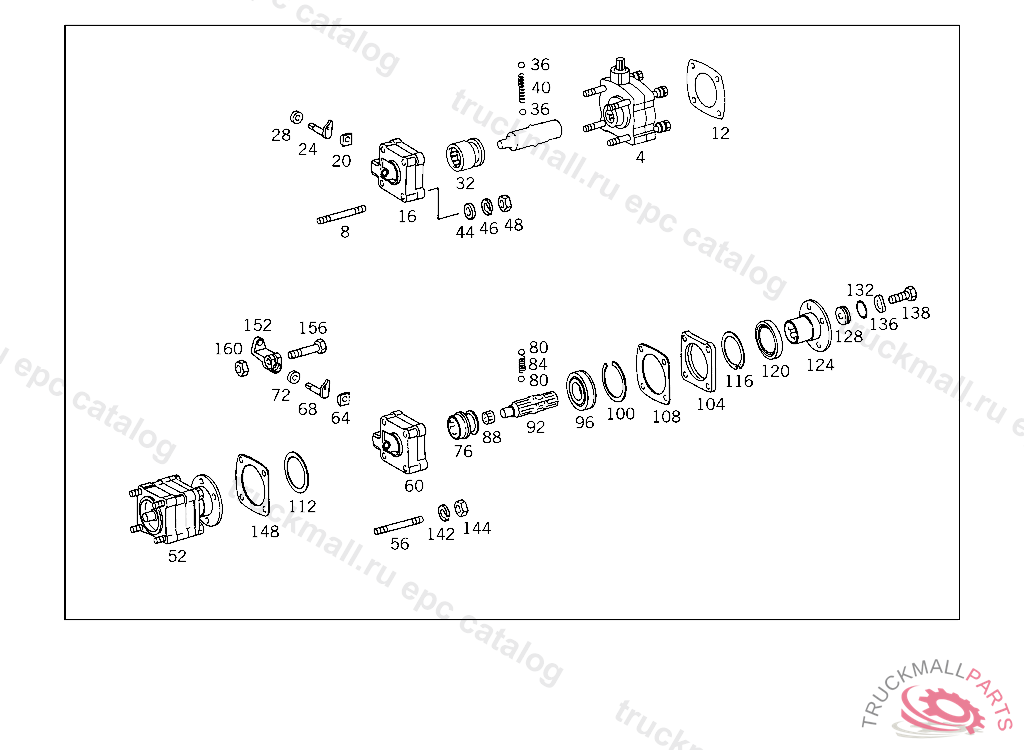

Поз.
Артикул
Описание
4
P.T.O.N 70-1 C
8
STUD SHIFT CASE TO TRANSMISSION
12
GASKET CASE,REAR
12
GASKET
12
GASKET ,290281, Replaced By: A0002642980, +001A0002642111
16
HOUSING
16
HOUSING , Replaced By: A0002641328
20
SLIDE P.T.O. SHIFT LEVER
24
SHIFT LEVER
28
SEAL RING P.T.O. SHIFT LEVER
32
SLIDING COLLAR P.T.O.
32
SLIDING COLLAR
36
BALL
40
HOUSING , Replaced By: A0002641328
40
SPRING
44
WASHER
46
LOCK WASHER , Replaced By: N912006012000
46
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
48
SLIDING COLLAR
48
NUT
48
NUT COVER TO FLANGE
52
P.T.O.N 70-1 B
52
P.T.O. , Replaced By: A3432600005, +004A3422610170, +001A0002640245, +001A3432640047, +001A0119979145, +001A0089973747, +001N000137012203, +001N000933012077
56
STUD SHIFT CASE TO TRANSMISSION
60
HOUSING , Replaced By: A0002641328
60
HOUSING
64
SLIDE P.T.O. SHIFT LEVER
68
SHIFT LEVER
72
SEAL RING P.T.O. SHIFT LEVER
76
SLIDING COLLAR P.T.O.
76
SLIDING COLLAR
80
BALL
84
SPRING
88
NEEDLE BEARING P.T.O.
92
DRIVE SHAFT
96
CYLINDR. ROLLER BEARING DRIVE SHAFT
100
SNAP RING BEARING TO FLANGE
100
SNAP RING DRIVE SHAFT
104
INTERMEDIATE FLANGE OUTPUT FLANGE
108
GASKET , Replaced By: A0002642980
108
GASKET , Replaced By: A3432640479
108
GASKET CASE,REAR
108
GASKET
112
SHIM AS REQUIRED 0.80 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
112
SHIM AS REQUIRED 1.20 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
112
SHIM AS REQUIRED 1.00 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
112
WASHER SPEEDOMETER DRIVE 0.60 MM
112
SHIM , Replaced By: A0002720776
116
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
120
SEAL RING REAR P.T.O.
120
SEAL RING , Replaced By: A0089973747
124
COUPLING FLANGE90 MM
128
SHIM FLANGE TO TRANSMISSION CASE COVER
132
SEAL RING FLANGE TO TRANSMISSION CASE COVER
132
SEALING CORD , Replaced By: A0119979145
136
SPRING WASHER CAB FLOOR
138
SCREW BRACKET TO FRAME
142
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
142
LOCK WASHER , Replaced By: N912006012000
144
NUT COVER TO FLANGE
144
NUT
148
GASKET , Replaced By: A0002642980
148
GASKET CASE,REAR
148
GASKET
152
LEVER LATERAL P.T.O
152
SHIFT LEVER
156
SCREW , Replaced By: N304017008018
156
SCREW SUPPORT TO FENDER
160
NUT
999
FLANGE ,10/20879179, 50/60880935
999
P.T.O. WITH SPEEDOMETER DRIVE, RATIO,1.43 X ENGINE REVOLUTIONS
999
P.T.O. WITH SPEEDOMETER DRIVE, RATIO,1.43 X ENGINE REVOLUTIONS
999
P.T.O. RATIO0.81 X ENGINE REVOLUTIONS 0.81 X N MOTOR
999
P.T.O. RATIO0.81 X ENGINE REVOLUTIONS 0.81 X N MOTOR
999
TRANSMISSION CASE , Replaced By: A0002641728
999
P.T.O.N 70-3 B
999
P.T.O.N 70-3B
999
TRANSMISSION , Replaced By: A3552601301
999
SPACER TUBE ,10/20879179, 50/60880935
999
SHAFT SPEEDOMETER DRIVE,10/20879179, 50/60880935
999
SHIFT LEVER LATERAL P.T.O
999
HOUSING , Replaced By: A0002642328
999
HOUSING P.T.O.
999
HOUSING P.T.O.
999
TRANSMISSION CASE COVER
999
TRANSMISSION , Replaced By: A0022612200, +001A6202600705, +001A3432640024, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022612300, +001A6202600705, +001A0002640624, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION CASE TRANSMISSION CASE REAR COVER
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600005, +001A3432640024, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600105
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600305
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600105
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600305
999
TRANSMISSION , Replaced By: A0022612300, +001A0002600205
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600405
999
TRANSMISSION , Replaced By: A0022612200, +001A0002602505, +001A0002640624, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022612300, +001A0002602605, +001A0002640624, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3552601201, +001A0002602505, +001A0002647680, +001A0002681130, +001N000933008150, +001N000934008010
999
TRANSMISSION , Replaced By: A3552601301, +001A0002602605, +001A0002647680, +001A0002681130, +001N000933008150, +001N000934008010
999
NUT SPEEDOMETER
999
TRANSMISSION , Replaced By: A0022615200, +001A0002600005, +001A3552600337, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022615300, +001A0002600005
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSIONS 6-80, FOR COMPONENT PARTS, SEE SPARE PARTS LIST
999
TRANSMISSIONS 6-80,10/20879180, 50/60880936
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A0022612200, +001A0002600005, +001A3432640024, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022612300, +001A0002600005, +001A0002640624, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A3552601201, +001A0002600005, +001A3602640024, +001A0002647680, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A0022614400, +001A0002600005
999
TRANSMISSION , Replaced By: A3552601201, +001A6202600705, +001A3602640479, +001A0002681130, +001N000931008047, +001N000934008010
999
TRANSMISSION , Replaced By: A3552601301, +001A6202600705, +001A3602640024, +001A3602640479, +001N000931008047, +001N000934008010
999
P.T.O. , Replaced By: A0002602505
999
P.T.O. , Replaced By: A0002602605
999
TRANSMISSION , Replaced By: A3552601301, +001A0002602605, +001A0002647680, +001A0002681130, +001N000933008150, +001N000934008010
999
TRANSMISSION CASE , Replaced By: A0002641728, +001A0002643380, +004A0009909122
999
TRANSMISSION CASE
999
SHIFT LEVER TRANSMISSION CASE
999
COVER ,290281, Replaced By: A0002642111, +001A0002647680
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017012020
999
BALL PIVOT
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW END PIECE TO EXHAUST PIPE M 12X30
