Поз.
Артикул
Описание

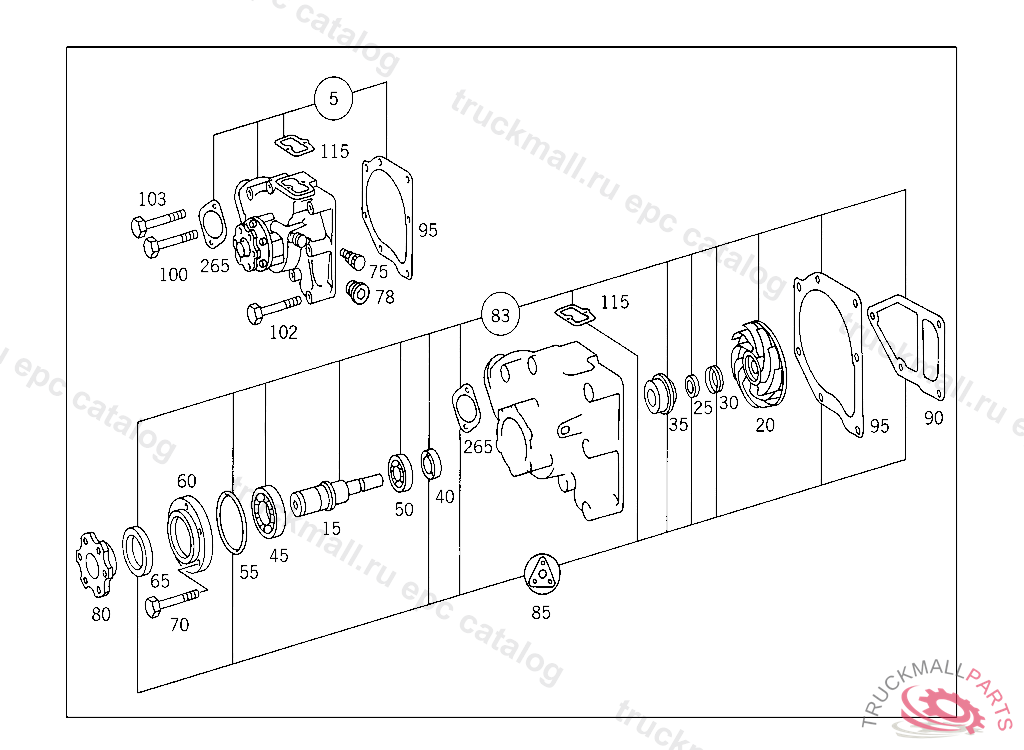

5
WATER PUMP WITH GASKETS
15
SHAFT
20
IMPELLER , ORDER 360 200 01 04 REPAIR KIT
25
THRUST RINGTO 000 201 66 19/72 19
30
BOOTTO 000 201 66 19,000 201 72 19
35
SEAL WITH THRUST RING AND BOOT
35
SEAL , Replaced By: A0002019919
35
SEAL , Replaced By: A0002019219
35
SEAL , Replaced By: A0012011719
35
SEAL , Replaced By: A0012011819
35
SEAL , Replaced By: A0012011919
35
SEAL , Replaced By: A0012011919
35
SEAL , Replaced By: A0012012619
40
SEAL RING
40
SEAL RING
45
GROOVED BALL BEARING INTERMEDIATE BEARING
50
GROOVED BALL BEARINGTO 001 466 15 01
55
SEAL RING WATER PUMP
60
SEAL HOLDER
60
SEAL HOLDER
65
SEAL RING
65
SEAL RING
70
SCREW COVER PLATE TO BRACKET
75
GREASE NIPPLE
78
SCREW PLUG STABILIZER
80
HUB
83
IMPELLER PARTS KIT
85
GASKET KIT WATER PUMP
85
GASKET KIT , Replaced By: A3602004201, +001A3522032380, +001A3602030180, +001A3602030280
90
GASKET
95
GASKET WATER PUMP TO CYLINDER CRANKCASE
100
SCREW CLUTCH OPERATION,4 282707
100
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
102
SCREW , Replaced By: N304017010035
102
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
103
SCREW BRACKET TO BEARING BRACKET, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 426006
115
GASKET1 MM
265
GASKET COOLING WATER LINE TO WATER PUMP
999
SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002018019
999
THERMOSTAT ELEMENT ,078816, Replaced By: A0032032875, +001A3522032280
999
THERMOSTAT ELEMENT , 314.9 259272 352.9 437435, Replaced By: A0032033175, +001A3522032280
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032032975
999
LINE ,035017, Replaced By: A3602001652, +001N000933008030, +001N007349008002
999
PIPE ELBOW ,110172, Replaced By: A3602001018, +002N000931008131
999
LINE UPPER COOLING WATER LINE
999
FLANGE HEATING CONNECTION LOCK,5 301949
999
HOUSING
