Поз.
Артикул
Описание

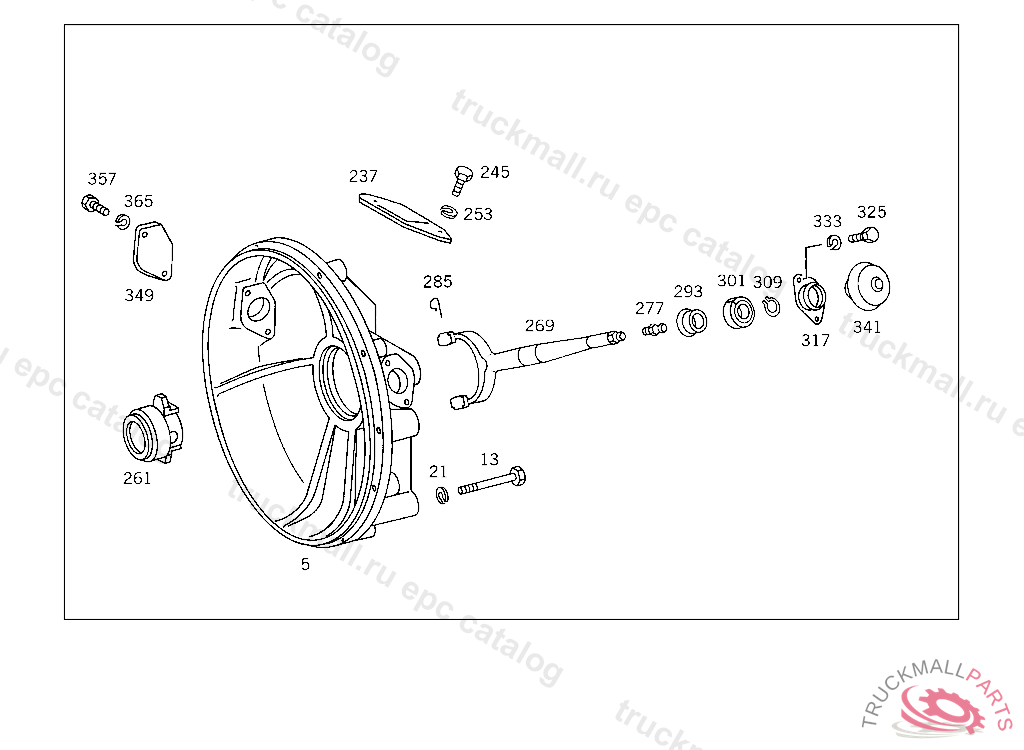

5
BELL HOUSING
13
SCREW BRACKET TO FRAME SIDE MEMBER
21
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
237
END COVER TOP,4 696330
245
SCREW , Replaced By: N304017006018
245
SCREW COVER PLATE TO COVER PLATE M 6 X 12
253
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
261
RELEASE BEARING CLUTCH
269
RELEASE LEVER
277
BALL PIVOT
285
SPRING RELEASE BEARING TO RELEASE LEVER
293
BOOT INSIDE
301
JOINT BEARING
309
SNAP RING BEARING TO RELEASE YOKE
317
COVER RELEASE YOKE TO BEARING BRACKET
325
SCREW , Replaced By: N304017008016
325
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
333
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
341
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
349
FLANGE CLUTCH BRAKE
357
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
357
SCREW , Replaced By: N304017008016
365
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
ROLLERTO 344 586 70 25
999
RIVET , Replaced By: A0002521275
999
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
999
RIVET , Replaced By: A0002522075
999
SPRING
999
CLAMP , Replaced By: A0002523227
999
LEAF SPRING , Replaced By: A0002523419
999
NUT , Replaced By: A0002523372
999
HOUSING
999
CLUTCH LINING , Replaced By: A0002528810
999
CLUTCH LINING , Replaced By: A0012524310
999
CLUTCH PRESSURE PLATE , Replaced By: A0032501604
999
CLUTCH DISC , Replaced By: A0042509003
999
CLUTCH PRESSURE PLATE
999
RELEASE BEARING , Replaced By: A3052500615
999
BOOT , UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION, Replaced By: A3142540197
