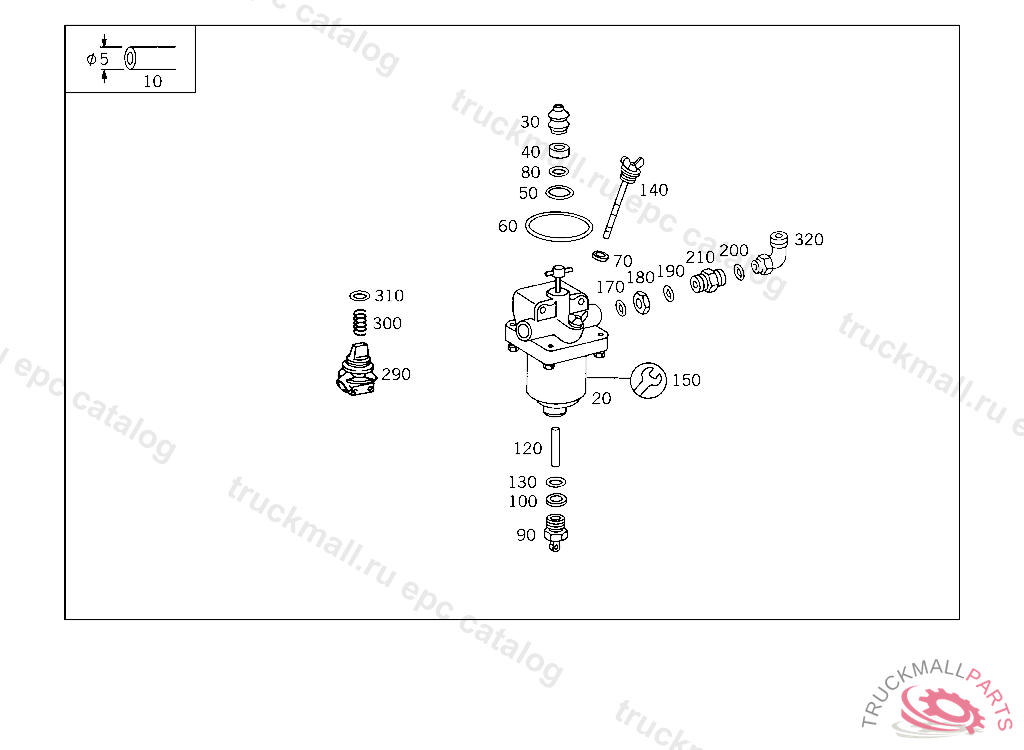

Поз.
Артикул
Описание
10
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
10
LINE , Replaced By: A0005516256
20
ANTI-FREEZE DEVICE , Replaced By: A0004312615
20
ANTI-FREEZE DEVICE , Replaced By: A0004312615
20
ANTI-FREEZE DEVICE
30
PROTECTIVE CAPWEST 432 199 015 0,030 0
40
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
40
SEAL RINGTO 000 431 26 15,WEST 432 199 030 0
50
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
60
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
70
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
80
SEAL RINGTO 001 431 37 05,4 375193
90
VALVE. DRAIN VALVE DRAIN
90
VALVE DRAIN, Replaced By: A0004322407
90
VALVE DRAIN, Replaced By: A0004322107
100
WASHER ANTI-FREEZE DEVICE DRAIN
120
WICK , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
130
SEAL RING FUEL LINE TO FEED PUMP
140
SCREW PLUG WITH DIPSTICK
150
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
150
REPAIR KITWEST 432 199 015 0,432 199 030 0
170
SEAL RING LINE CONNECTION
180
NUT CHECK VALVE TO AIR RESERVOIR
190
THRUST RING CHECK VALVE TO AIR RESERVOIR
190
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
200
O-RING CHECK VALVE TO AIR RESERVOIR
210
FITTING SHUTTLE VALVE,CONNECTION: "20"
290
VALVE 3/2-WAY WABCO
290
VALVE 3/2-WAY KNORR
290
VALVE 3/2-WAY BOSCH
290
VALVE 3/2-WAY VOSS
300
SPRING INSIDE WABCO
310
SEAL RING INSIDE WABCO
310
SEAL RING TOP WABCO
320
FITTING AIR RESERVOIR,CONNECTION: "13"
320
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
320
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
SCREW PLUG
