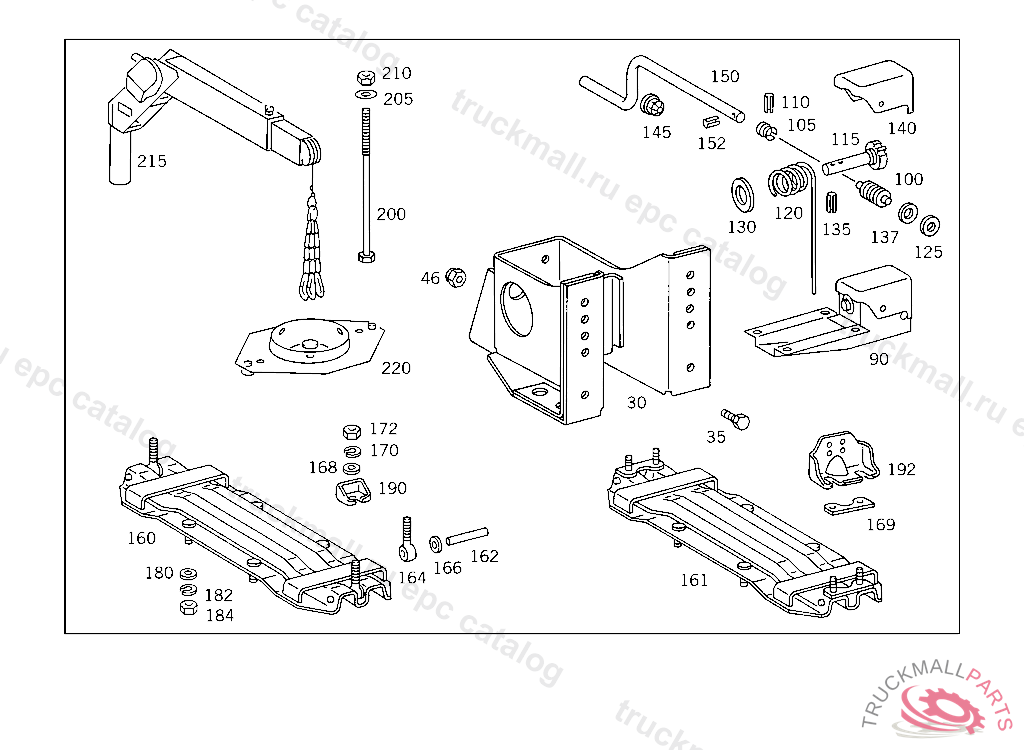

Поз.
Артикул
Описание
30
BRACKET , Replaced By: A3854000539, +001A3854000439, +003N000934018006, +003N007349019002, +003N912004018101
30
BRACKET , Replaced By: A3854000039
30
SPARE WHEEL CARRIER
35
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
46
NUT STRAP TO BRACKET
46
NUT , Replaced By: N910113010000
90
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3814001639
90
SPARE WHEEL HOIST
100
WORM
100
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
105
BUSHING
110
CLAMPING SLEEVE CRANK TO BUSHING
115
STOP GEAR ,5 127459, Replaced By: A6204030483, +001A6204030085, +001A6179900540
115
STOP GEAR SPARE WHEEL HOIST
120
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
120
CABLE , Replaced By: N083331008500
120
WIRE CABLE
125
WASHER WORM AND RATCHET WHEEL TO BRACKET
125
WASHER WORM AND SHAFT TO BRACKET,5 127459
130
WASHER WORM AND SHAFT TO BRACKET
135
CLAMPING SLEEVE , Replaced By: N308752008000
135
CLAMPING PIN BRACKET TO SUPPORT
137
DISC SPRING WORM AND SHAFT TO BRACKET
140
COVER PLATE SPARE WHEEL HOIST
145
BUSHING CRANK
150
CRANK SPARE WHEEL HOIST
150
CRANK , Replaced By: A3814030045
152
CLAMPING SLEEVE CRANK TO BUSHING
160
BRACKET , Replaced By: A3814002039
160
BRACKET SPARE WHEEL CARRIER
161
BRACKET ,4 369655-4 613856, Replaced By: A3814002639, +004N000934020001, +004N007349021000, +004N912004020100
161
BRACKET SPARE WHEEL
162
PIN AT BRACKET
162
PIN ,4 179002-4 369654
164
EYEBOLT , FROM CHASSIS 4 369655-4 613856
164
SCREW , Replaced By: A6519900023
164
EYEBOLT
164
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
166
WASHER ,4 179002-4 369654
168
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
169
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
170
LOCK WASHERROCKINGER TYP 59 G140,59 G150
172
NUT ,4 179002-4 369654
172
NUT , Replaced By: N308673016001
172
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
180
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
180
WASHER BRACKET TO SPARE WHEEL CARRIER
180
WASHER SPARE WHEEL TO BRACKET
182
LOCK WASHER BELL HOUSING TO TRANSMISSION
182
LOCK WASHERROCKINGER TYP 59 G140,59 G150
182
LOCK WASHER SPARE WHEEL TO BRACKET
184
NUT REAR SPRING TO REAR AXLE
184
NUT , Replaced By: N308673016001
184
NUT , Replaced By: N308673020002
184
NUT , Replaced By: N308674020000
184
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
184
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
190
SUPPORT SPARE WHEEL HOIST
192
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
200
SCREW SPARE WHEEL TO CROSS MEMBER
205
SHIM SPARE WHEEL TO CROSS MEMBER
210
NUT STRAP TO SUPPORT
999
NUT SUPPORT TO SIDE MEMBER
999
RIVET REAR CROSS MEMBER 12X42 MM
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
VALVE CAP
999
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
999
SCREW , Replaced By: N308676012012
999
COTTER PIN STRAP TO CONSOLE
999
NUT VALVE TO DISC WHEEL
