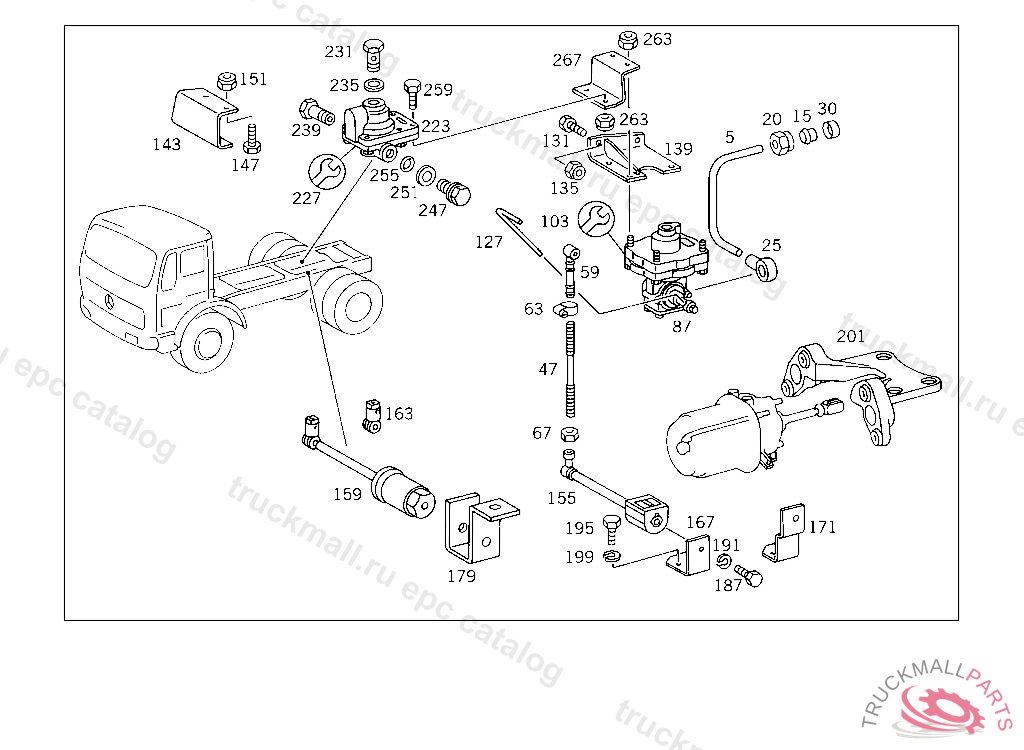

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
15
GLAND , Replaced By: A0019901967
15
SEAL CONE LINE CONNECTION
20
UNION NUT LINE CONNECTION, Replaced By: N000000006239
20
UNION NUT LINE CONNECTION
25
BANJO UNION , Replaced By: N915052009009
25
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
30
SLEEVE LINE CONNECTION
47
ROD , Replaced By: N900331008261
47
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
59
CONNECTOR PULL ROD TO LEVER
63
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
63
CLAMP , Replaced By: N000000000665
67
NUT
87
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
103
REPAIR KITTO 001 431 14 12
127
LEVER BRAKE POWER REGULATOR
127
LEVER
127
LEVER , Replaced By: A6204310439
131
SCREW , Replaced By: N304017008021
131
SCREW PIPE CLAMP
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
135
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
139
BRACKET BRAKE POWER REGULATOR
143
BRACKET BRAKE POWER REGULATOR,4 428485
147
SCREW , Replaced By: N308676012012
147
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
151
NUT SUPPORT TO SIDE MEMBER
155
METAL SPRING BELLOWS FROM BRAKE POWER REGULATOR TO BRACKET,4 721869 DELIVER ADDITIONALLY:1X 000961 012047,10/20 UP TO CHASSIS 5 120370,50/60 UP TO CHASSIS 5 114395
155
METAL SPRING BELLOWS ,5 557359
159
METAL SPRING BELLOWS LOAD-DEPENDING BRAKE, DELIVER ADDITIONALLY:1X 000961 012047,10/20 UP TO CHASSIS 5 120370,50/60 UP TO CHASSIS 5 114395
163
BALL SOCKETTO 000 431 13 18
167
BRACKET METAL SPRING BELLOWS
171
BRACKET METAL SPRING BELLOWS
171
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3834311040
179
BRACKET METAL SPRING BELLOWS,4 428485
187
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
187
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
187
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
187
SCREW , Replaced By: N308676012012
191
LOCK WASHER FITTING TO BRACKET
195
SCREW
195
SCREW , Replaced By: N304017008021
195
SCREW , Replaced By: N304017010051
195
SCREW PIPE CLAMP
199
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
201
BEARING BRACKET COMBINATION CYLINDER, IN CASE OF STEEL AXLE
223
VALVE (REDUCTION VALVE) 1,15:1
227
REPAIR KIT REDUCTION VALVE
231
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
235
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
239
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
239
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
247
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
251
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
255
SEAL RING
255
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
259
SCREW , Replaced By: N304017008027
259
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
263
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
263
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
263
NUT , Replaced By: N913004008001
267
BRACKET REDUCTION VALVE TO BRAKE POWER REGULATOR BRACKET,4 7524024 794296
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHING
999
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL, NOT USED
999
LEVER TOOTHED
999
LEVER
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
PISTONTO 000 431 43 12,000 431 44 12
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
SPRING
999
SPRING
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
BRACKET OPERATING ROD,4 1880904 478329
999
BRACKET METAL SPRING BELLOWS
999
BRACKET METAL SPRING BELLOWS
999
WEB
999
BRACKET METAL SPRING BELLOWS,4 4284864 635939
