Mercedes A4752000027 - LU KUPPLUNG - LINNIG

O 500 M / 1725 382.184

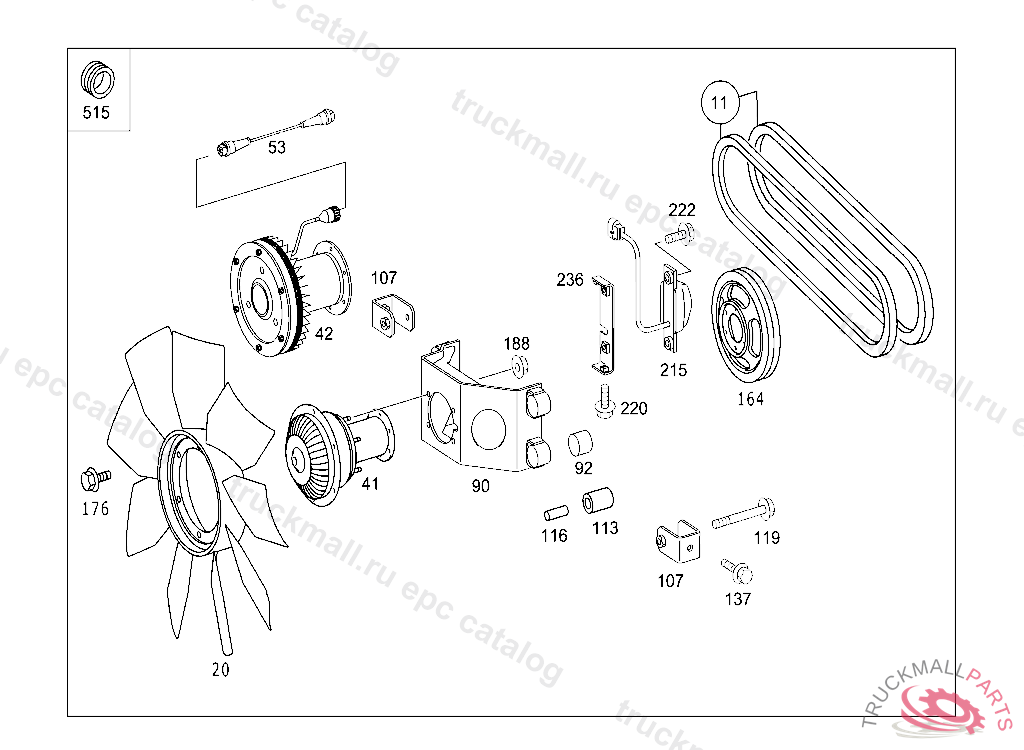

50 RADIATOR - 540 FAN DRIVE IL. 3

Поз.
Артикул
Описание
20
A4752050706
FAN
20
A4752050006
41
A4752000027
42
A4752000127
42
A4752000227
COUPLING ELECTROMAGNETIC, Replaced By: A3842000027, +001A6345403207
42
A3842000027
VISCOUS CLUTCH ELECTROMAGNETIC
53
A6345403207
CABLE HARNESS POWER SAVER FAN1200MM
107
A3825000046
CLAMP
113
A3028880224
MOUNTING
116
A3028880026
SLEEVE
119
N910105012017
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
164
A6345060010
PULLEY
176
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
188
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
215
A3825427417
SENDER UNIT ELECTRIC BELT MONITORING INDICATOR,C 082498
