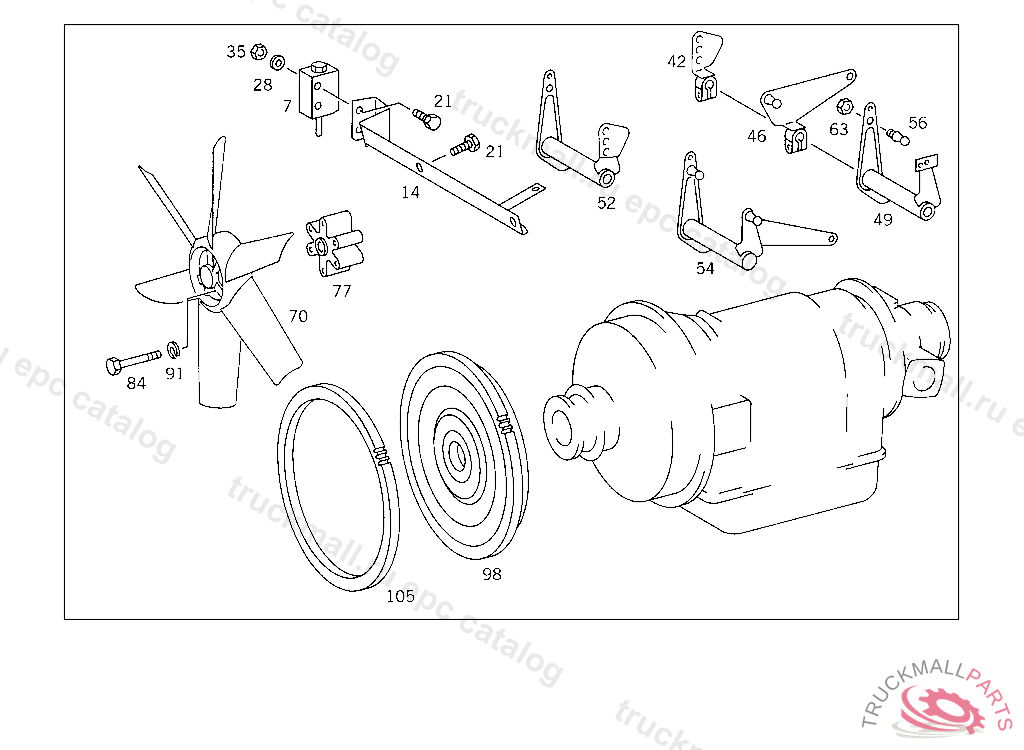

Поз.
Артикул
Описание
7
CYLINDER ,166642 314 251992 352 452948
14
BRACKET
21
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
28
WASHER EXHAUST MUFFLER TO STRAP
28
WASHER , Replaced By: N000125008443
35
NUT
35
NUT , Replaced By: N304032008006
42
LEVER INJECTION PUMP CONTROL,091545
46
LEVER INJECTION PUMP CONTROL,091546
49
SHAFT WITH BUSHING
52
SHAFT WITH BUSHING,091545
54
SHAFT WITH BUSHING,091546
56
BALL PIVOT ROD TO INJECTION PUMP LEVER
63
NUT BALL PIVOT TO LEVER
70
FAN
77
INTERMEDIATE PIECE
84
SCREW STRAP TO BRACKET
91
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
98
FLYWHEEL WITH RING GEAR,092329
98
FLYWHEEL WITH RING GEAR,092328
98
FLYWHEEL WITH RING GEAR,092329
98
FLYWHEEL WITH RING GEAR,092328
105
RING GEAR
999
FAN , Replaced By: A3602050906
999
SHAFT
999
SHAFT
999
LEVER
