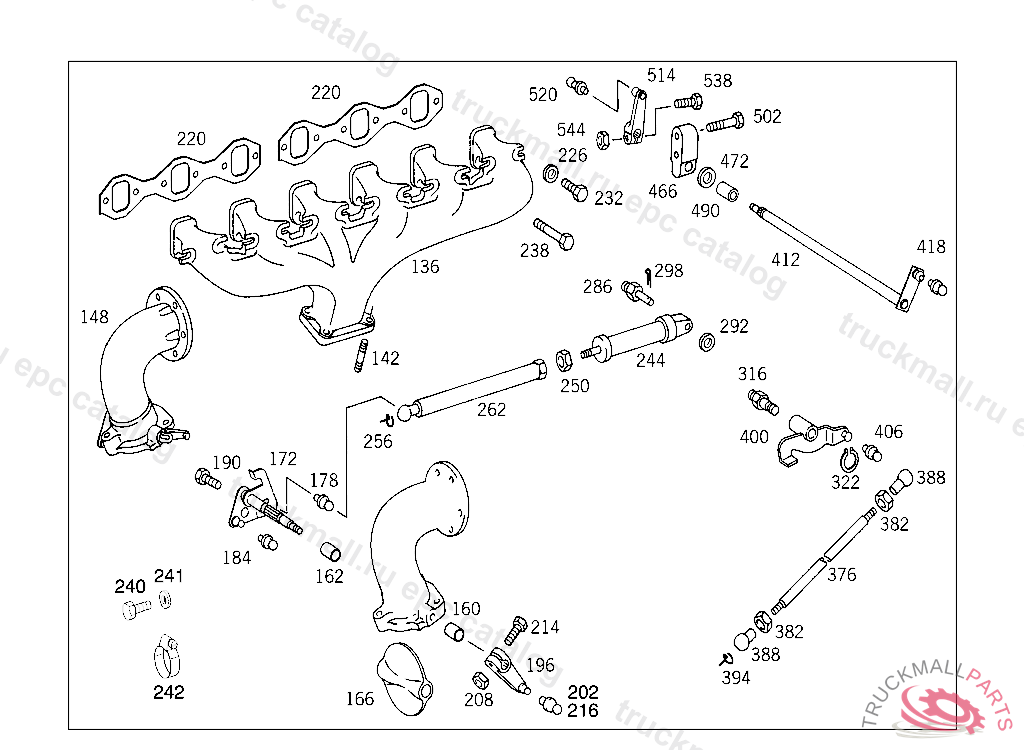

Поз.
Артикул
Описание
136
EXHAUST MANIFOLD
142
STUD BOLT EXHAUST MANIFOLD TO CYLINDER HEAD M 10X25
142
STUD BOLT , Replaced By: N000939010138
148
ELBOW WITH EXHAUST BRAKE
160
BUSHING
162
BUSHING
166
THROTTLE VALVE
166
THROTTLE VALVE EXHAUST BRAKE
172
SHAFT THROTTLE VALVE
178
BALL PIVOT
184
BALL PIVOT
190
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
190
SCREW , Replaced By: N304017008016
196
LEVER
202
BALL PIVOT
208
NUT IN CASE OF SUBSEQUENT INSTALLATION
208
NUT , Replaced By: N304032005005
214
SCREW FROM BACK-UP LAMP TO REAR CROSS MEMBER
216
BALL PIVOT
216
BALL PIVOT
220
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
226
WASHER STRUT TO CROSS MEMBER
226
WASHER , Replaced By: N007349010007
232
SCREW SUPPORT WITH EDDY CURRENT BRAKE TO SUPPORT
238
SCREW BRACKET TO INTAKE MANIFOLD, NOT USED
238
SCREW LINE MOUNTING M 10X50
238
SCREW , Replaced By: N304014010013
238
SCREW PRESSURE LIMIT VALVE TO BRACKET M 10X115
240
SCREW , Replaced By: N304017008016
240
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
241
WASHER EXHAUST MUFFLER TO STRAP
241
WASHER , Replaced By: N000125008443
242
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
242
LOOM TIE , Replaced By: A0069976090
242
CLAMP , Replaced By: A0059971490
242
CLAMP , Replaced By: A0069974490
242
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
242
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
244
CYLINDER CLUTCH OPERATION, COMPONENT PARTS NOT AVAILABLE
250
NUT , Replaced By: N304035012002
250
NUT
256
SECURING CLIP. CIRCLIP
262
INTERMEDIATE PIECE COMPRESSED AIR CYLINDER
286
PIN ,938 089545
292
WASHER EXHAUST MUFFLER TO STRAP
292
WASHER , Replaced By: N000125008443
298
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
298
COTTER PIN LEVER TO ROD
316
PIN
322
LOCK RINGTO 000 553 37 01,000 553 39 01,
376
ROD
382
NUT BALL PIVOT TO LEVER
388
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
394
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
400
LEVER EXHAUST BRAKE CONTROL
406
BALL PIVOT LEVER
412
LEVER
418
BALL PIVOT LEVER
466
BEARING BRACKET
472
WASHER
490
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
490
SPACER TUBE
502
SCREW , Replaced By: N304017008018
502
SCREW SUPPORT TO FENDER
514
LEVER
520
BALL PIVOT
538
SCREW FROM BACK-UP LAMP TO REAR CROSS MEMBER
544
NUT IN CASE OF SUBSEQUENT INSTALLATION
544
NUT , Replaced By: N304032005005
999
HOSE ,091075 FROM ENGINE 091076,SEE CHASSIS MICROFICHE
999
BRACKET BREATHER LINE,108316
999
SHAFT
999
AIR INTAKE PIPE ,091075 FROM ENGINE 091076,SEE CHASSIS MICROFICHE
999
BRACKET AIR INTAKE PIPE,091075 FROM ENGINE 091076,SEE CHASSIS MICROFICHE
999
SCREENING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 108315, Replaced By: A3600980434
999
ELBOW
999
LEVER EXHAUST-BRAKE THROTTLE VALVE,089824
999
BRACKET THROTTLE VALVE STOP TO FLANGED ELBOW,089824
999
GUIDE SIGN
999
WASHER , Replaced By: A4239900040
999
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
999
WASHER , Replaced By: N007349010003
999
BALL PIVOT , Replaced By: A3129910120
999
LOCK RING , Replaced By: N900055020303
999
LOCK RING PIN TO BRACKET,K 142858
