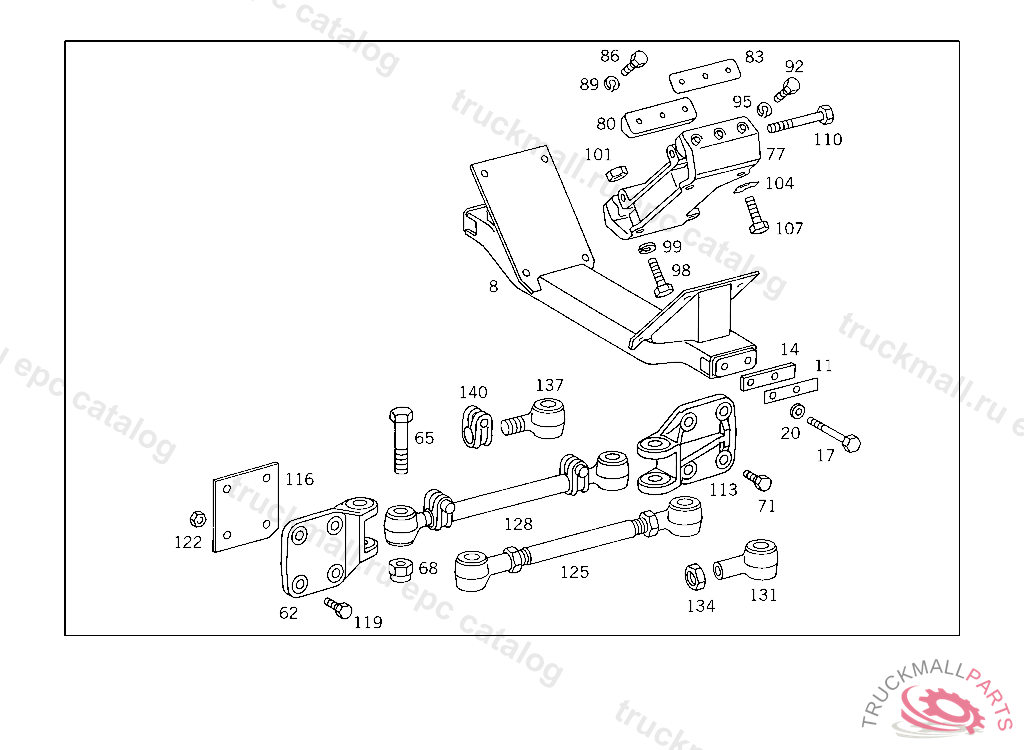

Поз.
Артикул
Описание
8
ENGINE SUPPORT ON CLUTCH END
11
SHIM AS REQUIRED 5.0 MM
11
SHIM AS REQUIRED 4.0 MM
11
SHIM AS REQUIRED 3.0 MM
14
PLATE ENGINE SUPPORT TO SUBSTRUCTURE
17
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
20
WASHER
62
BRACKET ENGINE ALONGSIDE FIXING
65
STUD PULL ROD TO BEARING BRACKET
68
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
71
SCREW BATTERY CASE TO SIDE MEMBER
77
RUBBER MOUNTING RIGHT
77
RUBBER MOUNTING LEFT
80
STOP ENGINE MOUNTING
83
WASHER1 MM
83
WASHER2 MM
86
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
86
SCREW LINES TO BRACKET
89
LOCK WASHER RAIL TO BATTERY SUPPORT
92
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
95
LOCK WASHER RAIL TO BATTERY SUPPORT
98
SCREW BATTERY CASE TO SIDE MEMBER
99
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
101
NUT , Replaced By: N308673014001
104
LOCK PLATE DOUBLE LEVER TO TRANSMISSION CASE COVER,585681
107
SCREW , Replaced By: N308676014008
110
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
113
BRACKET ENGINE ALONGSIDE FIXING
116
SHIM
119
SCREW BATTERY CASE TO SIDE MEMBER
122
NUT BRACKET TO SIDE MEMBER
125
ROD ENGINE ALONGSIDE FIXING
128
ROD ENGINE ALONGSIDE FIXING
131
ROD ENDTO 364 240 01 25
134
NUT STEERING WHEEL TO STEERING COLUMN
137
ROD END RIGHT TO 364 240 76 25
137
ROD END LEFT TO 364 240 76 25
140
CLAMPTO 364 240 76 25
