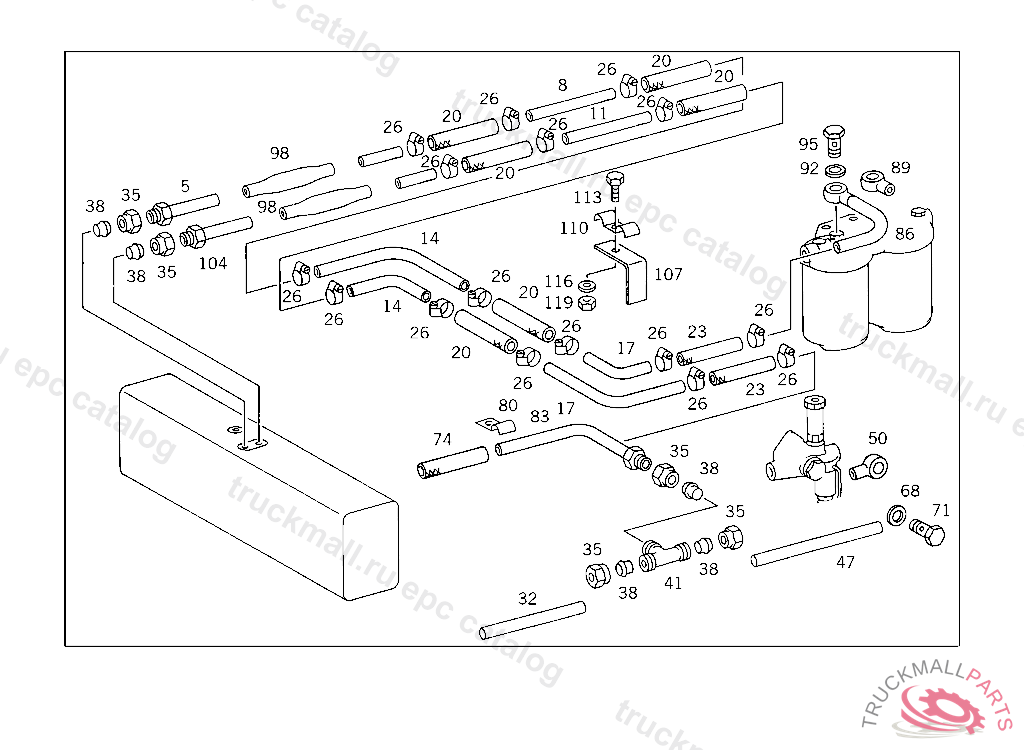

Поз.
Артикул
Описание
5
LINE FEED
8
LINE LESS CONNECTIONS 5300 MM
11
LINE LESS CONNECTIONS 1200 MM
14
LINE LESS CONNECTIONS 880 MM
17
LINE LESS CONNECTIONS 1660 MM
20
HOSE FEED LINE AND RETURN LINE
23
HOSE
26
CLAMP AS REQUIRED
26
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
32
LINE FROM HOSE TO T-FITTING,C 055759
35
NUT. UNION NUT RETURN
38
SEAL CONE , 344.058 UP TO SHASSIS 659793
41
T-FITTING
47
LINE FROM T-FITTING TO FUEL PUMP,C 055759
50
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
68
SEAL RINGTO 000 553 03 05,000 553 18 05,
71
HOLLOW SCREW
74
HOSE , Replaced By: A3769978182
74
HOSE , ORDER BY THE METER
80
CLAMP LINE MOUNTING
83
LINE FROM HOSE TO T-FITTING
86
LINE FROM FUEL FILTER TO RUBBER HOSE,C 055759
89
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
92
SEAL RINGTO 000 553 03 05,000 553 18 05,
95
HOLLOW SCREW
98
HOSE
104
LINE FROM CONNECTION POINT I TO FUEL TANK, RETURN
107
BRACKET , Replaced By: A3812950440
110
CLAMP
113
SCREW OVERLOAD PROTECTOR TO BRACKET
116
WASHER , Replaced By: N009021006208
119
NUT , Replaced By: N913004006001
