Поз.
Артикул
Описание

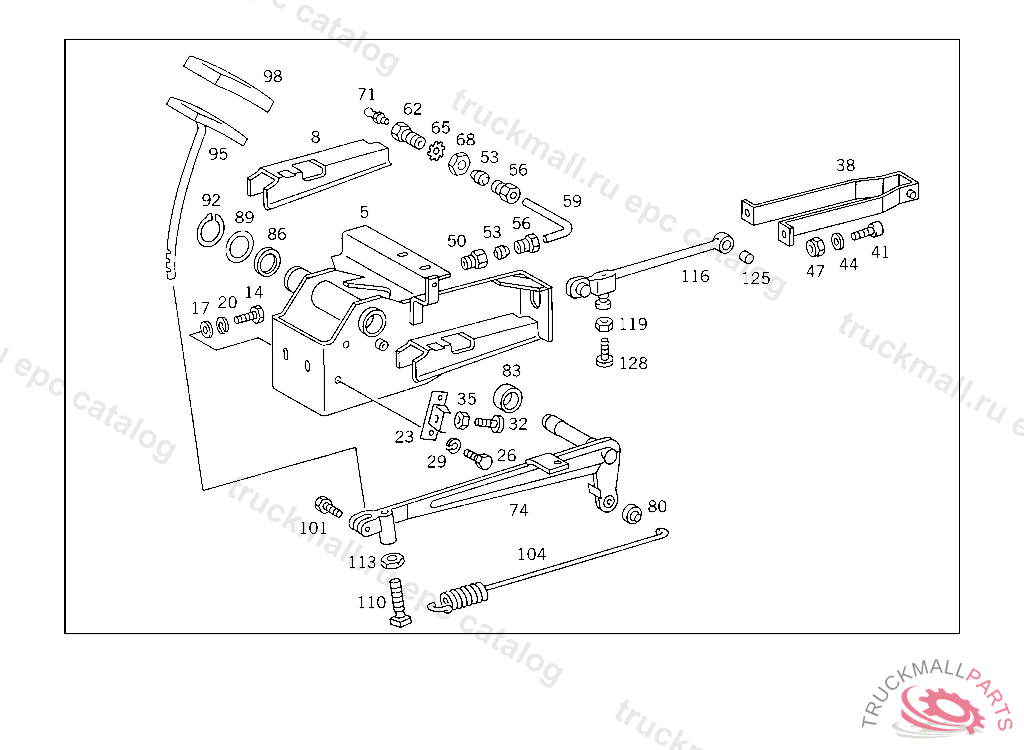

5
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
8
BRACKET
14
SCREW BRACKET TO SIDE MEMBER
17
WASHER GROUND CABLE
20
LOCK WASHER , Replaced By: N912004010102
23
BRACKET AT PEDAL ASSEMBLY BEARING BRACKET
26
SCREW PLUG SOCKET TO FRAME
29
LOCK WASHER RAIL TO BATTERY SUPPORT
32
STOP CLUTCH PEDAL STOP
35
NUT
38
BRACKET PEDAL ASSEMBLY
41
SCREW BRAKE LEVER TO BEARING BRACKET M 8X20
44
WASHER TRAILER PLUG SOCKET TO BRACKET
47
NUT BRACKET TO SIDE MEMBER
50
CONNECTOR TRAILER COUPLING,FRONTVOGEL
53
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
56
UNION SCREW RELEASE COLLAR LUBRICATION
59
PIPE PEDAL ASSEMBLY LUBRICATION
62
BULKHEAD FITTING RELEASE BEARING LUBRICATION
65
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
68
NUT , Replaced By: N308675014000
71
GREASE NIPPLE
74
PEDAL CLUTCH
80
JOINT BEARING , FROM IDENT NO. 000162 ALSO INSTALLED ON 000041,000047,000048,000105,000120
83
NEEDLE BEARING REAR DRIVE SHAFT
86
SEAL RING
89
WASHER CLUTCH PEDAL TO BEARING BRACKET
92
LOCK RING
95
PEDAL PLATE CLUTCH
98
PAD BRAKE PEDAL
101
SCREW , Replaced By: N304017010040
104
SPRING CLUTCH PEDAL RESET
110
SCREW SPRING TO CLUTCH PEDAL
113
NUT BRACKET TO SIDE MEMBER
116
CONNECTOR RELEASE SPRING
119
NUT
125
BUSHING RELEASE SPRING
125
BUSHING , UP TO CHASSIS 000161 EXCEPT FOR 000041,000047,000048 000105,000120
128
STOP CLUTCH PEDAL STOP
