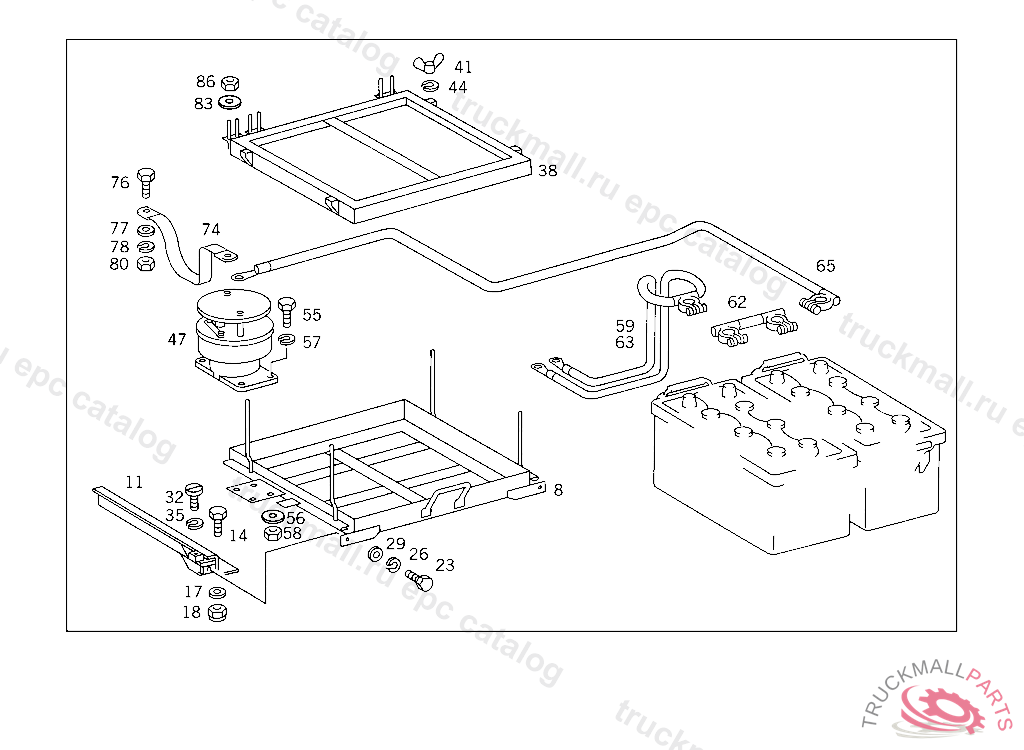

Поз.
Артикул
Описание
8
BATTERY CASE
11
RAIL LEFT,C 075509
11
RAIL RIGHT,C 075509
14
SCREW BRACKET TO SIDE MEMBER
17
WASHER SUPPORT TO FRAME,D 127794
18
NUT BRACKET TO SIDE MEMBER
23
SCREW , Replaced By: N304017010040
26
LOCK WASHER FUSE
29
WASHER GROUND CABLE
32
SCREW DETENT TO BATTERY CASE M 8X10
35
LOCK WASHER RAIL TO BATTERY SUPPORT
38
MOUNTING FRAME TOP
41
NUT , Replaced By: A3259900562
44
LOCK WASHER RAIL TO BATTERY SUPPORT
47
SWITCH BATTERY MASTER SWITCH,070378
47
SWITCH BATTERY MASTER SWITCH,070378
55
SCREW LINES TO BRACKET
56
WASHER BRACKET TO CAB REAR PANEL
57
LOCK WASHER RAIL TO BATTERY SUPPORT
58
NUT LEVER TO SHIFTING SHAFT
59
POSITIVE CABLE FROM BATTERY I TO STARTING MOTOR,C 075509
62
POSITIVE CABLE FROM BATTERY I TO BATTERY II,B 785653
65
NEG. CABLE FROM BATTERY II TO BATTERY MASTER SWITCH,C 075509
74
NEG. CABLE FROM BATTERY MASTER SWITCH TO GROUND,C 075509
76
SCREW , Replaced By: N304017010040
77
WASHER GROUND CABLE
78
LOCK WASHER FUSE
80
NUT BRACKET TO RETARDER
83
WASHER , Replaced By: N009021006208
86
NUT
999
