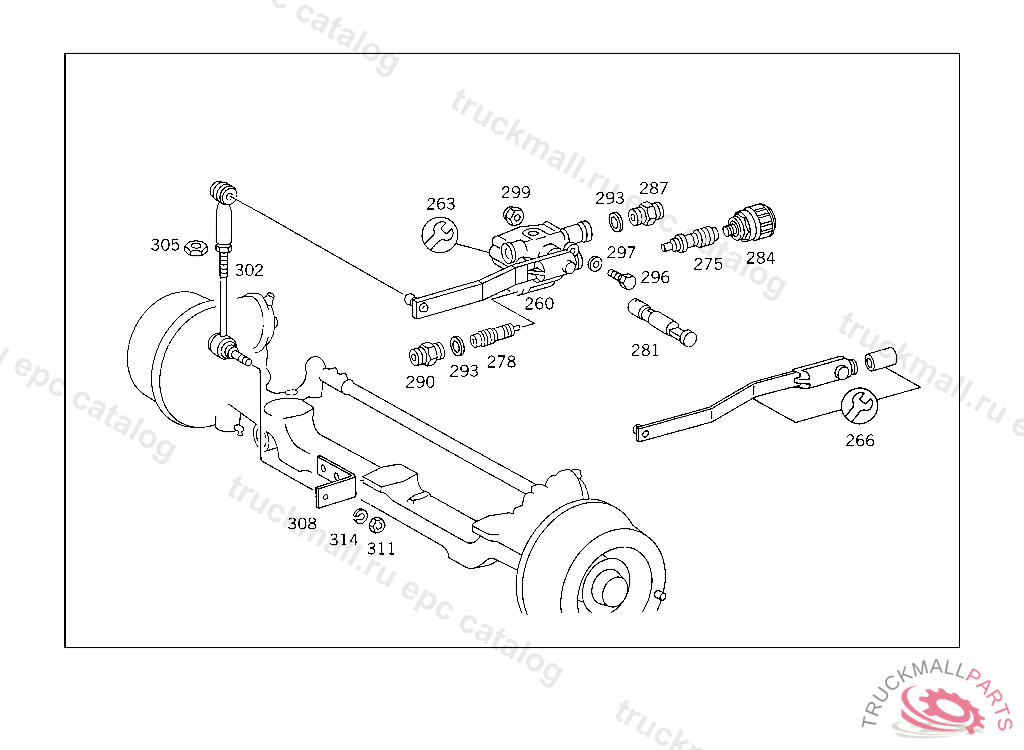

Поз.
Артикул
Описание
260
VALVE FRONT AXLE AIR SPRING VALVE
263
REPAIR KIT
263
REPAIR KIT , Replaced By: A0003200258
266
LEVER , Replaced By: A0003200127, +001A0003280014
266
LEVER (PARTS KIT)
275
VALVE INTAKE
278
VALVE EXHAUST
278
VALVE , Replaced By: A0003282125
281
SHAFT87 MM
284
FILTER
287
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
287
FITTING TWO-WAY VALVE,CONNECTIONS: "1","2"
287
SCREW-IN FITTING LINE CONNECTION
287
FITTING LINE CONNECTION, Replaced By: N000000006446
290
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
293
SEAL RING LINE CONNECTION
296
SCREW REGULATING VALVE TO BRACKET
297
WASHER TRAILER PLUG SOCKET TO BRACKET
299
NUT BRACKET TO SIDE MEMBER
302
ROD OPERATING ROD TO FRONT AXLE,C 077373
302
ROD REAR AXLE SELF-LEVELLING DEVICE
305
NUT , Replaced By: N304032008006
308
BRACKET DELIVERY LINE TO CROSS MEMBER, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
311
NUT , Replaced By: N304032008006
314
LOCK WASHER RAIL TO BATTERY SUPPORT
999
SEAL RING
999
SEAL RING
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
