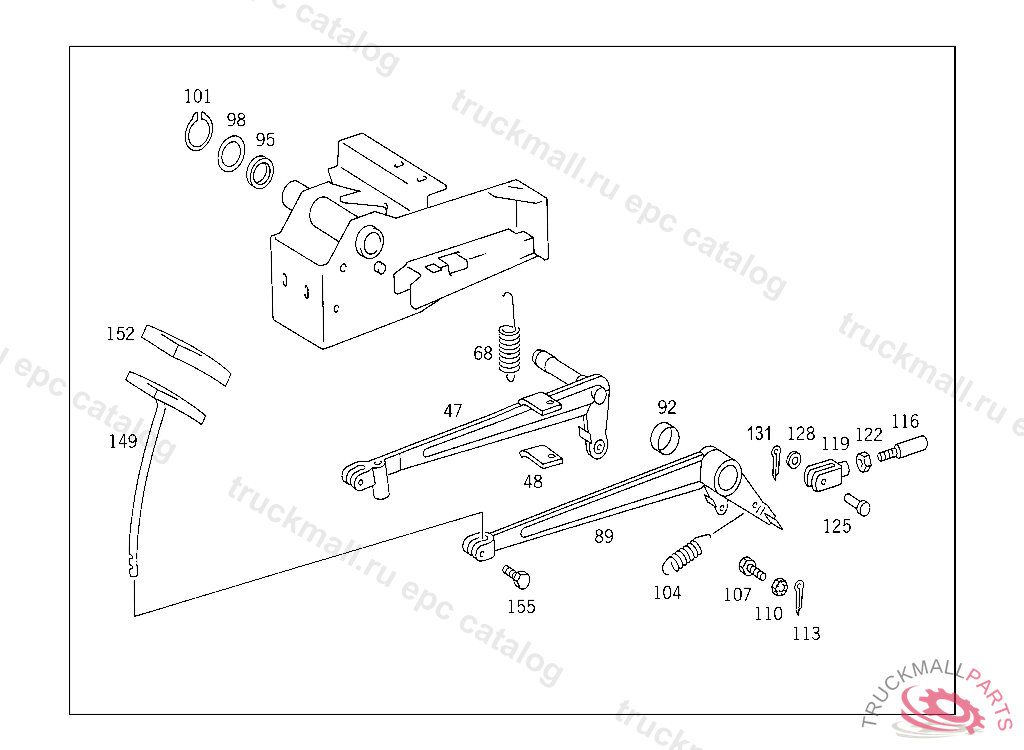

Поз.
Артикул
Описание
47
PEDAL (CLUTCH PEDAL)
48
BRACKET
68
SPRING , Replaced By: A3649937010
89
PEDAL BRAKE
92
BUSHING RELEASE SHAFT,TOP 35X39 MM
95
SEAL RING BRAKE PEDAL TO 301 290 02 18
98
WASHER CLUTCH PEDAL TO BEARING BRACKET
101
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
104
SPRING BRAKE PEDAL RELEASE SPRING
116
ROD FROM BRAKE PEDAL TO BRAKE VALVE
119
YOKE , Replaced By: A0009961401
122
NUT BRACKET TO RETARDER
125
PIN ROD TO BRAKE PEDAL
128
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
131
COTTER PIN PISTON ROD TO BRAKE PEDAL
149
PEDAL PLATE BRAKE
152
PAD BRAKE PEDAL
155
SCREW , Replaced By: N304017010040
