Поз.
Артикул
Описание

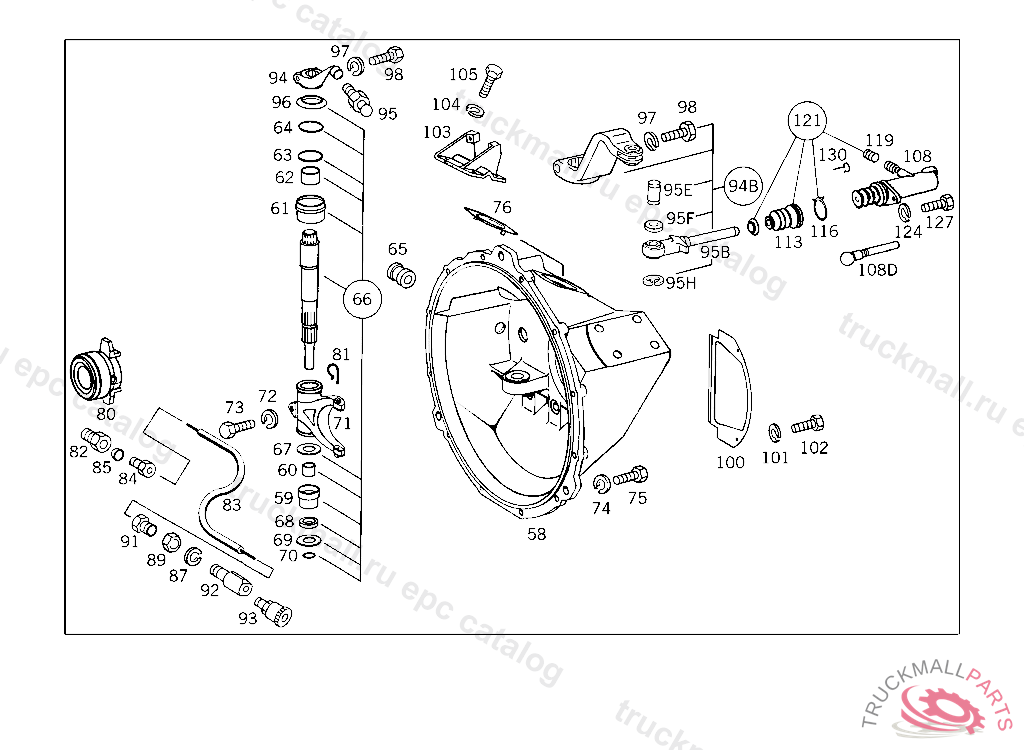

58
HOUSING BELL HOUSING WITH BUSHINGS
58
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
58
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 743985, Replaced By: A3972500305, +001A6202420601, +001A6202420701, +004N000960018027, +004N000960018107
59
BUSHING RELEASE SHAFT,BOTTOM
60
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
61
BUSHING RELEASE SHAFT,TOP
61
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
62
BUSHING RELEASE SHAFT,TOP 35X39 MM
63
SEAL RING RELEASE SHAFT,TOP
63
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
63
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
64
COVER PLATE RELEASE SHAFT,TOP
64
COVER PLATE RELEASE SHAFT,TOP
65
PLUG BELL HOUSING
65
PLUG BELL HOUSING
66
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
66
REPAIR KIT , Replaced By: A3892500014
66
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
66
SHAFT (PARTS KIT),RELEASE SHAFT
67
WASHER AS REQUIRED 0.80 MM
67
WASHER AS REQUIRED 0.90 MM
67
WASHER AS REQUIRED 1.00 MM
67
WASHER AS REQUIRED 1.10 MM
67
WASHER AS REQUIRED 1.20 MM
67
WASHER AS REQUIRED 1.3 MM
68
SEAL RING BOTTOM
69
SPACER WASHER RELEASE SHAFT,BOTTOM
70
LOCK RING RELEASE SHAFT,BOTTOM
71
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
71
RELEASE LEVER CLUTCH ACTUATION
72
LOCK WASHER FITTING TO BRACKET
73
SCREW , Replaced By: N000933012102
73
SCREW , Replaced By: N304017012018
74
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
75
SCREW RADIATOR M 10X45
76
COVER BELL HOUSING,4 743985
80
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
80
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
80
RELEASE BEARING CLUTCH ACTUATION
80
RELEASE BEARING CLUTCH ACTUATION
81
SPRING RELEASE BEARING TO RELEASE LEVER
82
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
83
HOSE , Replaced By: A3205730036
83
HOSE RELEASE COLLAR LUBRICATION 220 MM
84
UNION SCREW RELEASE COLLAR LUBRICATION
85
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
87
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
89
NUT , Replaced By: N308675014000
89
NUT , Replaced By: N308675014002
89
NUT RELEASE BEARING LUBRICATION
91
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
91
INTERMEDIATE PIECE , 4 117172, Replaced By: A3872510108, +001N003411002001
92
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
92
GREASE NIPPLE RELEASE COLLAR LUBRICATION
92
GREASE CUP RELEASE BEARING LUBRICATION, 4 117172
93
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
93
CAP RELEASE BEARING LUBRICATION
94
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
95
BALL PIVOT CLUTCH ACTUATION,4 601609
96
WASHER , Replaced By: A3852540576, +002A0029972948
96
WASHER , Replaced By: A6202540176
96
WASHER LEVER TO RELEASE SHAFT,5 285575
96
COVER RELEASE SHAFT,TOP
97
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
98
SCREW , Replaced By: N304017010030
98
SCREW , Replaced By: N304017010053
100
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
100
COVER PLATE , Replaced By: A3852510210
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
102
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
102
SCREW , Replaced By: N304017008016
103
BRACKET CLUTCH ACTUATION
103
BRACKET , Replaced By: A3072950840
103
BRACKET , Replaced By: A3072950840
104
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
105
SCREW BRACKET TO SIDE MEMBER
105
SCREW , Replaced By: N304017010002
108
SLAVE CYLINDER CLUTCH ACTUATION
108
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
108
SLAVE CYLINDER CLUTCH ACTUATION
108
SLAVE CYLINDER , Replaced By: A0012955307
108
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
116
LOCK
119
PROTECTIVE CAP , Replaced By: A0004217187
119
PROTECTIVE CAP ,5 962906
119
PROTECTIVE CAP , Replaced By: A0004217187
119
PROTECTIVE CAP , Replaced By: A0004210887
119
PROTECTIVE CAP , Replaced By: A0004210887
121
REPAIR KIT CLUTCH SLAVE CYLINDER
121
REPAIR KIT , Replaced By: A0002900911
124
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
127
SCREW BRACKET TO SIDE MEMBER
127
SCREW , Replaced By: N304017010002
130
SNAP RING CLUTCH SLAVE CYLINDER
130
SECURING CLIP , Replaced By: N073130019300
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
PRESSURE PLATE
999
CLAMP RELEASE FLANGE TO RELEASE LEVER
999
PIN CLUTCH SLAVE CYLINDER
999
VALVE , Replaced By: A3075530107
999
ROD END CLUTCH ACTUATION
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
PIN CLUTCH ACTUATION
999
LEVER CLUTCH ACTUATION,4 601610
999
VALVE CLUTCH SLAVE CYLINDER
999
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
999
LEVER (PARTS KIT),CLUTCH ACTUATION
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
SCREW , Replaced By: N308676018010
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
