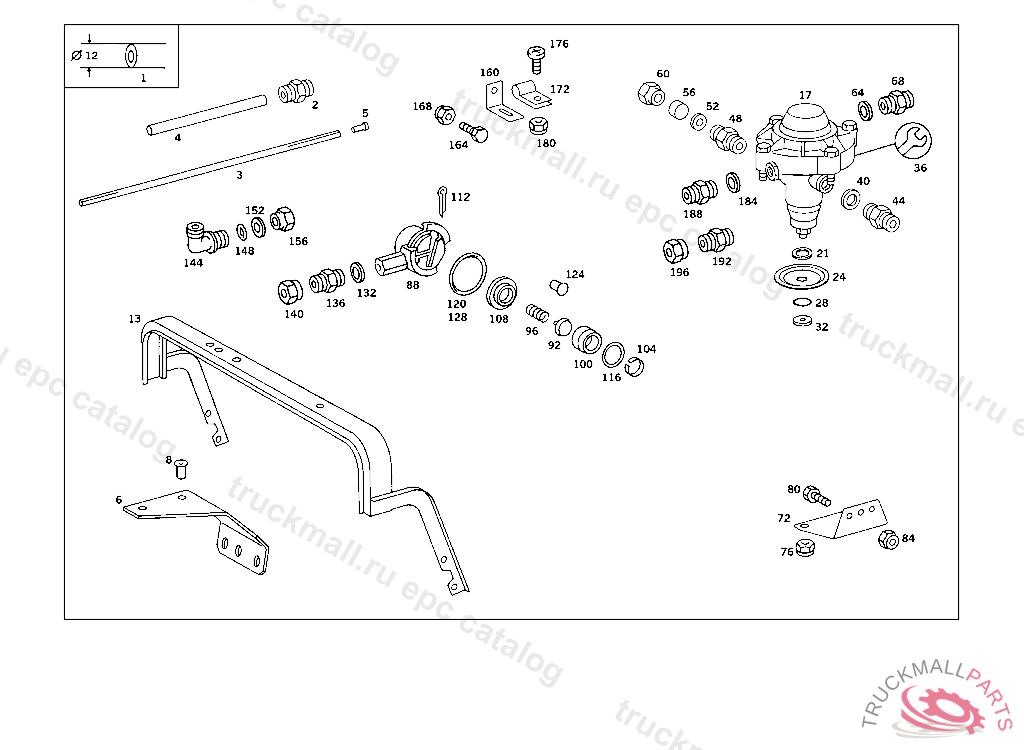

Поз.
Артикул
Описание
1
LINE12 MM, ORDER BY THE METER4 691315
2
FITTING (PARTS KIT),LINE RUPTURE
2
FITTING , Replaced By: A0029906171
2
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
4
INSULATING HOSE
5
SLEEVE LINE CONNECTION
5
SLEEVE , Replaced By: N915062006000
6
BRACKET AT FRAME
8
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET , Replaced By: N910005012026
13
SUPPORT
13
SUPPORT
17
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
17
BRAKE VALVE , Replaced By: A0004318705
21
CUPBOSCH
24
CUPBOSCH
28
CUPBOSCH
32
VALVE DISCTO 000 429 48 30
36
REPAIR KIT TRAILER CONTROL VALVE GRAU
36
REPAIR KIT , Replaced By: A0004303606
40
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
FITTING DELIVERY LINE TO PUMP
48
FITTING ,4 667210
52
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
60
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
64
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
68
FITTING RELAY VALVE,CONNECTION: "40",5 359430
68
FITTING , Replaced By: A0029979572
72
BRACKET
72
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300610
76
NUT STRAP TO BRACKET
76
NUT , Replaced By: N910113010000
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
84
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
NUT , Replaced By: N913004008001
88
BRAKE LINE COUPLING AT REAR CROSS MENBER
88
BRAKE LINE COUPLING AT REAR CROSS MENBER
88
BRAKE LINE COUPLING , Replaced By: A0004297530
88
BRAKE LINE COUPLING AT REAR CROSS MENBER
88
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
92
VALVE DISCTO 000 429 48 30
96
SPRINGTO 000 429 16 30
100
GASKETTO 000 429 16 30
104
SNAP RINGTO 000 429 16 30
108
THRUST RING CHECK VALVE TO AIR RESERVOIR
108
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
112
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
116
SEAL RINGTO 000 429 16 30
120
SEAL RINGTO 000 429 16 30
124
PIN
128
SEAL RINGTO 000 429 75 30
132
SEAL RING LINE CONNECTION
136
FITTING SHUTTLE VALVE
136
FITTING , Replaced By: A0029971372
140
NUT BRACKET TO SIDE MEMBER
144
FITTING ,4 667210
148
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
152
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
156
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
160
BRACKET
160
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
160
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
160
BRACKET , Replaced By: A3812950440
164
SCREW PIPE CLAMP
164
SCREW , Replaced By: N304017008021
168
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
168
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
168
NUT , Replaced By: N913004008001
172
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
176
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
180
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
180
NUT PUMP TO BRACKET
180
NUT , Replaced By: N913004006001
184
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
188
FITTING DELIVERY LINE TO PUMP
192
FITTING DELIVERY LINE TO FRAME
196
NUT BRACKET TO SIDE MEMBER
999
CONSOLETO 000 429 16 30
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
REPAIR KITKNORR
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SPRINGTO 000 429 16 30
999
REPAIR KITWABCO
