Поз.
Артикул
Описание

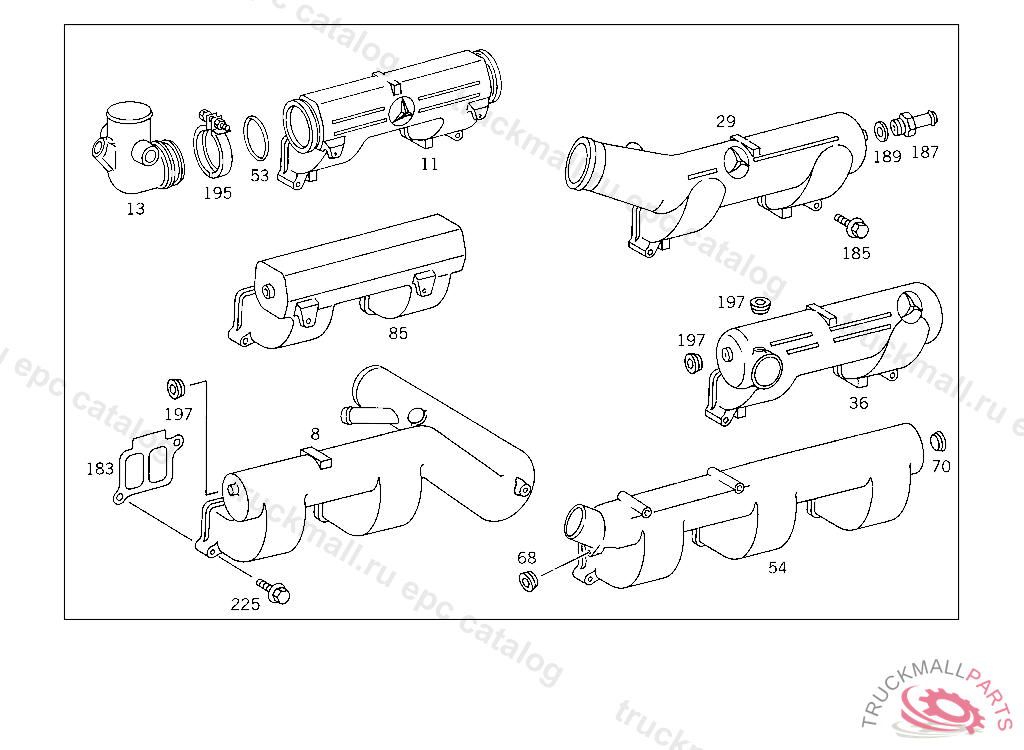

8
INTAKE MANIFOLD
8
INTAKE MANIFOLD
8
INTAKE MANIFOLD
8
INTAKE MANIFOLD , Replaced By: A3641413501
8
INTAKE MANIFOLD , Replaced By: A3641413701
11
ELBOW (CHARGING AIR ELBOW),296412/93
13
ELBOW COMPRESSED AIR ELBOW,296412/93
29
INTAKE MANIFOLD
29
INTAKE MANIFOLD
29
INTAKE MANIFOLD
36
INTAKE MANIFOLD
36
INTAKE MANIFOLD , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 970574, Replaced By: A3641412701
36
INTAKE MANIFOLD
53
SEAL RING
54
MANIFOLD (CHARGING AIR ELBOW)
68
SCREW PLUG STABILIZER
70
SCREW PLUG BELL HOUSING
85
ELBOW (CHARGING AIR ELBOW)
85
ELBOW , Replaced By: A3640983515, +001N000906020000
183
GASKET , Replaced By: A3661410880
183
GASKET , Replaced By: A3661410780
183
GASKET INTAKE MANIFOLD TO EXHAUST MANIFOLD
183
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
185
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
187
FITTING INTAKE MANIFOLD
189
SEAL RINGTO 376 131 74 01
195
LOOM TIE
197
SCREW PLUG STABILIZER
197
SCREW PLUG OIL FILLING
197
SCREW PLUG
197
SCREW PLUG FRONT AXLE RELAY VALVE "20"
225
SCREW , Replaced By: N910105008019
225
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
999
SEAL RING , Replaced By: A0279977948
999
SUSPENSION EYE
999
ELBOW (CHARGING AIR ELBOW), NOT USED
999
ELBOW
999
ELBOW
999
INTAKE MANIFOLD , NOT USED
999
SUSPENSION EYE
999
SUSPENSION EYE , NOT USED
999
CHARGING AIR INTERCOOLER , NOT USED
999
ELBOW
999
CONNECTING PIPE FROM TURBOCHARGER TO CHARGING AIR ELBOW
999
MANIFOLD (CHARGING AIR ELBOW)
999
ELBOW
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD
999
GASKET
999
SUSPENSION EYE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG OIL FILLING
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
999
SCREW SUPPORT TO MOUNTING PLATE,D 180260
999
NUT , Replaced By: N304032008006
999
NUT , Replaced By: N304032010002
999
SCREW CLUTCH OPERATION,4 282707
999
SCREW BRACKET TO CONSOLE
999
NUT
999
NUT
