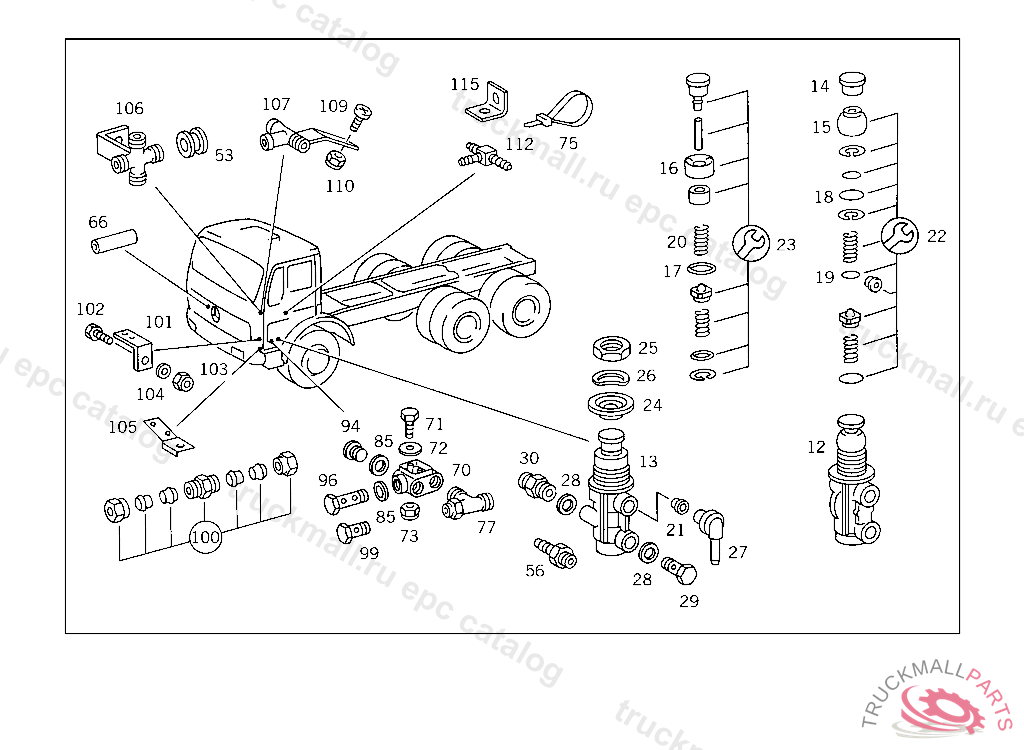

Поз.
Артикул
Описание
12
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342301
12
VALVE , Replaced By: A0004342301
12
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
13
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
13
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
14
HANDLETO 000 434 23 01
15
CUP 3/2-WAY VALVE WABCO
16
CUP , Replaced By: A0004340486
16
CUPTO 000 434 10 01
17
SEAL RINGTO 000 434 21 01
18
SEAL RINGTO 000 434 23 01
19
SEAL RINGTO 000 434 23 01
20
SPRINGTO 000 434 21 01
21
STRAINERTO 000 434 21 01
22
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
22
REPAIR KIT 3/2-WAY VALVE WABCO
23
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 427
23
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 428
23
REPAIR KIT 3/2-WAY VALVE BOSCH
24
SEAL RING VALVE TO CAB,4 278267
25
NUT SUCTION LINE TO OIL PUMP
26
SPRING WASHER AT CAB FLOOR
27
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
27
BREATHER , Replaced By: A3933280065
27
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
28
SEAL RING LINE CONNECTION
29
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
30
FITTING , Replaced By: A0019972572
30
FITTING LINE CONNECTION, Replaced By: N000000006446
53
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
56
FITTING , Replaced By: N915059004000
56
FITTING LINE CONNECTION TO FIRE WALL,5 726664
66
HOSE LEAK LINE, ORDER BY THE METER
70
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
70
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
71
SCREW DISTRIBUTOR TO CAB
72
WASHER , Replaced By: N009021006208
72
WASHER COMPRESSED AIR LINE TO BRACKET
73
NUT , Replaced By: N913004006001
73
NUT PUMP TO BRACKET
75
LOOM TIE LINE MOUNTING
75
LOOM TIE LINE MOUNTING 280 MM
77
T-FITTING EXHAUST-BRAKE POWER CYLINDER
85
SEAL RING LINE CONNECTION
94
SCREW PLUG , Replaced By: N000908012009
94
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
96
HOLLOW SCREW LINE CONNECTION
99
HOLLOW SCREW , Replaced By: N915036010108
99
HOLLOW SCREW FUEL LINE TO FEED PUMP
100
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
101
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
101
BRACKET FUEL LINES TO TRANSMISSION
102
SCREW , Replaced By: N304017008021
102
SCREW PIPE CLAMP
103
NUT , Replaced By: N913004008001
103
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
WASHER , Replaced By: N000125008443
104
WASHER EXHAUST MUFFLER TO STRAP
105
BRACKET PRESSURE GAUGE LINE TO BRACKET
106
BRACKET ,4 375135
107
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
109
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
109
SCREW CLAMP TO BRACKET
110
NUT , Replaced By: N913004006001
110
NUT PUMP TO BRACKET
112
DISTRIBUTOR HOSE WIDTH, 6 MM
112
T-FITTING EXHAUST BRAKE LINE CONNECTION
115
ANGLE LINE MOUNTING
115
ANGLE LINE MOUNTING
999
HOLLOW SCREW , Replaced By: N915047008100
999
BUSHINGTO 000 434 10 01
