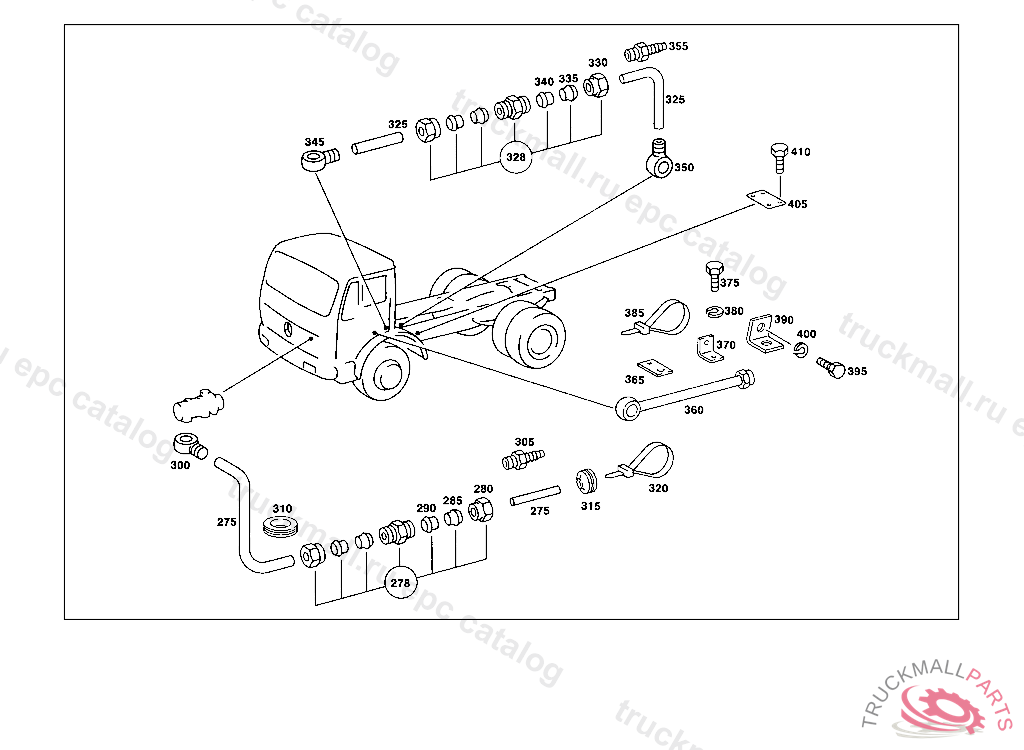

Поз.
Артикул
Описание
275
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
275
PLASTIC PIPE RISING PIPE 4X6 MM
275
PLASTIC PIPE RISING PIPE 4X6 MM
275
PLASTIC PIPE RISING PIPE 4X6 MM
275
PLASTIC PIPE RISING PIPE 4X6 MM
275
PLASTIC PIPE RISING PIPE 4X6 MM
278
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
280
UNION NUT LINE CONNECTIONS
285
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
290
BUSHING , Replaced By: N915062004000
290
SLEEVE LEAK LINE
300
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
305
FITTING , Replaced By: N915059004000
305
FITTING LINE CONNECTION TO FIRE WALL,5 726664
310
GROMMET
315
GROMMET
320
LOOM TIE LINE MOUNTING 280 MM
325
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
325
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
328
FITTING , Replaced By: A0029905971
328
FITTING (PARTS KIT),LINE RUPTURE
330
UNION NUT
335
GLAND , Replaced By: A0019901667
335
SEAL CONE
340
BUSHING , Replaced By: A0007630043
340
SLEEVE LINE CONNECTION
345
BANJO UNION , Replaced By: N915052006013
345
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
350
BANJO UNION , Replaced By: N915052006003
350
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
355
FITTING , Replaced By: N915059006000
355
FITTING
360
LINE , Replaced By: A4064207226
360
LINE FROM CLUTCH TO TRANSMISSION
365
BRACKET LINE MOUNTING
370
ANGLE LINE MOUNTING
370
BRACKET AT CYLINDER BLOCK, REAR
375
SCREW , Replaced By: N304017008021
375
SCREW PIPE CLAMP
380
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
385
LOOM TIE LINE MOUNTING
390
BRACKET , Replaced By: A6454310740
390
BRACKET FUEL LINE TO BELL HOUSING
390
BRACKET FUEL LINE TO BELL HOUSING
395
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
400
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
405
SHIM , Replaced By: A6203121984
405
SHIM CROSS MEMBER TO SUPPORT
410
SCREW , Replaced By: N308676014020
410
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW SHOCK ABSORBER TO RAIL M 18X70
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
KNOB , Replaced By: A6202600040
999
BOOT SHIFTING ROD
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
BOOT SHIFTING LEVER
999
BRACKET SOLENOID VALVE,4 411810
999
BRACKET SOLENOID VALVE,4 411810
999
HANDLE , Replaced By: A3432600040
999
HANDLE (GEARSHIFT LEVER KNOB)
999
VALVE , Replaced By: A0012602457
999
VALVE , Replaced By: A0002608157
