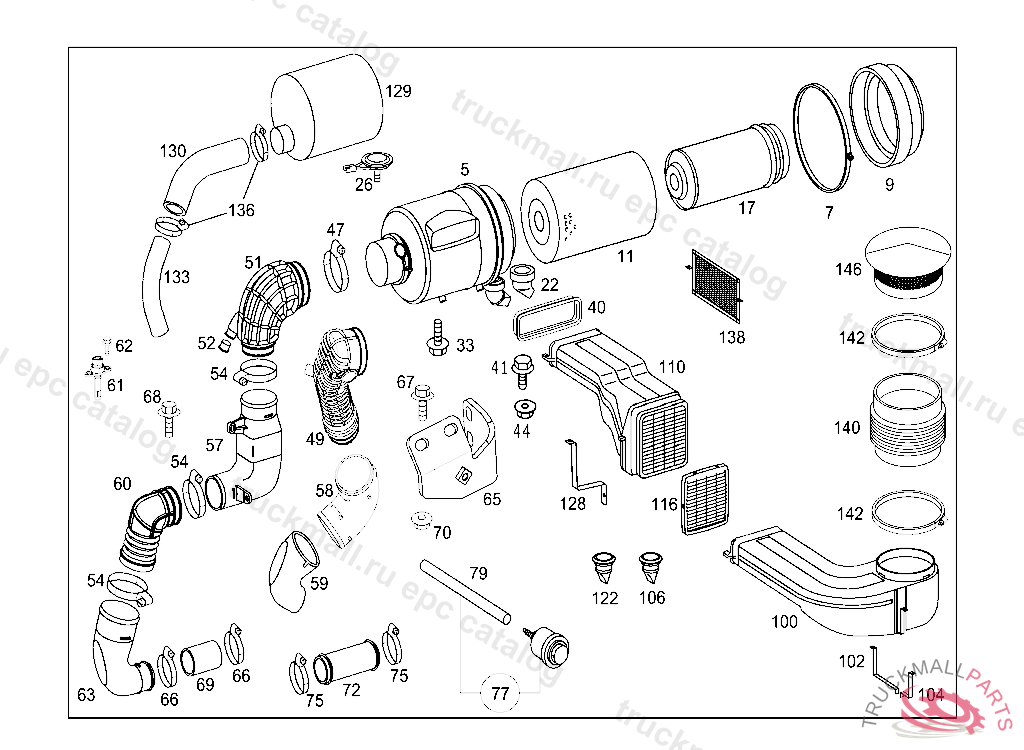

Поз.
Артикул
Описание
5
AIR CLEANER
7
CLAMP
9
COVER
11
FILTER ELEMENT SAFETY CARTRIDGE
17
FILTER ELEMENT AIR CLEANER ELEMENT
22
VALVE
26
SWITCH
33
SCREW BRACKET TO CAB REAR PANEL M 8X20
40
SEALING RING AIR CLEANER TO SUPPORT
40
SEALING RING AIR CLEANER TO SUPPORT
41
SCREW BRACKET TO SIDE MEMBER M10X35
41
SCREW BRACKET AND CLAMP M6X20
41
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
41
SCREW BATTERY CABLE TO BRACKET M6X45
44
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
NUT BRACKET TO FIRE WALL
44
NUT , Replaced By: N913023006001
47
CLAMP HOSE FASTENING 140-160 MM,K 583005
51
INTAKE HOSE
51
HOSE ,D 507558
51
AIR INTAKE PIPE
54
CLAMP , Replaced By: A0059970690
57
PIPE ELBOW
57
PIPE ELBOW ,D 893360
60
HOSE
61
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
62
HEXAGON HEAD BOLT
63
PIPE ELBOW ,D 893360
63
PIPE ELBOW
66
CLAMP HOSE 70-90X13 MM
68
SCREW BRACKET TO SIDE MEMBER M10X35
69
HOSE HOSE TO RADIATOR,D 397002
69
HOSE CHARGING AIR ELBOW TO COMPRESSED AIR ELBOW
69
HOSE
100
AIR INTAKE CASE
100
AIR INTAKE CASE
102
BRACKET
102
BRACKET
104
BRACKET
104
BRACKET
106
VALVE
110
AIR INTAKE BOX
116
AIR INLET GRILL
122
VALVE
128
BRACKET
129
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
130
PIPE ELBOW
133
PIPE ELBOW
136
CLAMP25-40X13 MM
138
PROTECTIVE GRILL
140
HOSE AIR INTAKE CASE
142
CLAMP180-200X12MM
146
PROTECTIVE GRILL AT ACCORDION TUBE,D 874199
