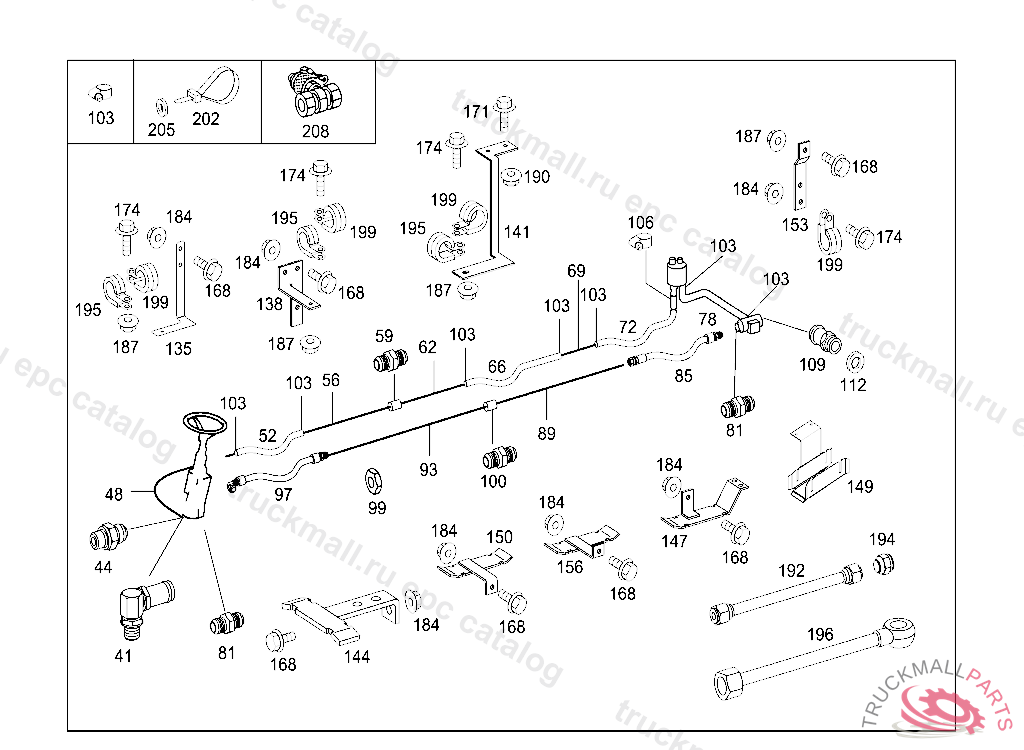

Поз.
Артикул
Описание
41
SEAL CONE LOW PRESSURE LINE TO STEERING
44
LOCK NUT LOW PRESSURE LINE TO STEERING M18X1,5
48
HYDRAULIC LINE FROM STEERING TO HOSE22 X 1.5 X 2894 MM
48
LINE FROM STEERING TO HOSE22 X 1.5 X 971 MM
52
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
52
HOSE , Replaced By: A6349970552
56
HYDRAULIC LINE 22 X 1.5 X 3595 MM
56
LINE FROM LOW PRESSURE HOSE TO CONNECTION FITTING22 X 1.5 X 1100 MM
62
LINE FROM CONNECTION FITTING TO STEERING22 X 1.5 X 2310 MM
62
LINE FROM CONNECTION FITTING TO STEERING15 X 1.5 X 2000 MM
66
HOSE , Replaced By: A6349970552
69
LINE FROM HOSE TO HOSE,D 291813
72
HOSE LOW-PRESSURE OIL LINE TO OIL TANK,D 366549
72
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
72
HOSE FROM OIL TANK TO HYDRAULIC PUMP,D 304525
78
HOSE FROM OIL TANK TO HYDRAULIC PUMP 31/22 MM
78
HOSE FROM OIL TANK TO HYDRAULIC PUMP,D 304526
81
FITTING HOSE LINE TO HYDRAULIC PUMP,D 291813
85
HOSE BETWEEN THE LINES3500 MM
85
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
89
LINE FROM HIGH PRESSURE HOSE TO CONNECTION FITTING
89
HYDRAULIC LINE STEEL 15 X 1.5 X 3606 MM
93
HYDRAULIC LINE OIL PIPE 22 X 1.5 X 2754 MM
93
HYDRAULIC LINE FROM STEERING TO HOSE22 X 1.5 X 2894 MM
93
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
93
HYDRAULIC LINE OIL PIPE15 X 1.5 X 3080 MM
93
LINE FROM CONNECTION FITTING TO HOSE15 X 1.5 X 1100 MM
97
HYDRAULIC LINE OIL PIPE15 X 1.5 X 3080 MM
97
HOSE BETWEEN THE LINES3500 MM
100
UNION NUT. SEAL CONE FOR DELIVERY LINE 1 3/16"
100
SEAL CONE FOR DELIVERY LINE
103
CLAMP , Replaced By: N000000000667
103
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
106
CLAMP HOSE TO FITTING AND TO OIL TANK
109
FITTING AT AIR COMPRESSOR
112
SEAL RING LINE TO OIL PUMP
135
BRACKET OIL LINE TO FRAME
138
BRACKET OIL LINE TO FRAME
141
BRACKET OIL LINE TO CROSS MEMBER
144
BRACKET TO MOUNT FUEL LINES
147
BRACKET OIL LINE TO FRAME
150
BRACKET OIL LINE TO FRAME
153
BRACKET BREATHER LINE TO REAR AXLE
153
BRACKET OIL LINE TO FRAME, Replaced By: A3845288240
156
BRACKET OIL LINE TO FRAME
168
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
171
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
174
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
184
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
187
NUT BRACKET TO FIRE WALL
190
NUT , Replaced By: N913023008003
195
CLAMP OIL DIPSTICK TO RADIATOR
195
CLAMP LINE MOUNTING
195
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
195
CLAMP DE-AERATION LINE
195
CLAMP LINES TO BRACKET
199
CLAMP20-30
208
TEST CONNECTION
999
ELBOW FITTING
999
SCREW BRACKET TO SUPPORT M 12X25,K 574789
999
NUT BRACKET TO SIDE MEMBER M12X1.5
