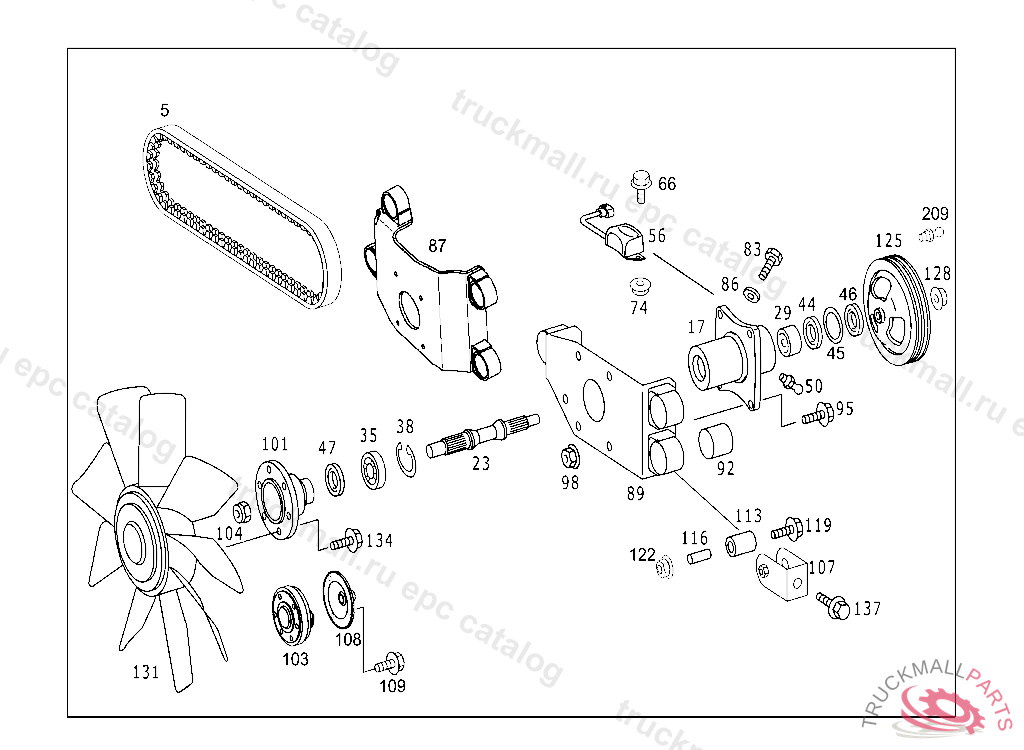

Поз.
Артикул
Описание
5
V-BELT BETWEEN PULLEY AND FAN 1600 MM
17
BEARING BODY FAN DRIVE
17
BEARING BODY FAN DRIVE
23
FAN SHAFT ,D 276362
23
FAN SHAFT ,D 276362
29
CYLINDR. ROLLER BEARING FAN DRIVE
35
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
38
LOCK RING52X2 MM
38
LOCK RING
44
BALL BEARING FAN DRIVE
44
SEAL RING CASE COVER
45
WASHER
46
RADIAL SHAFT SEALING RING
46
SEAL RING FAN DRIVE
47
RADIAL SEAL RING
47
SEAL RING
50
GREASE NIPPLE
56
SENDER UNIT ELECTRIC BELT MONITORING INDICATOR
66
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
74
NUT BRACKET TO FIRE WALL
83
SCREW BRACKET TO CROSS MEMBER
86
SEAL RING BRAKE CYLINDER STROKE INDICATOR
87
BEAM FAN DRIVE
89
BEAM FAN DRIVE
89
SUPPORT FAN DRIVE
89
SUPPORT FAN DRIVE
92
MOUNTING , Replaced By: A3028880224
95
SCREW SHIFT LEVER TO BRACKET M8X30
95
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
98
NUT HORN TO BRACKET M8
98
NUT STRAP TO BRACKET
101
HUB ,D 276362 NOT USED
103
VISCOUS CLUTCH FAN DRIVE
104
NUT SHOCK ABSORBER TO BOTTOM BRACKET
104
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
104
HEXAGON NUT TRAILER COUPLING TO REAR CROSS MEMBER M20X1.5
107
CLAMP
107
CLAMP , Replaced By: A3825000046
107
RETAINING CLIP
108
HUB ,D 276362
109
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
113
MOUNTING
113
RUBBER BUSHING
116
SLEEVE
119
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
119
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
122
NUT BRACKET TO SIDE MEMBER M12X1.5
125
PULLEY FAN
125
V-BELT PULLEY FAN DRIVE
128
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
128
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
128
NUT CONSOLE TO SUPPORT
131
FAN FAN DRIVE 650 MM
131
FAN FAN DRIVE 650 MM
134
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
134
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
137
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
209
GREASE NIPPLE INTERMEDIATE LEVER
