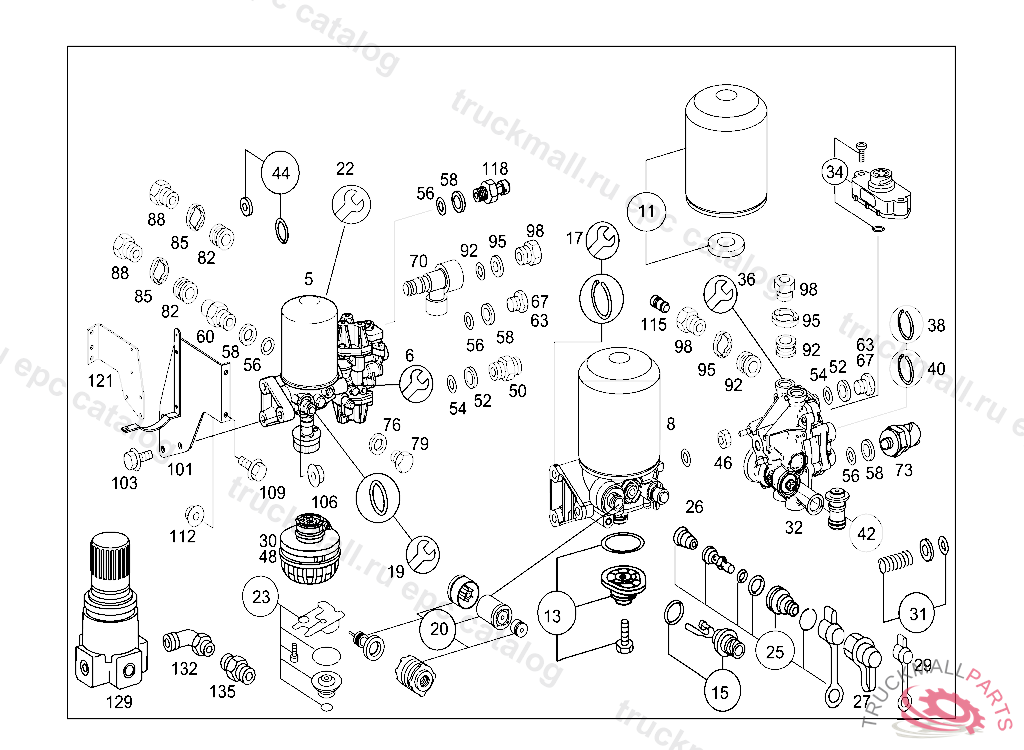

Поз.
Артикул
Описание
5
VALVE. ANTI-FREEZE DEVICE VALVE CLUSTERKNORR,D 625031
5
ANTI-FREEZE DEVICE VALVE CLUSTER KNORR, Replaced By: A3824310015
5
COMPRESSED AIR DRIER VALVE CLUSTER KNORR
5
ANTI-FREEZE DEVICE VALVE CLUSTER KNORR
6
VALVE REPAIR KIT
6
REPAIR KIT VALVE TO 695 420 75 71
8
ANTI-FREEZE DEVICE WITHOUT HEATING KNORR
8
AIR DEHYDRATOR
8
ANTI-FREEZE DEVICE WITHOUT HEATING KNORR
8
AIR DRIER
11
AIR CLEANER WITH OIL SEPARATOR KNORR
11
REPAIR KIT. AIR CLEANERTO 693 420 75 71
13
VALVE SEAT
15
HEATING ELEMENT
17
REPAIR KIT WITH PRESSURE SPRINGS TO A 664 431 01 15 KNORR
19
GASKET KIT REPAIR KIT TO A 664 431 01 15 KNORR
20
REPAIR KIT BETWEEN SPRING AND PLUNGER TO A 664 431 01 15 KNORR
23
ANTI-FREEZE DEVICETO A 664 431 01 15 KNORR
25
REPAIR KITTO A 664 431 01 15 KNORR
26
REPAIR KIT BETWEEN SPRING AND PLUNGER TO A 664 431 01 15 KNORR
30
MUFFLER VALVE CENTRE TO 693 420 75 71
32
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
32
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR,D 521240
34
PRESSURE SENDER UNIT. PRESSURE REGULATORKNORR, Replaced By: A0015429218
34
PRESSURE REGULATOR AT FOUR-CIRCUIT PROTECTIVE VALVE KNORR
36
VALVE REPAIR KIT KNORR
38
RS PROTECTION VALVE
40
RS PROTECTION VALVE INTERMEDIATE CASE KNORR
42
RS PROTECTION VALVE PISTON KNORR
46
NUT
50
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
52
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
52
THRUST RING CHECK VALVE TO AIR RESERVOIR
54
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
54
O-RING CHECK VALVE TO AIR RESERVOIR
56
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
58
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
60
FITTING LINE CONNECTION
63
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
67
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
73
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
79
INTERLOCK CONNECTOR TO PLUG THE FREE CONNECTIONS TO M16, VOSS 232
82
SEAL RING , Replaced By: A0009940747
85
LOCK , Replaced By: A0009945448
88
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
88
SCREW. UNION SCREW , Replaced By: A0009973734
92
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
98
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
98
SCREW. UNION SCREW LINE CONNECTION
101
BRACKET VALVE CLUSTER
103
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
103
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
106
NUT BRACKET TO SIDE MEMBER M12X1.5
109
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
112
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
115
INTERLOCK CONNECTOR DISTRIBUTOR TO M 22, VOSS 232
118
SENDER UNIT FOUR-CIRCUIT PROTECTIVE VALVE
121
BRACKET VALVE CLUSTER
121
BRACKET VALVE CLUSTER
129
VALVE PRESSURE REGULATOR
132
FITTING , Replaced By: A0019909871
135
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
