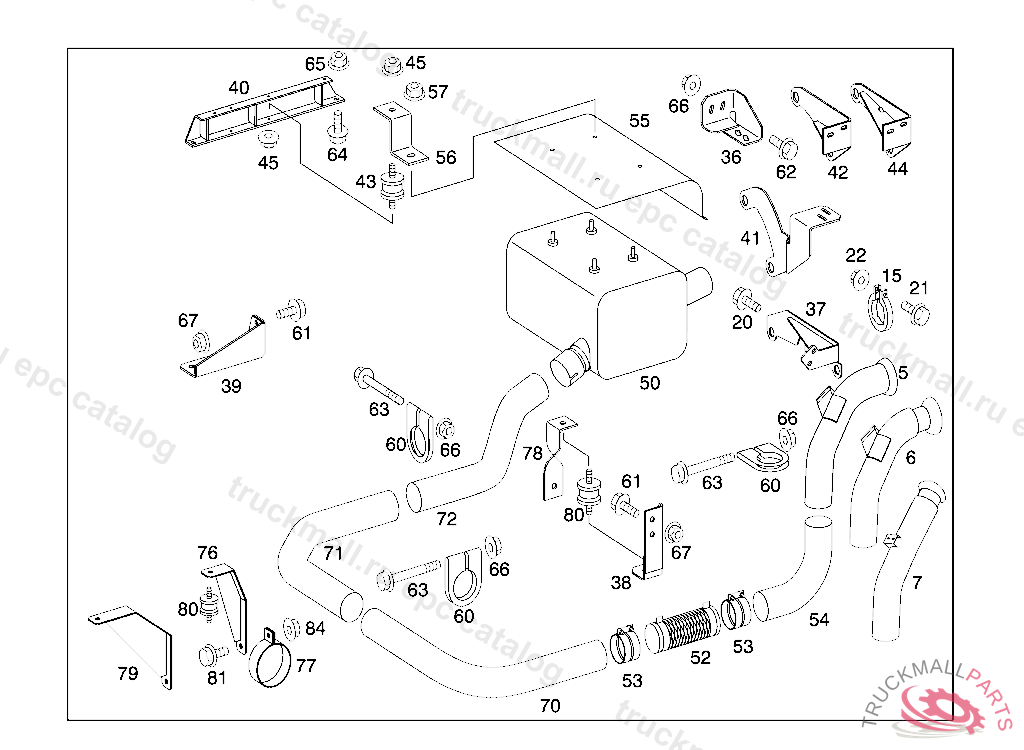

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT EXHAUST PIPE
7
EXHAUST PIPE FRONT EXHAUST PIPE
15
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
15
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
20
SCREW BRACKET TO CAB REAR PANEL M 8X20
21
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
21
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
22
NUT HORN TO BRACKET M8
38
BRACKET BRACKET TO SIDE MEMBER
38
BRACKET BRACKET TO RIGHT SIDE MEMBER
39
BRACKET BRACKET TO RIGHT SIDE MEMBER
39
BRACKET BRACKET TO RIGHT SIDE MEMBER
39
BRACKET BRACKET TO LEFT SIDE MEMBER
40
BRACKET AT EXHAUST PIPE
43
BUFFER
43
RUBBER MOUNTING
45
NUT , Replaced By: N913023010002
50
EXHAUST MUFFLER ,D 292287
50
EXHAUST MUFFLER , Replaced By: A3684900101
52
FLEXIBLE METAL TUBE FRONT
52
FLEXIBLE METAL TUBE
53
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
53
LOOM TIE
54
INTERMEDIATE PIECE EXHAUST PIPE TO FLEXIBLE METAL TUBE
54
INTERMEDIATE PIECE EXHAUST PIPE TO FLEXIBLE METAL TUBE
55
PROTECTIVE PLATE EXHAUST MUFFLER,D 292287
56
BRACKET BRACKET TO EXHAUST MUFFLER
57
NUT BRACKET TO SIDE MEMBER M12X1.5
60
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 77 MM
60
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 83 MM
60
CLAMP EXHAUST PIPE TO MUFFLER
60
CLAMP EXHAUST PIPE TO EXHAUST PIPE
60
CLAMP BRACKET TO EXHAUST PIPE
61
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
61
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
62
SCREW , Replaced By: N910143008002
63
HEXAGON HEAD BOLTM8X130,TO A 674 492 00 40
63
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE M8X130
63
SCREWM8X120,D 250888 NOT USED
63
SCREW SUPPORT TO ALTERNATOR
64
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
65
NUT BRACKET TO SIDE MEMBER M12X1.5
66
NUT BRACKET TO SIDE MEMBER M12X1.5
66
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
66
NUT HORN TO BRACKET M8
67
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
67
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
CONNECTOR EXHAUST PIPE TO FLEXIBLE METAL TUBE
71
FRONT EXHAUST PIPE CENTRAL EXHAUST PIPE
72
END PIECE EXHAUST PIPE TO MUFFLER
72
END PIECE EXHAUST PIPE TO MUFFLER
76
BRACKET EXHAUST PIPE SUSPENSION
77
CLAMP
77
CLAMP TAIL PIPE
78
BRACKET EXHAUST PIPE TO MUFFLER
79
BRACKET CENTRAL EXHAUST PIPE
80
RUBBER BUFFER EXHAUST MUFFLER
81
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
84
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
