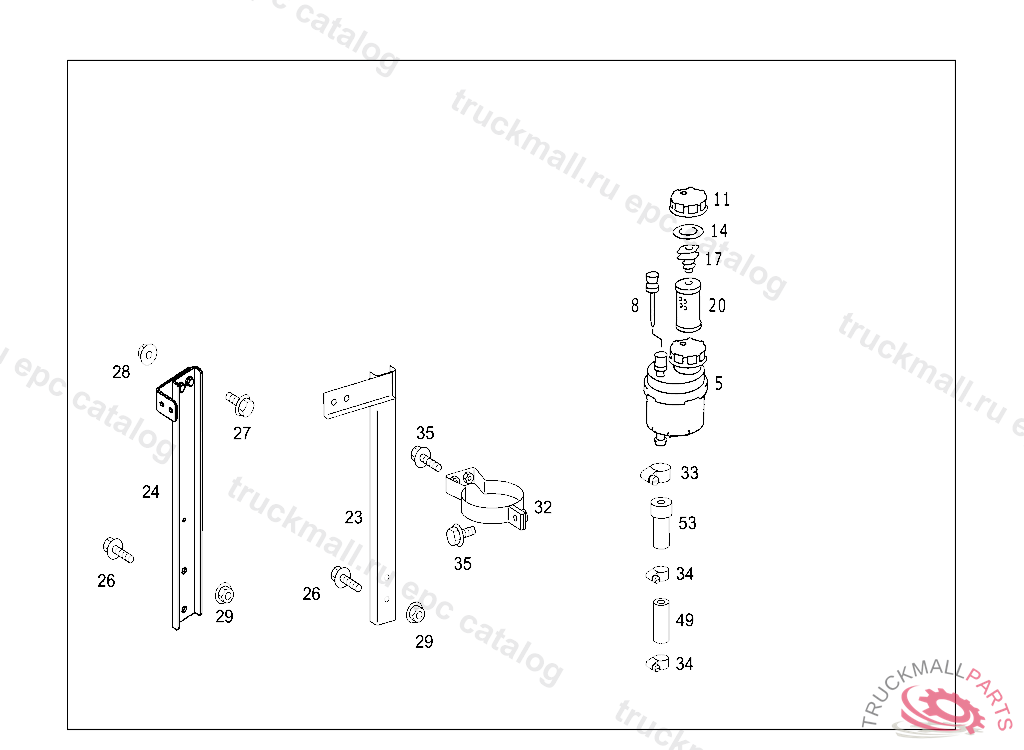

Поз.
Артикул
Описание
5
TANK POWER STEERING
8
OIL DIPSTICK ,D 523393
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER ELEMENT ,D 441028D 523393
23
BRACKET OIL TANK
23
BRACKET OIL TANK
24
BRACKET OIL TANK
26
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
26
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
27
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
28
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
29
NUT SUPPORT TO FRAME
29
NUT BRACKET TO SIDE MEMBER M12X1.5
32
STRAP OIL TANK
33
CLAMP HOSE TO FITTING AND TO OIL TANK
34
CLAMP , Replaced By: N000000000667
35
SCREWM 10X20
49
LINE FROM HOSE TO HOSE,D 291813
53
HOSE POWER STEERING
999
ELBOW FITTING
999
SCREW BRACKET TO SUPPORT M 12X25,K 574789
