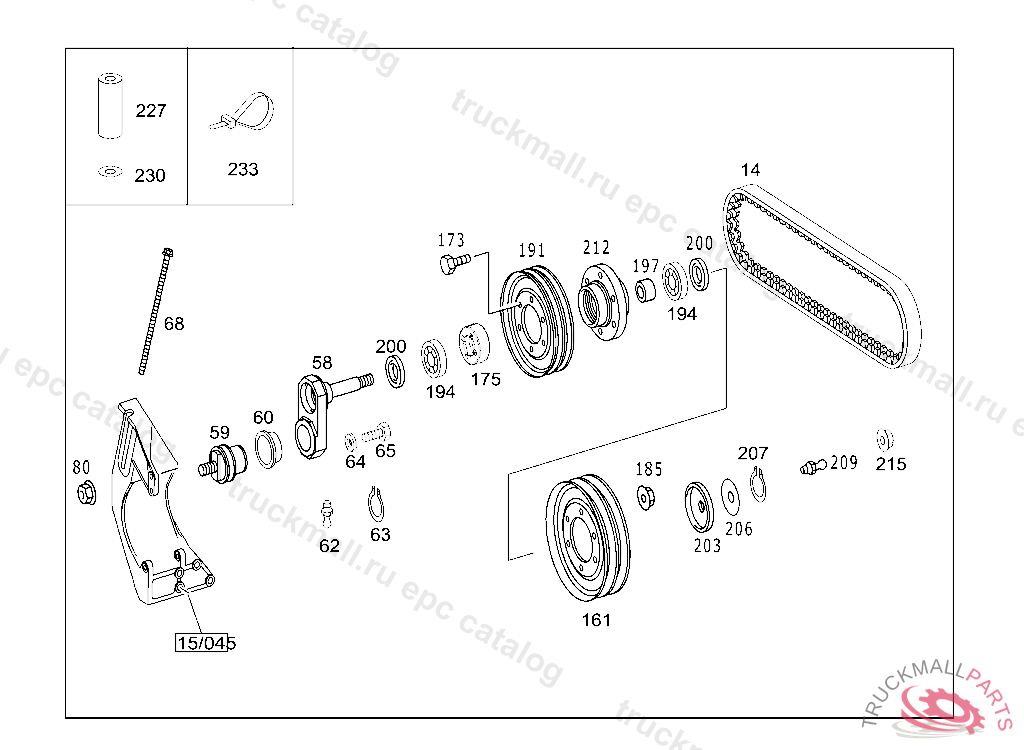

Поз.
Артикул
Описание
14
V-BELT AIR CONDITIONER 2700MM
14
V-BELT SET2 PIECES 14 X 1400 MM
58
DRIVE SHAFT
58
SHAFT , Replaced By: A3742000038
59
PIVOT PIN , Replaced By: A3742060020
59
BEARING JOURNAL
60
BUSHING , Replaced By: A3742050015
60
BUSHING
62
GREASE NIPPLE
63
LOCK RING P.T.O.
64
PLANE PARALLEL WASHERTO A374 200 0038 - 52 X 9 X 2 MM
65
SCREW STOP TO BATTERY CASE
68
SCREWM12X1.5X275 MM
80
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
80
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
161
PULLEY BELT TIGHTENER PULLEY
173
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
175
SPACER RING
185
NUT HORN TO BRACKET M8
191
PULLEY BELT TIGHTENER PULLEY
194
BALL BEARING BELT TIGHTENER PULLEY
194
BALL BEARING BELT TIGHTENER PULLEY
197
SPACER TUBE BELT TIGHTENER PULLEY
200
SEAL RING BELT TIGHTENER PULLEY
203
EXPANSION PLUG BELT TIGHTENER PULLEY
206
LOCK BELT TIGHTENER PULLEY
207
LOCK RING P.T.O.
209
GREASE NIPPLE INTERMEDIATE LEVER
212
HUB BELT TIGHTENER PULLEY
227
BUSHING AIR CONDITIONER
230
WASHER , Replaced By: A3829907140
233
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
