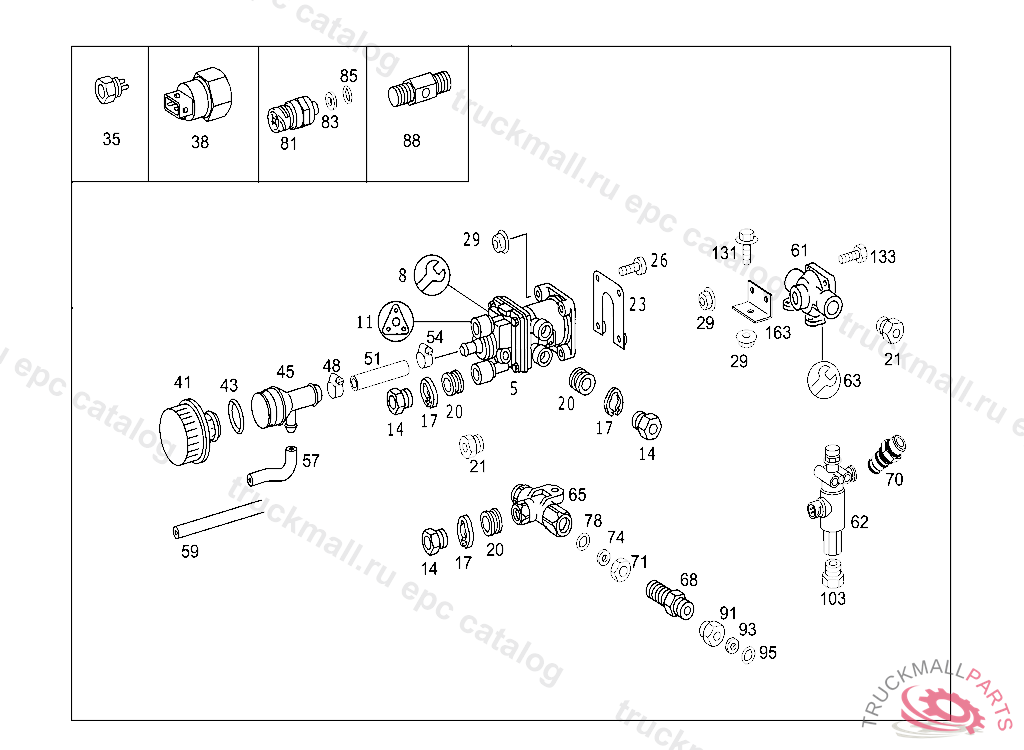

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE WABCO,D 227053
5
BRAKE VALVE SERVICE BRAKE KNORR,D 227053
8
REPAIR KIT LARGE SCOPE TO 695 431 71 04
8
REPAIR KIT SMALL SCOPE TO 695 431 74 04
11
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
14
SCREW. UNION SCREW LINE CONNECTION
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
17
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
20
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
21
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
23
FLANGE SERVICE BRAKE VALVE,D 227053
26
SCREW SERVICE BRAKE VALVE,D 227053
26
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
29
NUT HORN TO BRACKET M8
35
SWITCH TWO-CIRCUIT BRAKE VALVE
35
SWITCH EXHAUST BRAKE,K 251255
41
MUFFLER VALVE BLEEDING
43
SEALING CORD SUCTION LINE TO OIL PUMP
45
T-FITTING BETWEEN THE LINES
48
CLAMP , Replaced By: N000000000667
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
51
HOSE FROM L.P.G. REGULATOR TO T-FITTING
51
HOSE PRESSURE REGULATOR,CONNECTION: "3"
54
CLAMP , Replaced By: N000000000667
57
HOSE HAND BRAKE VALVE
59
PLASTIC PIPE8X6 MM, ORDER BY THE METER
61
VALVE QUICK-RELEASE VALVE KNORR
63
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
68
FITTING LOCKING VALVE
71
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
74
THRUST RING CHECK VALVE TO AIR RESERVOIR
78
O-RING CHECK VALVE TO AIR RESERVOIR
83
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
85
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
91
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
93
THRUST RING LOCKING VALVE
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
103
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
131
SCREW , Replaced By: N910143008002
133
SCREW BRACKET TO CAB REAR PANEL M 8X20
163
BRACKET (QUICK-RELEASE VALVE)
163
BRACKET (QUICK-RELEASE VALVE), Replaced By: A3824299468
