Mercedes N910105008005 - БОЛТ М8

OH 1215L/47 368.112

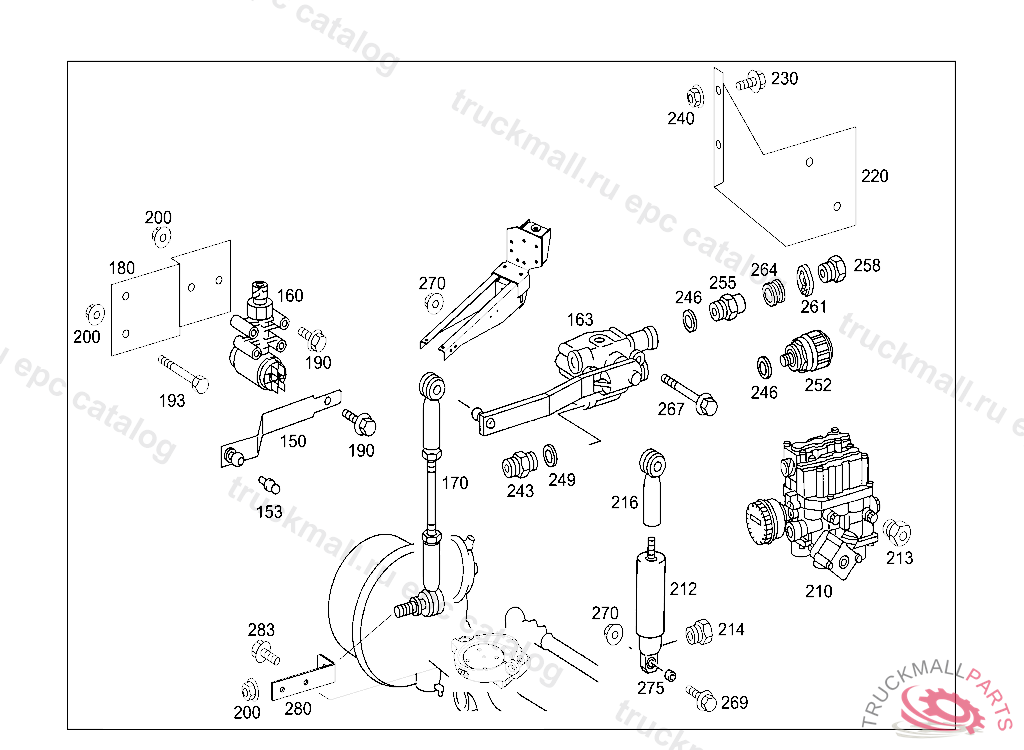

32 SPRINGS AND SUSPENSION - 715 SELF-LEVELLING DEVICE IL. 3

Поз.
Артикул
Описание
150
A6343200189
ROD AT FRONT AXLE
153
N071803013204
BALL PIVOT
160
A0015420018
TRAVEL SENSOR SELF-LEVELLING DEVICE
170
A3683200089
ROD AT FRONT AXLE
180
A3683230140
BRACKET AT FRONT AXLE
190
N910105006002
HEXAGON HEAD BOLT
190
N910105008039
SCREW , Replaced By: N910143008002
193
N910105008076
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
200
N913023008003
NUT HORN TO BRACKET M8
210
A0003279725
VALVE FRONT AXLE
213
A0009974834
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
220
A3683231040
BRACKET AT SOLENOID VALVE
230
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
240
N913023008002
NUT ENGINE MOUNTING M8
