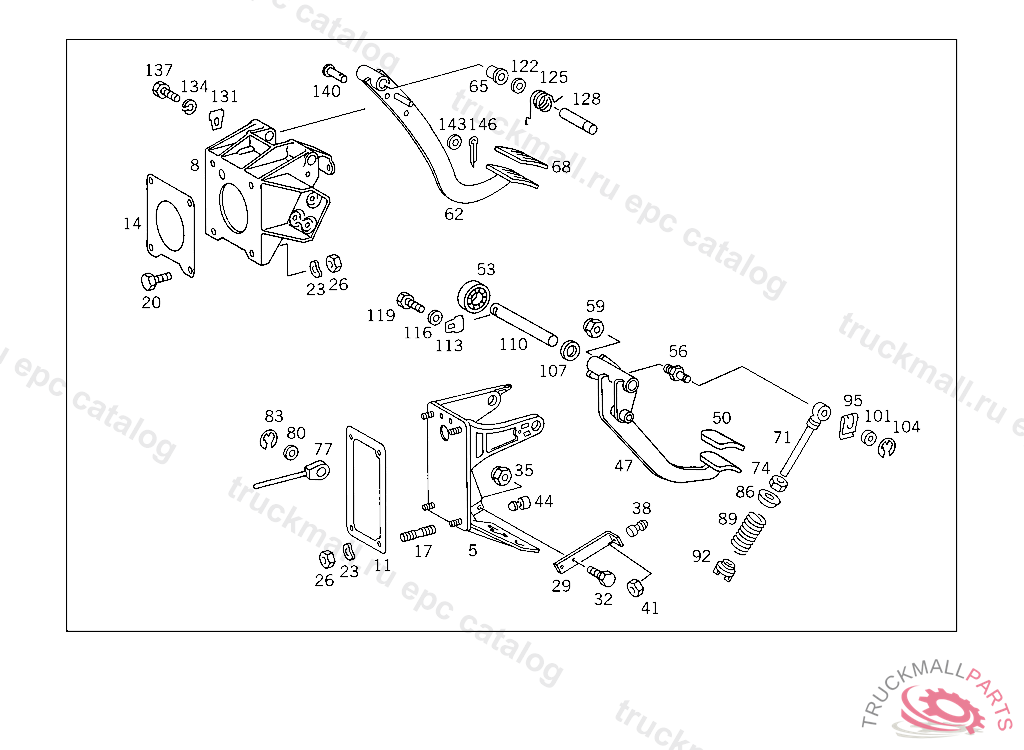

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE PEDAL
5
BEARING BRACKET , Replaced By: A6882947001
8
BEARING BRACKET BRAKE PEDAL
8
BEARING BRACKET , Replaced By: A3842947201
11
GASKET , Replaced By: A6452940280
14
GASKET BEARING BRACKET TO CAB
17
STUD
20
SCREW SUPPORT TO FENDER
20
SCREW , Replaced By: N304017008018
23
SPRING WASHER CABLE TO ALTERNATOR
26
NUT
26
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
29
STOP CLUTCH PEDAL
32
SCREW CLAMP TO BRACKET
35
NUT , Replaced By: N913004006001
38
STOP CLUTCH PEDAL STOP
41
NUT
44
STOP CLUTCH PEDAL,1B 849449
47
PEDAL CLUTCH
50
PAD , Replaced By: A1072910182
53
NEEDLE BEARING
53
NEEDLE BEARING CLUTCH PEDAL
56
PIN CLUTCH PEDAL39 MM(M10) TO A6952907216
59
NUT AIR CLEANER ELEMENT
62
PEDAL BRAKE, NO.8650I.......I I I II .......INO.9985I I I II I
65
BUSHING , Replaced By: A1242920050
68
PAD , Replaced By: A1072910182
71
BEARING BRACKET
71
ROD , Replaced By: A3822908419
74
NUT , Replaced By: N308675010000
77
ROD CLUTCH PEDAL
77
ROD (PISTON ROD)
80
WASHER BRACKET TO FENDER BRACKET
83
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
86
SPRING RETAINER SPRING TO PUSH ROD
89
SPRING CLUTCH PEDAL RESET,B 974885
92
SPRING RETAINER SPRING TO PUSH ROD
95
CLIP SPRING TO PUSH ROD
101
WASHER BRACKET TO FENDER BRACKET
104
LOCK RING PUSH ROD TO PEDAL
107
WASHER CLUTCH PEDAL TO BEARING BRACKET
110
PIN CLUTCH PEDAL TO BEARING BRACKET
113
LOCK , Replaced By: A6732920073
116
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
116
WASHER PLUG SOCKET TO BRACKET
119
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
119
SCREW PUMP TO BRACKET
122
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
125
SPRING BRAKE PEDAL TO BEARING BRACKET
128
PIN , Replaced By: A6452940074
128
PIN CLUTCH PEDAL TO BEARING BRACKET
131
LOCK , Replaced By: A6732920073
134
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
134
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
137
SCREWM 6X12
140
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
143
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
146
COTTER PIN
999
PIN PUSH ROD TO CLUTCH PEDAL52 MM,B 910380
