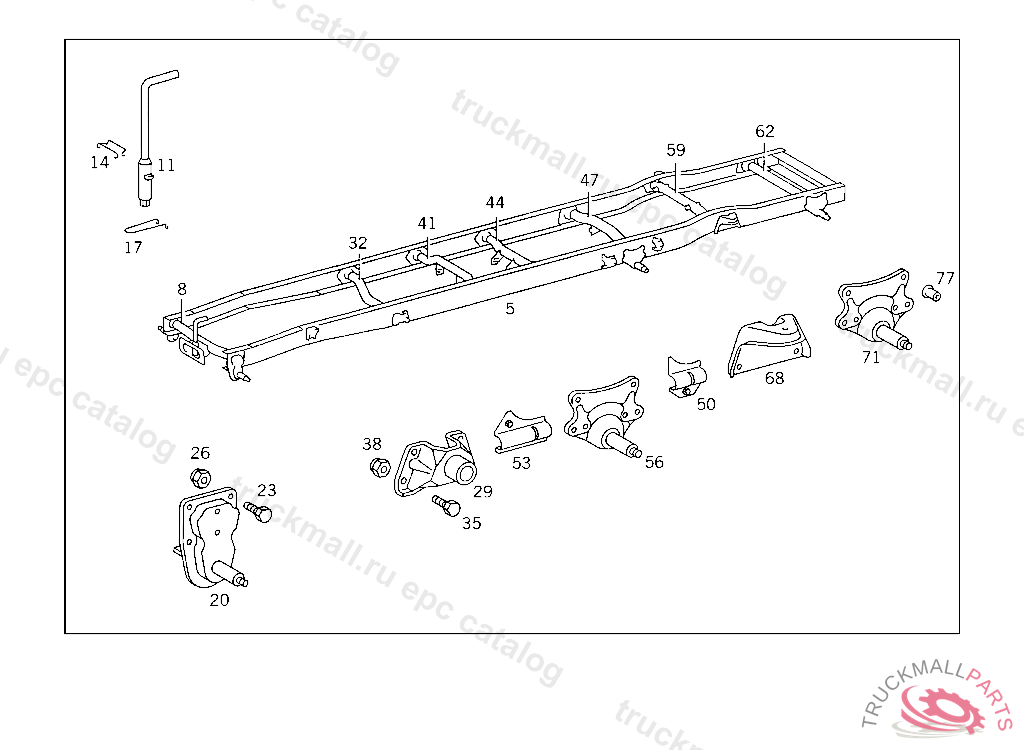

Поз.
Артикул
Описание
5
FRAME
8
CROSS MEMBER , Replaced By: A3883107222
8
CROSS MEMBER FRONT
11
COUPLING PIN , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3713107507
11
COUPLING PINTO 371 310 79 37
11
COUPLING PIN ,B 981820
14
LOCKING SPRING TOP,B 981820
17
LOCKING SPRING BOTTOM
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
23
SCREW BRACKET TO FRAME M 12X35
23
SCREW BRACKET TO SIDE MEMBER
23
SCREW , Replaced By: N304017010002
23
SCREW ENGINE SUPPORT TO SIDE MEMBERS M 12X40
26
NUT , Replaced By: N910113012003
26
NUT , Replaced By: N910113010000
26
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
29
REAR SUBFRAME (FRONT SPRING BRACKET),REAR
29
REAR SUBFRAME , Replaced By: A6883207070
32
CROSS MEMBERNO.2,D 012825
35
SCREW , Replaced By: N304017010040
38
NUT , Replaced By: N910113010000
41
CROSS MEMBERNO.3
44
CROSS MEMBERNO.3 , 4,B 984610
44
CROSS MEMBER PROPELLER SHAFT BEARING NO.4,B 984609
47
CROSS MEMBER REAR SPRING FRONT BRACKET NO. 4
50
BRACKET
53
BRACKET
56
SPRING BRACKET (REAR SPRING BRACKET),FRONT
59
CROSS MEMBER SHOCK ABSORBER NO.6
62
CROSS MEMBER SHOCK ABSORBER NO.7
68
BRACKET HELPER SPRING
68
BRACKET HELPER SPRING
71
SPRING BRACKET (REAR SPRING BRACKET),REAR M18X1,5 MM
77
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
77
RIVET10X28 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET REAR CROSS MEMBER 12X42 MM
77
RIVET12X45 MM
77
RIVET14X40 MM
77
RIVET14X42 MM
77
RIVET FRAME TRUSS TO SIDE MEMBER
77
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET CROSS MEMBER TO SIDE MEMBERS 10X30 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET10X36 MM
77
RIVET10X48 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
77
RIVET REFLECTOR TO BRACKET
77
RIVET CONSOLE TO SIDE MEMBER
77
RIVET10X34 MM
999
CROSS MEMBERNO. 3
